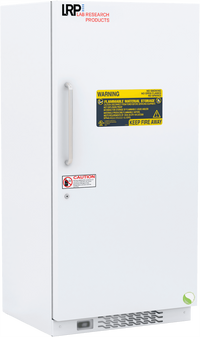

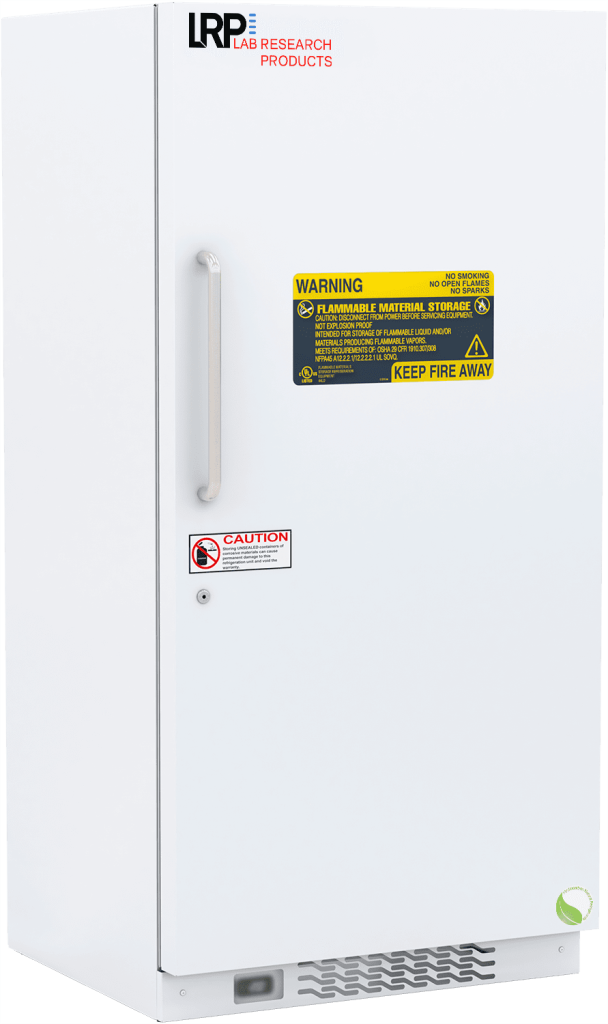

Lab Research Product - LRP-HC-FRCS-30 - 30 Cu. Ft. Standard Flammable Storage Refrigerator/Freezer Combination Unit

Lab Research Product - LRP-HC-FRCS-30 - 30 Cu. Ft. Standard Flammable Storage Refrigerator/Freezer Combination Unit
Lab Research Product - LRP-HC-FRCS-30 - 30 Cu. Ft. Standard Flammable Storage Refrigerator/Freezer Combination Unit

Lab Research Product - LRP-HC-FRCS-30 - 30 Cu. Ft. Standard Flammable Storage Refrigerator/Freezer Combination Unit

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
This standard flammable storage refrigerator/freezer combination unit offers a secure solution for storing volatile materials in laboratory and industrial settings.

Features

This model meets NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. Its temperature control is powered by microprocessor technology for improved temperature precision and uniformity. A series of audible and visual alarms safeguards stored contents for added protection. Utilizing hydrocarbon refrigerants, this unit also meets EPA SNAP compliance, protecting environmental safety. With low energy consumption and high safety standards, this model is an efficient and dependable solution for the safe storage of flammable substances.

Specifications

Overview

  • Nominal Height:
    72.5" (184.15 cm)
  • Nominal Width:
    35.75" (90.81 cm)
  • Nominal Length:
    35.5" (90.17 cm)
  • Internal Height:
    65" (165.1 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    30

General Description and Application

  • Door:
    One (1) solid swing, right hinged, stainless steel door handle, magnetic door gasket

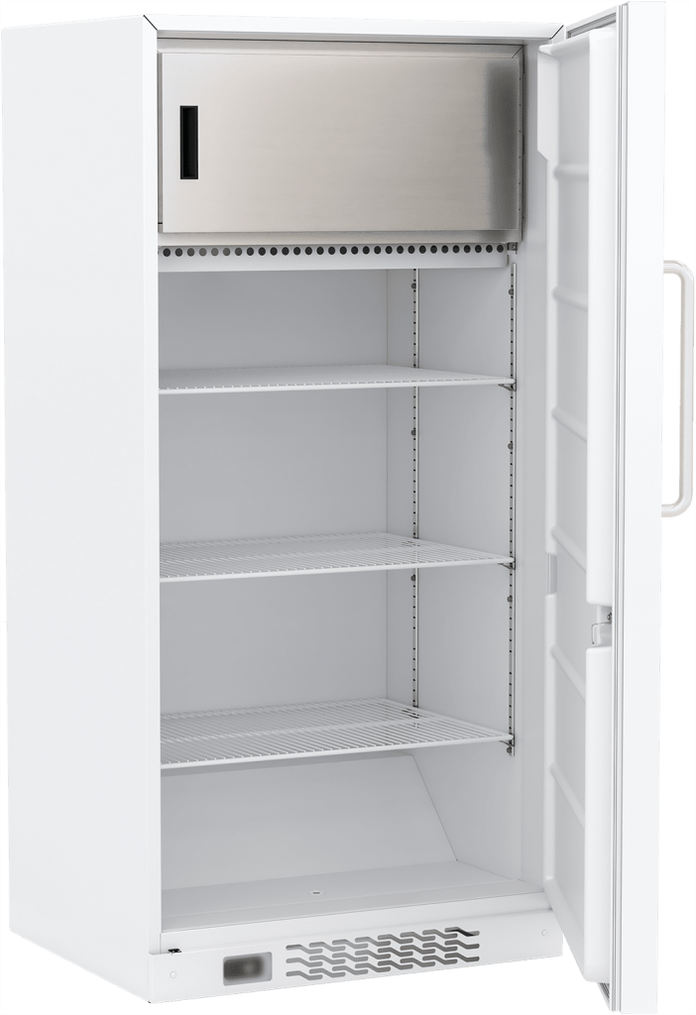

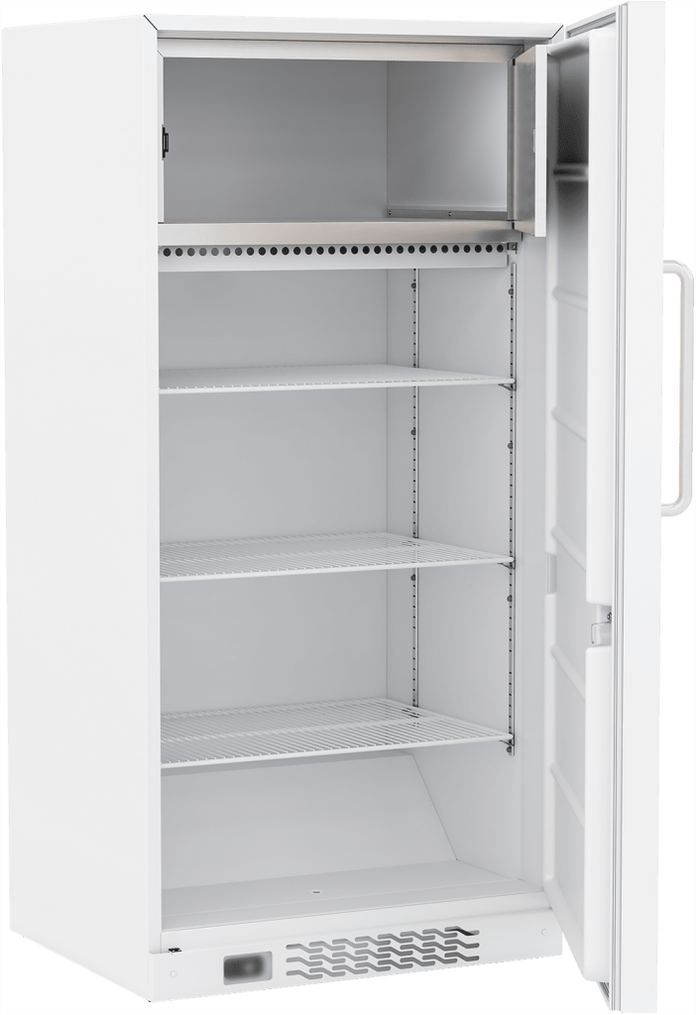

  • Interior:
    One (1) inner door (freezer)
  • Shelves:
    Three (3) adjustable wire shelves (refrigerator)
  • Mounting and Installation:
    Leveling legs
  • External Probe Access:
    Two (2) 3/4" probe access port on rear wall
  • Insulation:
    EPA compliant high density urethane foam
  • Exterior Materials:
    Powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Five (5) year compressor warranty
  • Product Weight (lbs):
    353
  • Shipping Weight (lbs):
    383
  • Rated Amperage:
    3 Amps
  • Power Plug/Power Cord:
    NEMA 5-15P plug, 6 ft long cord
  • Facility Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification:
    UL listed per UL 60335-1 and UL 60335-2-89 standards, c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45

Performance

  • Freezer Maximum Temperature Variation:
    +/- 4.5°C
  • Refrigerator Maximum Temperature Variation:
    +/- 2.5°C
  • Freezer Temperature Range:
    -15°C to -20°C
  • Refrigerator Temperature Range:
    0°C to 8°C
  • Pull Down Time to Nominal Operating Temp:
    90 min (empty)
  • Energy Consumption (kWh/day):
    4 kWh/day
  • Average Heat Rejection (BTU/hr):
    570 BTU/hr

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R290 propane
  • Condenser:
    Static - exterior walls of cabinet with auxiliary fan
  • Evaporator:
    Evaporator shelves
  • Defrost:
    Manual defrost
