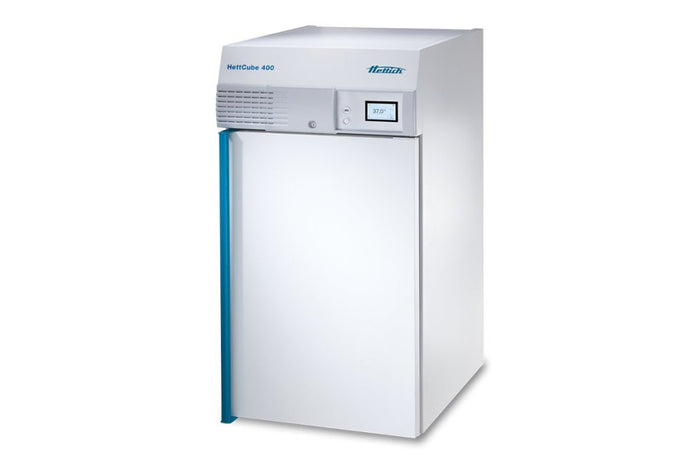

Hettich - 64005-01 - Hettcube 400R Cooled Incubator 10.95 Cu. Ft.

Hettich - 64005-01 - Hettcube 400R Cooled Incubator 10.95 Cu. Ft.

Hettich - 64005-01 - Hettcube 400R Cooled Incubator 10.95 Cu. Ft.

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

Hettcube 400R 10.95 cubic ft.

Features

Enhancing lab space efficiency



Environmentally friendly, economical and well designed.



With its volume and wide range of accessories the HettCube 400 incubator is well suited for all pharmaceutical and research applications.



Highlights



  • Maximal validated usable space on a small footprint
  • One-hand operation without additonal inner door
  • 4.3 inch touch displayfor intuitve operation
  • Automatic door closure with magnetic seals, door orientation can be easily changed
  • Low noise level of ≤ 44 dB(A)
  • TÜV certified
  • Factory certificate HettCert with 9 measuring points according to DIN 12880:2007-5 standard
  • HettCube without cooling requires only 1°K (1 °C) above stable ambient temperature
  • No interior fan
  • Model variants with IVDR approval incluiding DIN 62304 standard
  • Inclusive: 3 standard shelves and 1 HTS shelf with telescopic rail

Additionally for cooled models

  • Temperature drop with holiday function
  • Temperature selection monitor class 3.2
  • Easy integration of external devices via the switchboard (optional)



Feature



  • At a glance display of: settings, future programs and target/actual values, temperaure drops, events
  • real-time calender
  • More individual settings: Flexible door alarm, asymmetric tolerance band
  • Three different power failure scenarios
  • Logbook: records of every door opening, events, alarms and operating hours
  • Language options EN, DE, FR, ES
  • Wide range of program functions: Start after time, start after temperature, standstill segment
  • Programs and temperature settings transferable to other HettCubes without additional software
  • Interior made of high-quality stainless steel

Special accessories

  • Shelfs and racks for storage of samples
  • Special accessories: Shelf for Petri Dishes
  • Special accessories: Tightly welded HTS drawers (various heights)



Areas of applications



Clinical microbiology, clinical monitoring



Clinical specimen taken from patients or obtained in the course of hygienic monitoring of hospitals are incubated to identify bacteria, fungi, and yeast.



Facilities



  • Microbiological labs
  • Hospital labs



Watch the video

Specifications

Overview

  • Nominal Height:
    56" (142.24 cm)
  • Nominal Width:
    28" (71.12 cm)
  • Nominal Length:
    32.5" (82.55 cm)
  • Internal Height:
    33.5" (85.09 cm)
  • Internal Width:
    21" (53.34 cm)
  • Internal Length:
    27" (68.58 cm)
  • Capacity:
    10.95

Technical Data

  • Temperature Range:
    0°C up to +65°C
  • Exterior Dimensions (without Bushing and Door Handle) W x D x H in mm:
    710 x 825 x 1425
  • Interior Dimensions W x D x H in mm:
    535 x 690 x 850
  • Internal Volume in Liters:
    310
  • Validated Usable Volume in Liters:
    199
  • Percentage Validated Usable Volume / Internal Volume:
    64%
  • Footprint in m²:
    0.6
  • Weight in kg:
    128
  • Number of Trays Provided as Standard:
    3 (2 standard + 1 HTS)
  • Temperature Fluctuation at +37°C:
    ± 0.1 K
  • Temperature Uniformity at +37°C:
    ± 0.2 K
  • Temperature Uniformity at +25°C:
    ± 0.1 K
  • Recovery Time after Door has been Opened for 30s at +37°C:
    ≤ 4.5 min
  • Energy Consumption at +37°C:
    0.046 kWh/h
  • Noise Level:
    ≤ 44 dB (A)
  • Power Supply:
    100-120 V 1 ~ / 50 - 60 Hz
