Hettich - 46ASTM-100D - Rotofix 46 Benchtop Centrifuge, ASTM Package 100D
Features

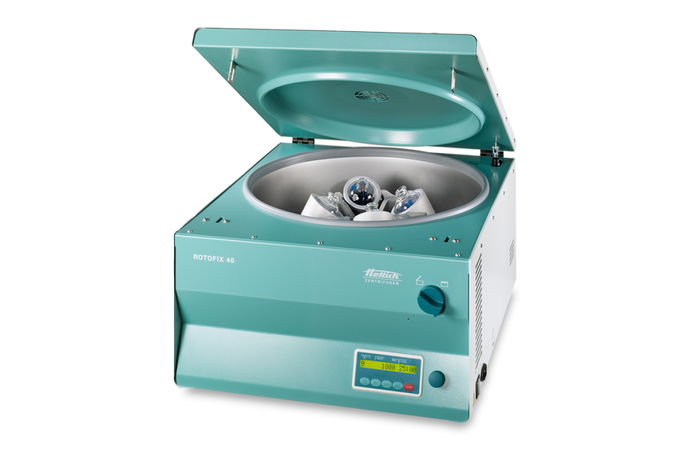

The ROTOFIX 46 ASTM Package 100D comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
Robust & heated industrial unit
This centrifuge is ideal for research and industrial laboratories, known for their robustness and ability to withstand intensive use, including field applications. They feature specialty buckets designed to accommodate ASTM pear-shaped and conical tubes used in petroleum testing. The H model is a heated unit that can achieve chamber temperatures up to +90 °C.
Areas of applications
Industry
Specially designed glass tubes with graduation are centrifuged to measure the content of water or solid particles in crude oil and fuels.
Facilities
- Petrochemical labs
- Automobile industry
- Chemical labs
Specifications
Overview
Technical Data
-
Voltage: 100 - 127 V 1 ~;Frequency: 50 - 60 Hz;Consumption: 500 VA;Emission, Immunity: FCC class B;Max. Capacity: 4 x 290 ml;Max. RPM: 4,000 min-1;Max. RCF: 3,095;Running Time: 1 - 99 min 59 sec, ∞ continuous run, short cycle mode (impulse button);Dimensions (W x D x H): 538 x 647 x 345 mm;Weight: approx. 60 kg;Noise Level: 50 dB (A) with rotor 4619:
ASTM Package - 100D
-
Tube Qty.:4
-
Volume (ml):100
-
Size (mm):45 x 165
-
RPM:≤ 2,000
-
RCF:≤ 961

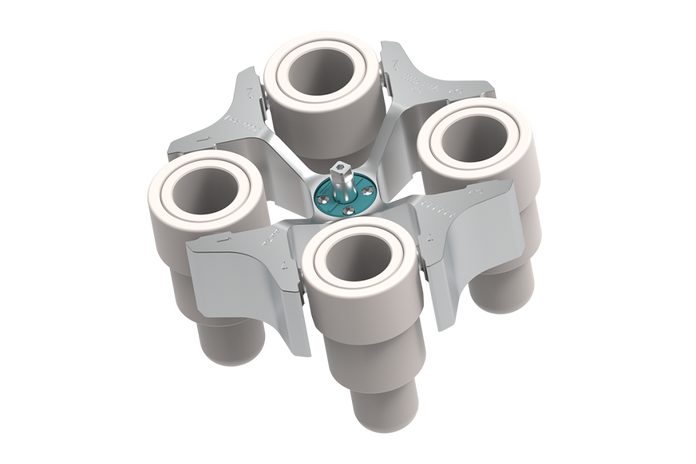

Swing-out Rotor, 4-Place
-
Max. RCF:984
-
Max. RPM:2,000 min-1
-
Max. capacity:4 x 100 ml
-
Angle:90°
-
Cat.No.:4474+4275+4277
