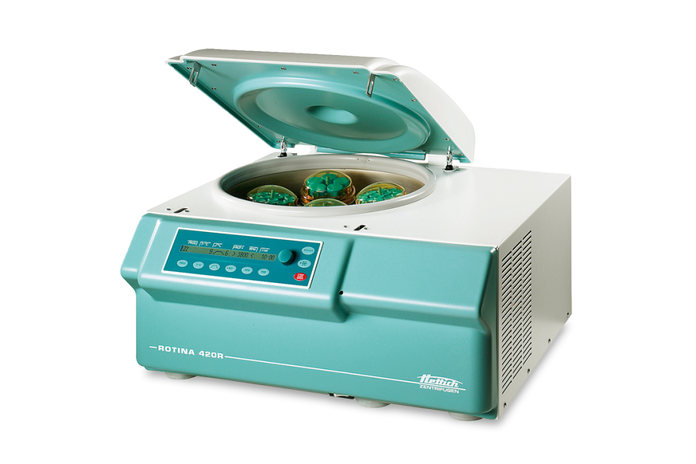

Hettich - 420RCELLCULTURE4-BC - Rotina 420R Benchtop Centrifuges, Cell Culture Package 4 (Bio-Containment)
Features
The ROTINA 420 Cell Culture Package 4 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420R centrifuge, swing-out rotor, buckets and adapters for 15 mL and 50 mL tubes and bio-containment lids. Many a-la-carte options are also available.
This compact benchtop centrifuge has been developed for large sample volumes. The R model is equipped with a cooling unit to reach temperatures from -20°C to +40°C.
It has a maximum capacity of 4 x 600 ml bottles, 140 blood tubes, 16 microtiter plates or 52 x 15 ml conical tubes, all on a single cost-effective rotor.
Best conditions for your application
Single-hand clamp lock for easy loading, unloading, transport and sealing.
The new generation of carrier buckets from the ROTINA 420 features an integrated handle to provide you with a convenient method for transporting and loading your samples while doubling as a locking mechanism for your bio-containment lids.
Highlights
- max. capacity: 4 x 600 ml
- High-performance with fi rst-class equipment
- choice of 5 rotors
- IVDR-conform according to regulation (EU) 2017/746
- max. noise level of 51 dB(A) with rotor 4790-A
- easy operation with keypad and control knob
- 98 program memories for more individuality
- 9 individual acceleration and 10 deceleration stages
- model 420 R coolable from -20 to +40 °C with pre-cooling function
Features
- metal housing and lid
- viewing port in the lid
- powered one-hand lid lock
- lid dropping protection
- emergency lid lock release
- stainless steel chamber
- automatic rotor recognition
- brushless drive
- error display
- display in °C and °F possible
- imbalance monitoring and switch-off
- backlit panel with actual values of all parameters
- Auditory message after completion of the centrifugation run
Areas of applications
Clinical chemistry, Hematology, Serology
HTP centrifuge suitable for large laboratories such as blood banks or high-throughput clinical labs.
Research and Industry, Cell culture, Assays
One rotor fits multiple flasks, bottles and plates, offering many options for cell culture and/or solid phase assays.
Facilities
- Hospitals
- Hematological labs
- Blood centers
- Veterinary labs
- Pharmaceutical labs
- Food analyzing labs
- Scientific labs in universities
Specifications
Overview
Technical Data
-
Voltage: 100 - 127 V 1 ~;Frequency: 50 - 60 Hz;Consumption: 1,850 VA;Emission, Immunity: FCC class B;Max. Capacity: 4 x 600 ml;Max. RPM: 15,000 min⁻¹;Max. RCF: 24,400;Running Time: 1 - 99 h 59 min 59 s, ∞ continuous run, short cycle mode;Dimensions (W x D x H): 506 x 650 x 423 mm;approx. 117 kg;Noise Level: 50 dB (A) with rotor 4790-A;Temperature Control, Infinitely Variable: from -20 to +40°C:
Cell Culture Package - 4 - Bio-Containment
-
Tube Qty.:52 | 20
-
Volume (ml):15 Conical | 50 Conical
-
Size (mm):17 x 120 | 29 x 115
-
RPM:≤ 4,800
-
RCF:≤ 4,740 | ≤ 4,688

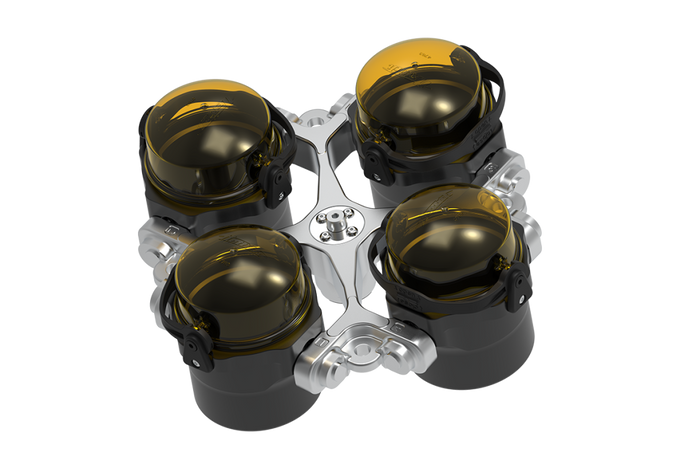

Swing-out Rotor, 4 - Place
-
Max. RCF:4,800
-
Max. RPM:4,740 min-1
-
Max. Capacity:4 x 600 ml
-
Angle:90°
-
Standard Equipment:Incl. Bio-Containment lid
-
Cat.No.:4784-A+4780+4783
