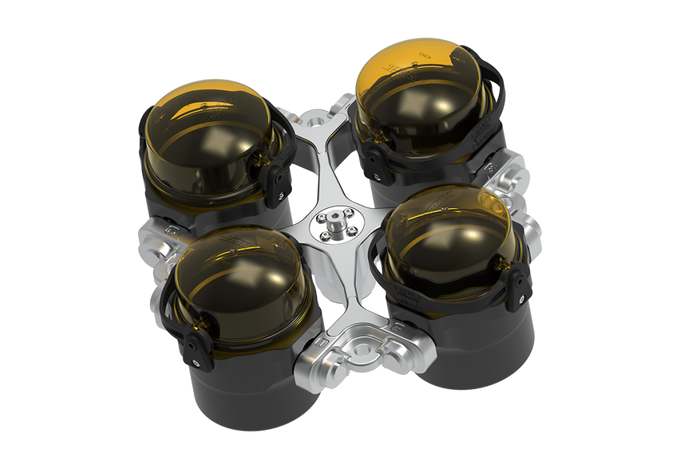

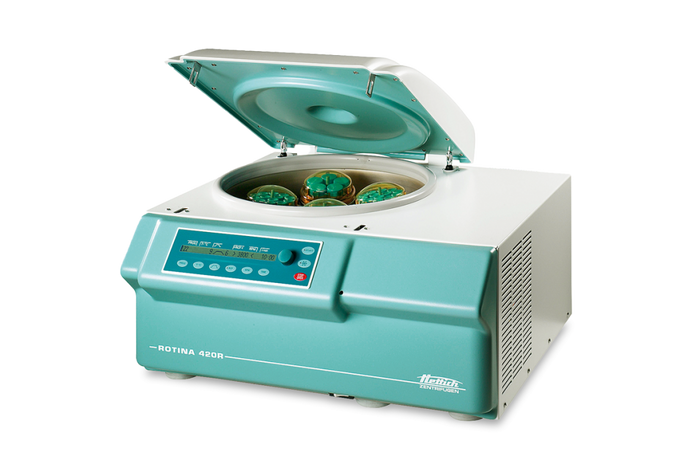

The ROTINA 420 Bottle Package BC comes complete with everything you need to perform your application. This includes the ROTINA 420 centrifuge, swing-out rotor, buckets and adapters and bio-containment lids. Many a-la-carte options are also available.

This compact benchtop centrifuge has been developed for large sample volumes. The R model is equipped with a cooling unit to reach temperatures from -20°C to +40°C.

It has a maximum capacity of 4 x 600 ml bottles, 140 blood tubes, 16 microtiter plates or 52 x 15 ml conical tubes, all on a single cost-effective rotor.

Best conditions for your application

Single-hand clamp lock for easy loading, unloading, transport and sealing.

The new generation of carrier buckets from the ROTINA 420 features an integrated handle to provide you with a convenient method for transporting and loading your samples while doubling as a locking mechanism for your bio-containment lids.

Highlights

• max. capacity: 4 x 600 ml
• High-performance with fi rst-class equipment
• choice of 5 rotors
• IVDR-conform according to regulation (EU) 2017/746
• max. noise level of 51 dB(A) with rotor 4790-A
• easy operation with keypad and control knob
• 98 program memories for more individuality
• 9 individual acceleration and 10 deceleration stages
• model 420 R coolable from -20 to +40 °C with pre-cooling function

Features

• metal housing and lid
• viewing port in the lid
• powered one-hand lid lock
• lid dropping protection
• emergency lid lock release
• stainless steel chamber
• automatic rotor recognition
• brushless drive
• error display
• display in °C and °F possible
• imbalance monitoring and switch-off
• backlit panel with actual values of all parameters
• Auditory message after completion of the centrifugation run

Areas of applications

Clinical chemistry, Hematology, Serology

HTP centrifuge suitable for large laboratories such as blood banks or high-throughput clinical labs.

Research and Industry, Cell culture, Assays

One rotor fits multiple flasks, bottles and plates, offering many options for cell culture and/or solid phase assays.

Facilities

• Hospitals
• Hematological labs
• Blood centers
• Veterinary labs
• Pharmaceutical labs
• Food analyzing labs
• Scientific labs in universities
