The ROTINA 420 Cell Culture Package 2 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 15 mL and 50 mL tubes and bio-containment lids. Many a-la-carte options are also available.

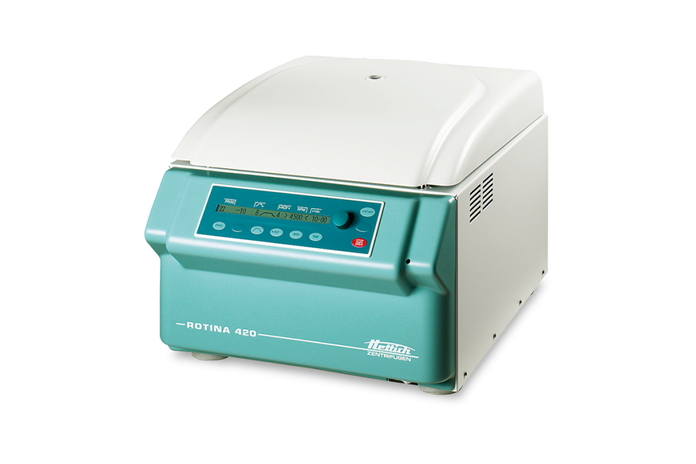

This compact benchtop centrifuge has been developed for large sample volumes. It has a maximum capacity of 4 x 600 ml bottles, 140 blood tubes, 16 microtiter plates or 52 x 15 ml conical tubes, all on a single cost-effective rotor.

Best conditions for your application

Single-hand clamp lock for easy loading, unloading, transport and sealing.

The new generation of carrier buckets from the ROTINA 420 features an integrated handle to provide you with a convenient method for transporting and loading your samples while doubling as a locking mechanism for your bio-containment lids.

Highlights

• RPM: 50 - 15,000 min -1. Adjustable in increments of 10
• RCF: 50 - 24,400. Adjustable in steps of 1
• Max. capacity: 4 x 600 ml
• High-performance with fi rst-class equipment
• Choice of 5 rotors
• IVDR-conform according to regulation (EU) 2017/746
• Max. noise level of 51 dB(A) with rotor 4790-A
• Easy operation with keypad and control knob
• 98 program memories for more individuality
• 9 individual acceleration and 10 deceleration stages
• Model 420 R coolable from -20 to +40 °C with pre-cooling function

Features

• Metal housing and lid
• Viewing port in the lid
• Powered lid lock
• Lid dropping protection
• Emergency lid lock release
• Stainless steel chamber
• Automatic rotor recognition
• Brushless drive
• Error display
• Display in °C and °F possible
• Imbalance switch-off
• Backlit panel with actual values of all parameters
• Auditory message after completion of the centrifugation run

Areas of applications

Clinical chemistry, Hematology, Serology

HTP centrifuge suitable for large laboratories such as blood banks or high-throughput clinical labs.

Research and Industry, Cell culture, Assays

One rotor fits multiple flasks, bottles and plates, offering many options for cell culture and/or solid phase assays.

Facilities

• Hospitals
• Hematological labs
• Blood centers
• Veterinary labs
• Pharmaceutical labs
• Food analyzing labs
• Scientific labs in universities
