Superior separation results in medical applications.

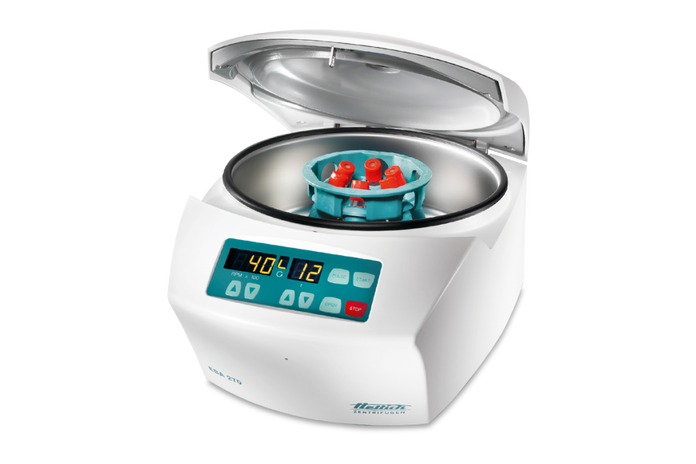

The EBA 270 is a small centrifuge with a swing-out rotor that has been developed specifically for use in clinical settings. It can centrifuge the blood tubes and urine tubes up 15 ml in volume at a maximum speed of 4,000 RPM / 2,254 RCF. Its 90° rotor is ideally suited for spinning blood tubes containing a separating gel.

Highlights

• Max. RPM 500 - 4,000 min -1 Adjustable in increments of 100
• Max. RCF 2,254
• Max. capacity 6 x 15 ml
• Small centrifuge including 6-place swing-out rotor - compact design
• IVDR-conform according to regulation (EU) 2017/746
• Maximum noise level of ≤ 51 dB(A)
• Impulse key for short cycle mode
• 2 individual deceleration stages
• Easy operation with keypad

Features

• Plastic housing
• Metal lid
• Viewing port in the lid
• One-hand lid lock
• Lid dropping protection
• Emergency lid lock release
• Light alloy chamber
• Brushless drive
• Error display
• Imbalance monitoring and switch-off
• Backlit panel with actual values of all parameters
• Audio message after completion of the centrifugation run

Areas of applications

Clinical

The built in swing-out rotor 6-places is perfect for blood collection tubes containing gel.

Facilities

• Small laboratories
• Physician’s Office Laboratory (POL)
