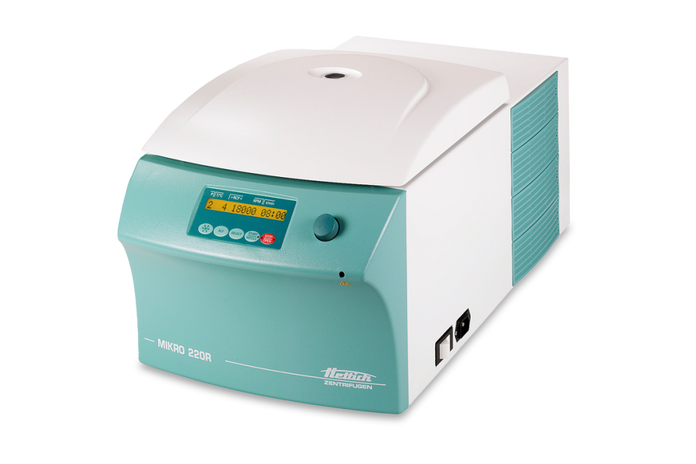

Hettich - 220RCELLCULTURE - Mikro 220R Microlitre Centrifuge, Cell Culture Package

Hettich - 220RCELLCULTURE - Mikro 220R Microlitre Centrifuge, Cell Culture Package
Hettich - 220RCELLCULTURE - Mikro 220R Microlitre Centrifuge, Cell Culture Package

Hettich - 220RCELLCULTURE - Mikro 220R Microlitre Centrifuge, Cell Culture Package

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Includes: (1) Mikro 220R centrifuge, (1) fixed-angle rotor, (6) adapters 15mL, (3) adapters 50 ml.

Features

The MIKRO 220 Cell Culture Package comes complete with everything you need to perform your application. This includes the MIKRO 220 or MIKRO 220 R centrifuge, fixed-angle rotor and adapters for 15 and 50 mL tubes. In addition to this package, many a-la-carte options are available.


Fast and flexible


The MIKRO 220 R spins at an unmatched speed of 18,000 RPM and delivers an RCF of 31,514 in just 26 seconds. It offers flexibility with a choice of 8 different rotors, accommodating tube sizes from 0.2 ml microliters to 50 ml conical tubes, enabling numerous research applications on a single machine.

The MIKRO 220 R is equipped with refrigeration and offers a temperature range from -20 °C to +40 °C.


Facilities


  • Hospitals
  • Paediatric hospitals
  • Blood centers
  • Pharmaceutical hospitals
  • Food analyzing labs
  • Scientific labs in universities
  • Forensic labs
  • Paternity testing labs

Highlights


  • RPM 500 - 18,000 min -1. Adjustable in increments of 10
  • Max. RCF 31,514
  • Max. capacity 60 x 2.0 ml
  • Compact, high-performance microlitre centrifuge
  • Choice of 8 rotors
  • IVDR-conform according to regulation (EU) 2017/746
  • Noise level of ≤ 54 dB (A) with rotor 1252-A
  • Impulse key for short cycle mode
  • Easy operation with keypad and control knob
  • 9 program memories for more individuality
  • 9 individual acceleration and deceleration stages
  • Model 220 R coolable from -20 to +40 °C with pre-cooling function

Features


  • Metal housing and lid
  • Viewing port in the lid
  • powered lid lock
  • Lid dropping protection
  • Emergency lid lock release
  • Stainless steel chamber
  • Automatic rotor recognition
  • Brushless drive
  • Error display
  • Display in °C and °F possible
  • Imbalance switch-off
  • Backlit panel with actual values of all parameters
  • Auditory message after completion of the centrifugation run

Areas of applications


Clinical


Spin pediatric tubes in a small compact footprint as well as PCR mini kits including spin columns up to 31,514 RCF and lipemic samples with a g-force of 21,185 at a fraction of the cost of an ultracentrifuge.


Industry and research


Spin PCR Mini Kits including spin columns and microliter tubes to sediment subcellular particles or bacteria.


Specifications

Overview

Technical Data

  • Voltage: 100 - 127 V 1 ~;Frequency: 60 Hz;Consumption: 950 VA;Emission, Immunity: FCC class B;Max. Capacity: 48 x 1.5 / 2.0 ml, 6 x 50 ml;Max. RPM: 18,000 min-1;Max. RCF: 31,514;Running Time: 1 - 99 min 59 s, ∞ continuous run, short cycle mode (impulse button);Dimensions: 335 x 650 x 313 mm;Weight: approx. 42 kg;Noise Level: ≤ 59 dB (A) with rotor 1016;Temperatur Control, Infinitely Variable: from -20 to +40°C:

Cell Culture Package

  • Tube Qty.:
    6 | 3
  • Volume (ml):
    15 | 50
  • Size (mm):
    17 x 120 | 29 x 115
  • RPM:
    ≤ 6,000
  • RCF:
    ≤ 3,824

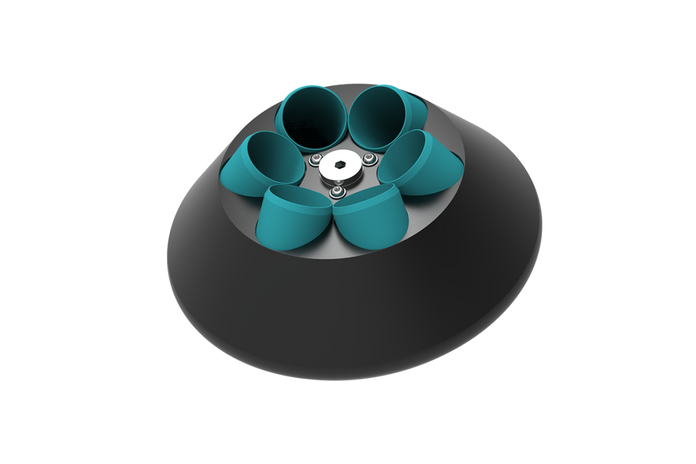

Angle Rotor, 6-place

  • Max. RCF:
    4,025
  • Max. RPM:
    6,000 min-1
  • Max. capacity:
    6 x 50 ml
  • Angle:
    35°
  • Cat.No.:
    1016
