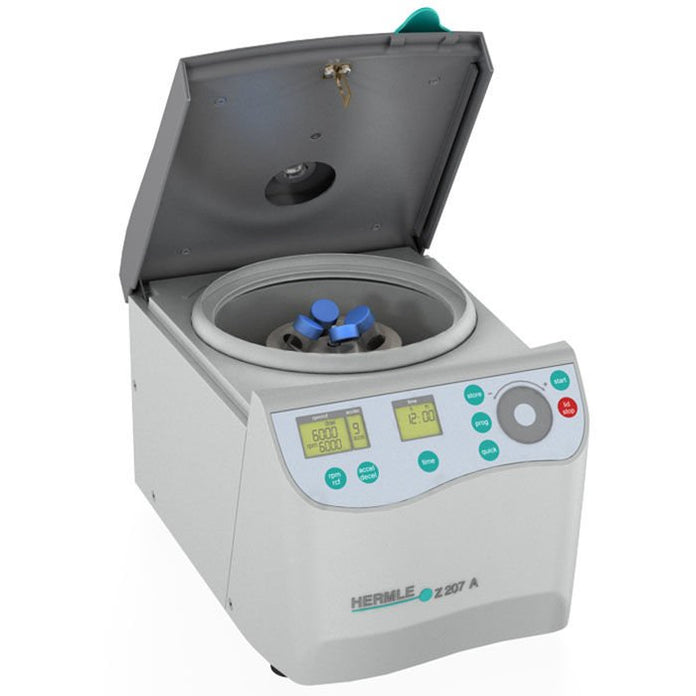

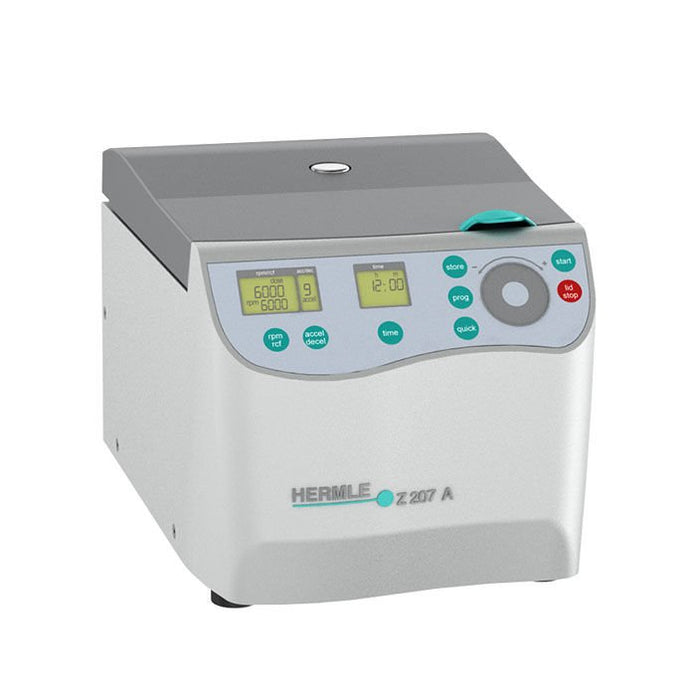

Hermle - Z207-A-CMB-E - Compact Centrifuge Combination Rotor, 230V
Features
Features and Functions
- Microprocessor with large LCD display
- Electrical lid lock
- Quick access to samples
- Active imbalance identification and cut-off
- Air cooling
- Quick acceleration and deceleration
- Noise level < 60 dBA at max speed
- Easy removal of rotor, without tools
- Manufactured in accordance with International Safety Regulations (IEC 61010)
Display Functions
- Control panel with Touch-Operation
- Simple one-handed operation
- Glove-friendly
- Splash-proof foil keyboard
- Permanent indication of preset and actual values
- Selection of speed in both rpm and g-force, in increments of 1
- 10 acceleration and 10 deceleration rates, with the possibility of unbraked deceleration
- Pre-selection of the running time, from 10 sec to 99 h 59 min or continuous
- Storage of up to 99 runs
- Quick-key for short runs
Specifications
Overview
-
Nominal Height:9.45" (24.0 cm)
-
Nominal Width:11.02" (27.99 cm)
-
Nominal Length:13.78" (35.0 cm)
Technical Data
-
Max. Speed:6.800 rpm
-
Max. RCF:4.445 xg
-
Max. Volume:4 x 50 ml / 4 x 15 ml conical
-
Speed Range:200 - 6.800 rpm
-
Running Time:59 min 50 s / 10 s increments, 99 h 59 min / 1 min increments
-
Weight:8 kg
-
Power Input:50 W
-
Order Number:326.00 P04 - Z 207 A, 100 - 230 V / 50 - 60 Hz, incl. combi rotor

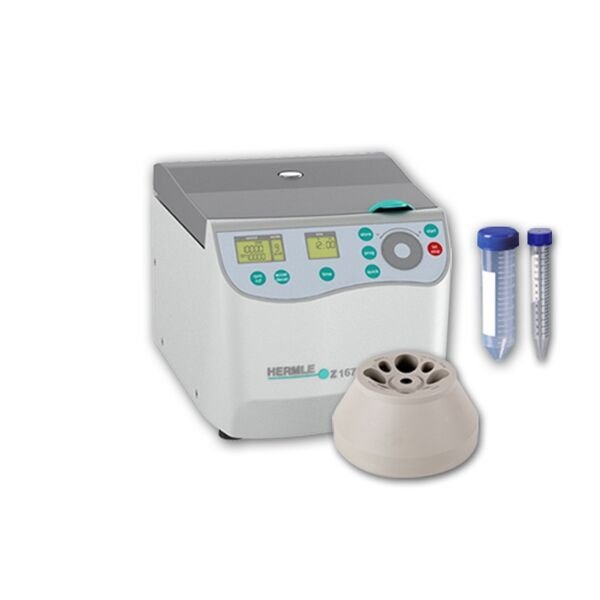

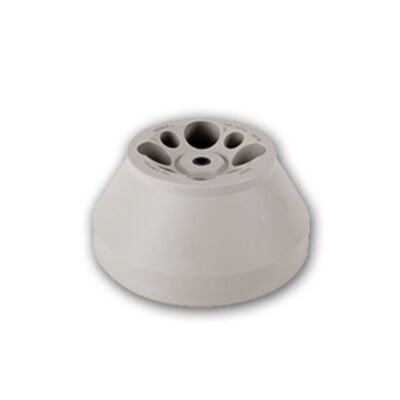

Rotor Included
-
Order No.:221.86 V01, Angle Rotor 4 x 50 ml / 4 x 15 ml
-
Angle:30°
-
Acceleration:54 / 679 s
-
Deceleration:49 / 680 s
-
Maximum Speed:6,800 rpm
-
Maximum RCF:4,445 x g
-
Maximum Radius:8.6 cm
-
Maximum Diameter:29 / 17 mm
