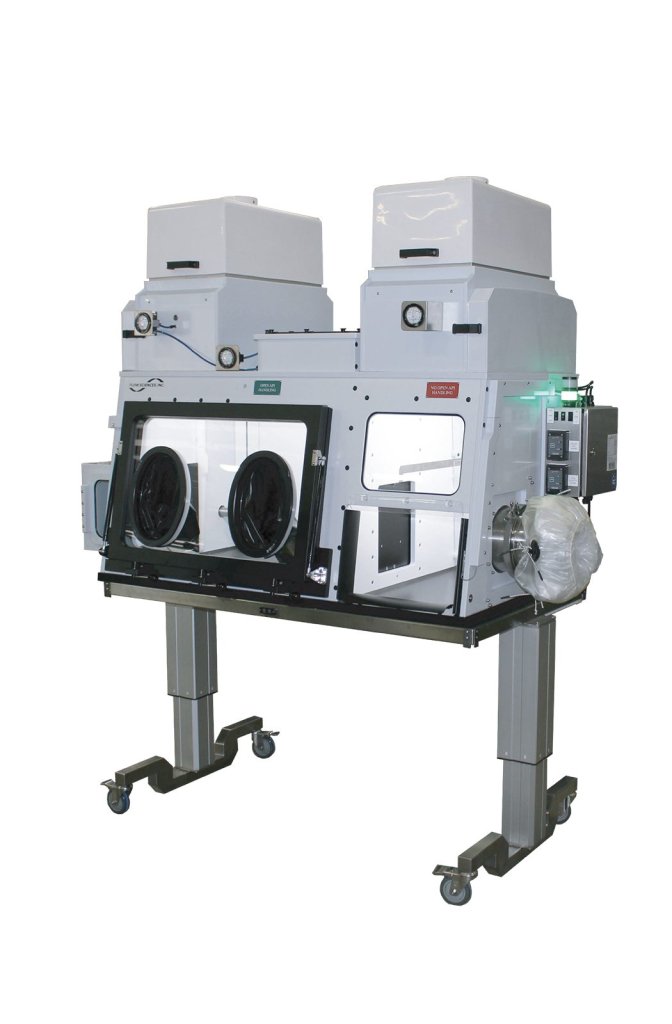

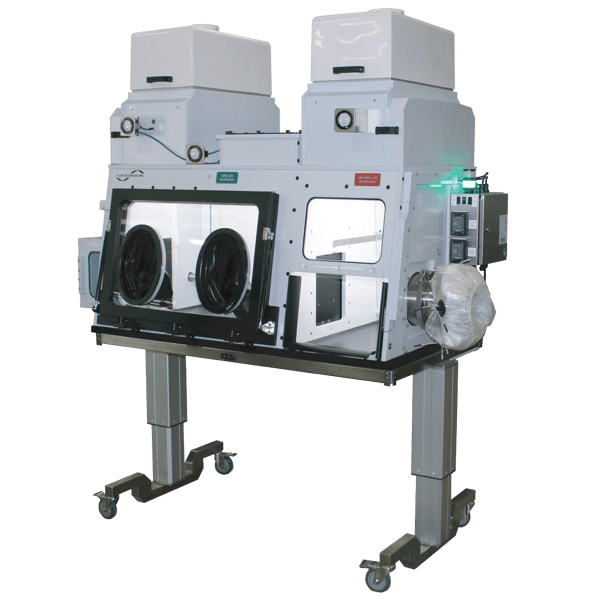

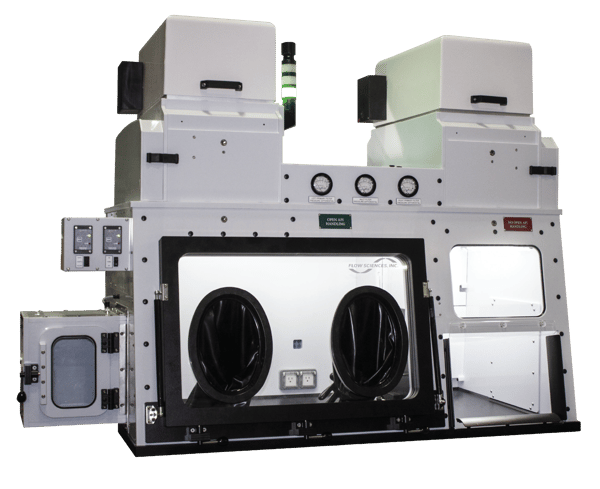

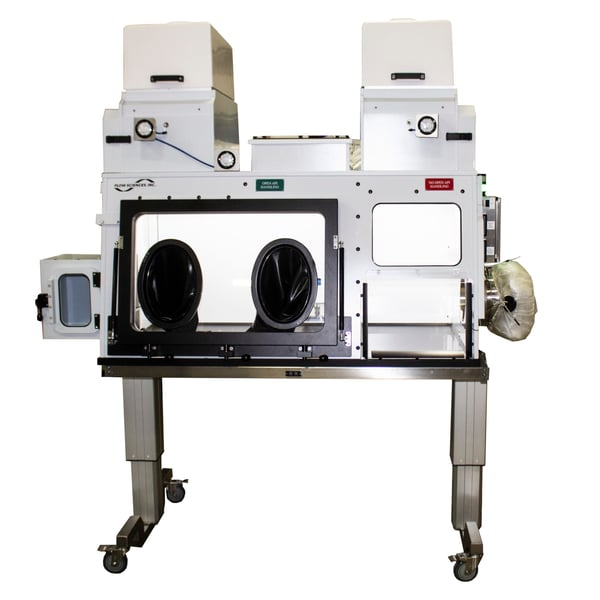

The Analytical Process Isolator (API series) provides a higher level of containment than an open faced enclosure for highly toxic APIs. FSI engineered controls assist in the prevention of containment loss. Third–party testing has proven containment to below 10 ng/m³, based on process and quantity.

Features

Continuous Process Isolator for Virus Screening & HPAPI Handling.



Our Analytical Process Isolator (API series) provides a dual containment enclosure that merges our Glovebox Workstation with our VBE. This design offers a uni-directional flow for highly toxic processes. Material enters through the pass-thru door and moves into the glovebox where the operation takes place. The VBE section provides a secondary wipe-down station for material containers or equipment before removal.



Process



The glovebox side can contain ISO 5 processes, while the VBE section allows a secondary cleaning station before removing equipment or material containers.



Containment



Third-party surrogate powder tests show exposure levels below 10 ng/m³, even with large spills, depending on quantity and potency.



Design



The glovebox provides proper containment for most lab equipment, including balances, ovens, and sieves.



Applications



This unit excels in various applications. Designed for HPAPI/API processes. Provides containment to nanogram levels based on potency.



HEPA Filtration



Equipped with a 4” HEPA inlet and dual filtration. Creates an environment exceeding ISO 5 standards. Air can be recirculated or vented out.



Structural Materials



Constructed with a polypropylene superstructure. Features a phenolic, resin-coated base. Viewing ports available in acrylic or glass.



Cleaning Station (VBE)



An open-faced environment for decontamination. Ideal for cleaning material containers. Ensures safety before complete removal.



ISO 5 Interior Workspace



Top-mounted HEPA filter ensures cleanliness. Interior meets or exceeds ISO 5 standards. Provides an optimal environment for work.



Standard Sizes



Available in widths of 5′, 6′, and 7′. Units have a depth of 36” and a height of 24″. Custom dimensions are available based on need.
