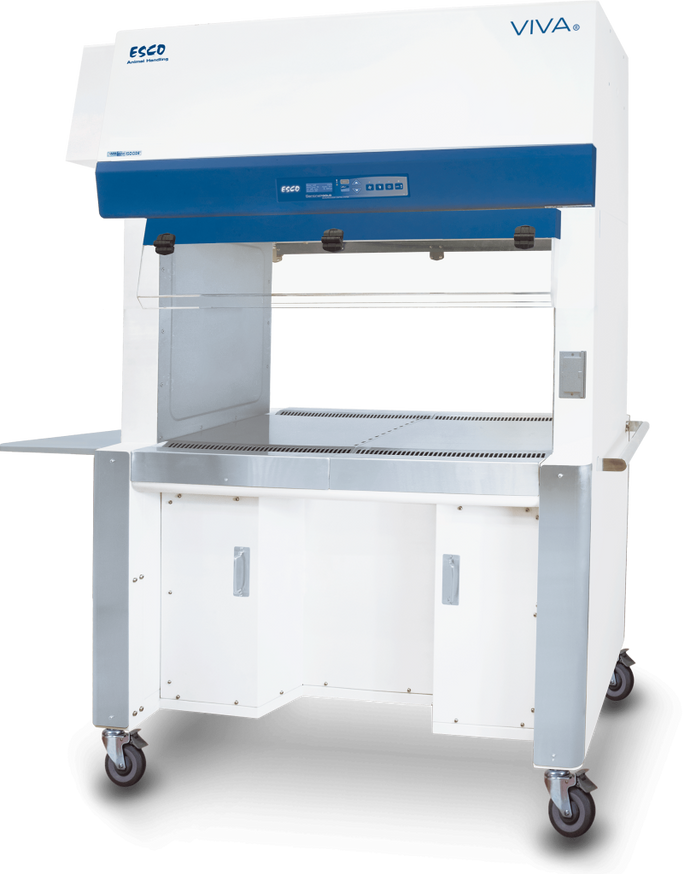

ESCO - VDA-5A9 - VIVA® Dual Access Animal Containment Workstation, 5ft/1.5m, 110-120 VAC, 50/60 Hz
Features
Esco VIVA® Dual Access Animal Workstation (VDA) offers superior allergen, microbial, and product protection with low energy consumption and noise, providing optimal comfort for the user.
The Esco VDA operates at a low noise level of 53 dBA, ensuring operator comfort and minimizing agitation for lab animals during cage transfers. It is the only cage transfer unit with legroom on both sides, allowing two operators to work comfortably simultaneously. The VDA’s internal work zone is divided by an air curtain, enabling the transfer of animals from a "dirty" area to a "clean" area.
Sentinel™ Gold Microprocessor Controller
- Displays basic parameters and safety information on one screen
- Centered and angled down for easy reach and viewing
ULPA Filter
- 10x filtration efficiency compared to HEPA filter
Easy to Clean Interior
- Easy to lift two-pieces stainless steel tray
- Drain hole on both sides to dump animal bedding.
Easy Work Access
- Hassle-free disposal
- Prevents contamination
Advanced Work Tray Design
- V-shaped grill to avoid blocking
- Center grill to separate work zone to clean and dirty area
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure.
Specifications
Overview
-
Nominal Height:88.4" (224.54 cm)
-
Nominal Width:64.7" (164.34 cm)
-
Nominal Length:30" (76.2 cm)
-
Internal Height:22.2" (56.39 cm)
-
Internal Width:55.3" (140.46 cm)
-
Internal Length:18.3" (46.48 cm)
General Specifications
-
Downflow Velocity:0.24 m/s (47 fpm)
-
Pre-Filter:Disposable and non-washable polyester fibres with 85% arrestence/EU3 rated
-
ULPA Filter Typical Efficiency:>99.999% for particle size between 0.1 to 0.3 microns, per IEST-RP-CC001.3
-
Sound Emission per EN 12469:54 dBA
-
LED Lamp Intensity at Zero Ambient:1525 lux (142 foot candles)
-
Construction, Main Body:1.5 mm (0.06") 16 gauge EG Steel with Isocide™ Oven-Baked Epoxy-Polyester Powder Coated Finish
-
Shipping Dimensions, Maximum (W x D x H):2025 x 820 x 2240 mm (79.7" x 32.2" x 88.1")
-
Shipping Weight:432 Kg (952 lbs)
-
Shipping Volume, Maximum:3.72 m³ (131.4 cu.ft.)
-
Electrical Rating-VDA-A9:110-130 VAC, 50/60 Hz, 10 A
-
Power Consumption-VDA-A9:250 W
-
Accessories-Foldable Side Tray (SS Shelf Kit):VDA-001 5170257
-
Accessories-Side Shield:VDA-005 5170563
-
Accessories-Feed Hopper:VDA-006 5170594
