Ascent® opti ductless fume hood.

Product Range

SKU Name
SPD-4B2 ESCO - SPD-4B2 - Ascent™ Opti Ductless Fume Hood with Transparent Back Wall
SPD-4A2 ESCO - SPD-4A2 - Ascent™ Opti Ductless Fume Hood
SPD-3A2 ESCO - SPD-3A2 - Ascent™ Opti Ductless Fume Hood
SPD-3B2 ESCO - SPD-3B2 - Ascent™ Opti Ductless Fume Hood with Transparent Back Wall

Features

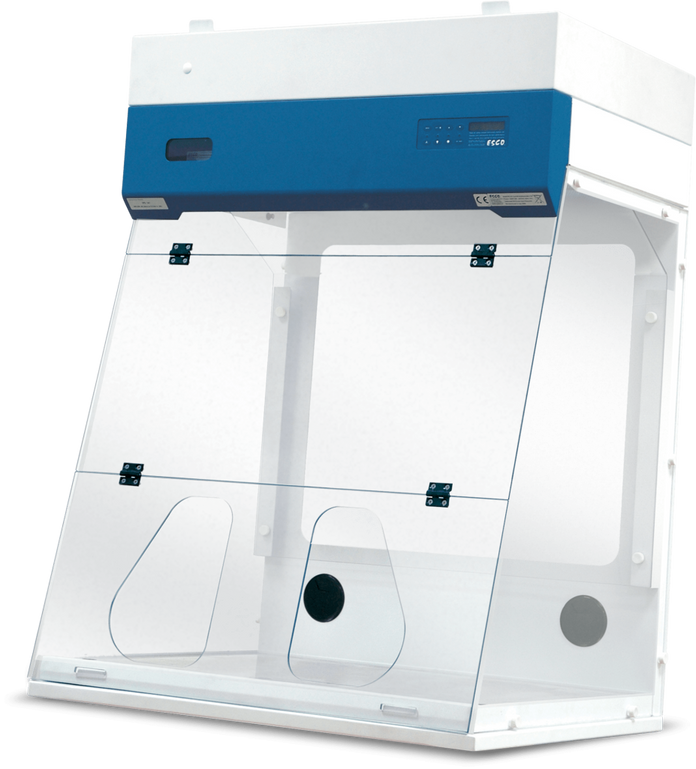

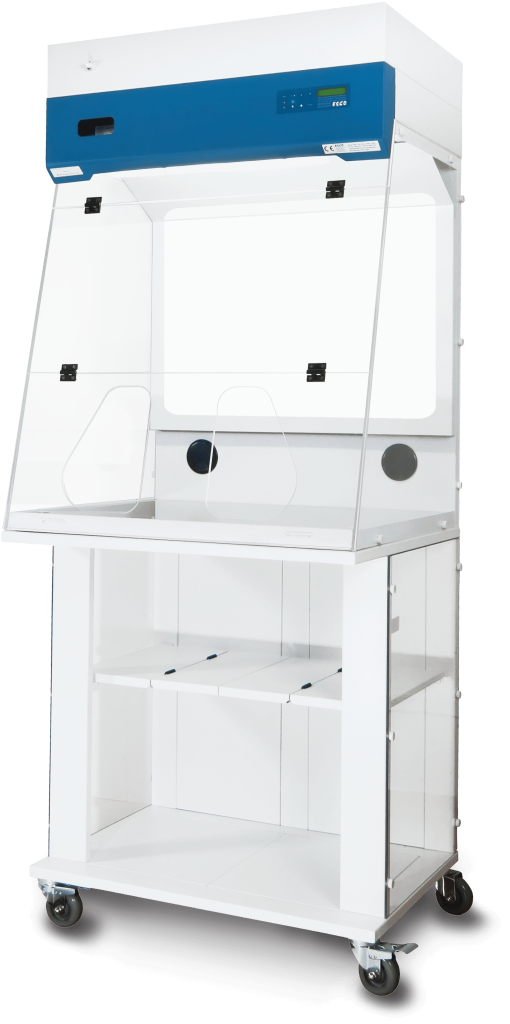

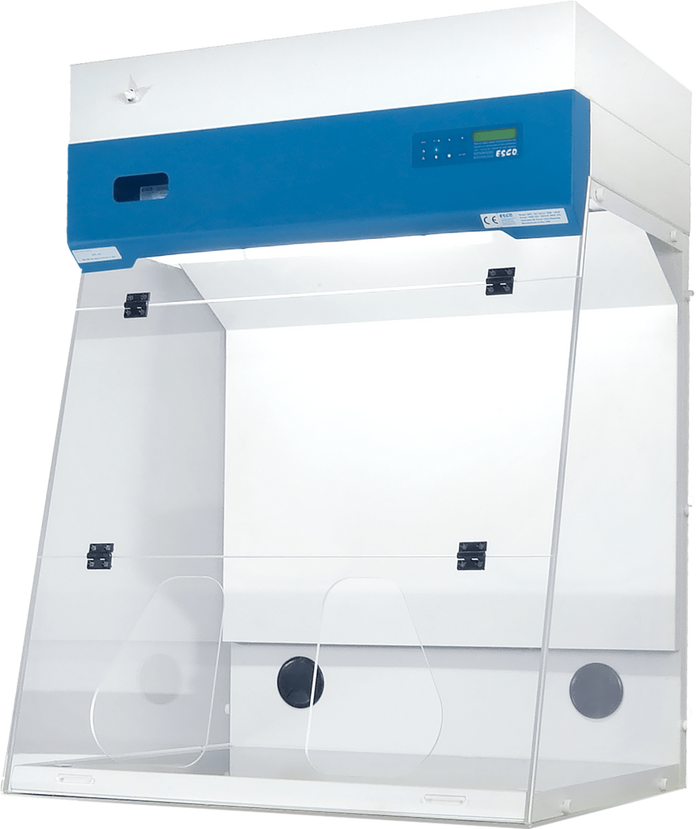

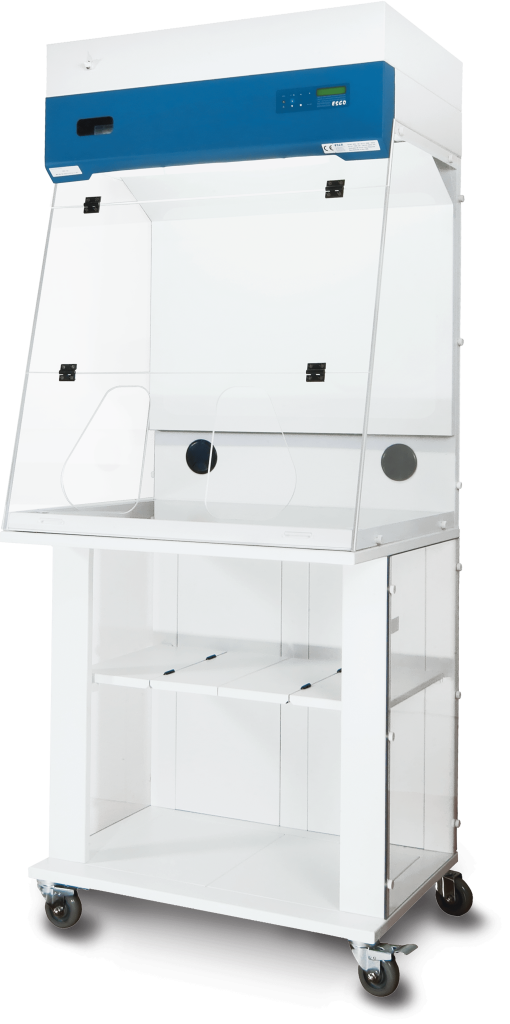

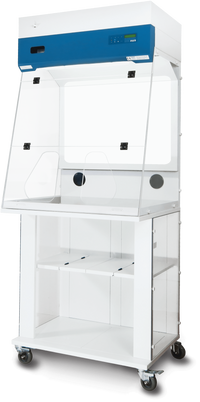

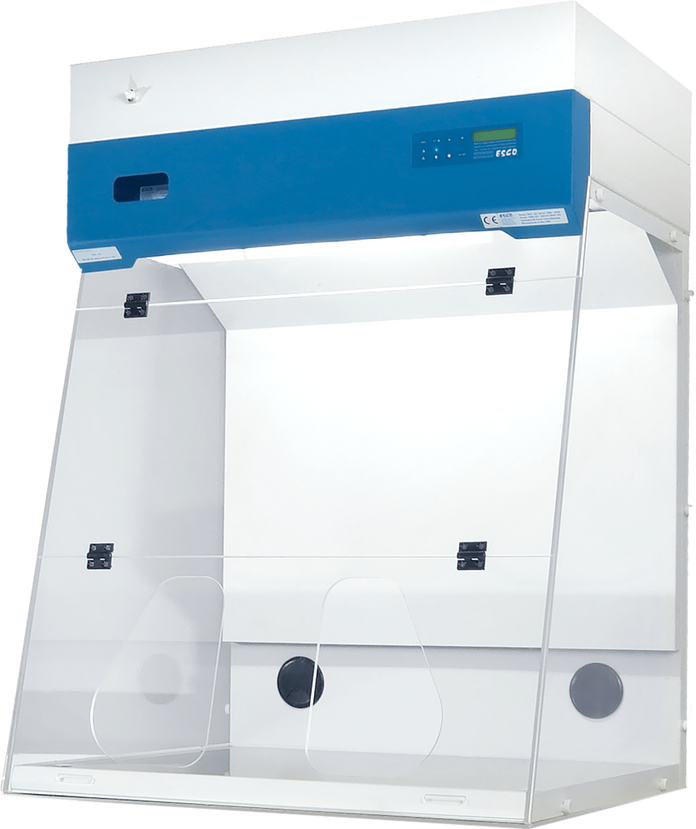

Esco Ascent™ Opti (SPD) ductless fume hood offers excellent containment and ergonomic features at a great value. This compact-sized and simplified ductless fume hood is complete with internal lighting, worktop, and microprocessor control system. It also features a double-hinged sash with arm ports that provides good working flexibility and high containment levels. SPD, designed with safety and comfort in mind, also offers substantial long-term savings with its low energy consumption.



Double-hinged sash mechanism with arm ports



  • sash with 13° sloping to help minimize glares and reflections
  • allows easy access to work zone without risking exposure from chemical fumes
  • allows higher sash opening for effortless cabinet loading



Baffles



  • Improves airflow and prevents fume accumulation in the work area.



Filtration System



  • Main Filter: Nanocarb™ Activated carbon, available in 8 types
  • Efficient perimeter clamping ensures no leakage as well as allows easy filter change procedure.



Ergonomic Features



  • Sample Port - For manual determination of filter saturation through color tubes
  • Filter ID window - to easily determine the type of carbon filter installed in the unit



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure Models

Specifications

Overview

  • Nominal Height:
    44.3" (112.52 cm)
  • Nominal Length:
    27.6" (70.1 cm)
  • Internal Height:
    33.7" (85.6 cm)
  • Internal Length:
    25.6" (65.02 cm)

  • Standard Filtration Elements - Pre-filter:
    Disposable, non washable polyester fiber, 85% arrestance, EU3 rated
  • Standard Filtration Elements - Main filter:
    Activated Carbon with Granular Media bed (8 different filter types available, codes A-H)
  • Control System:
    Esco Sentinel™ Silver Microprocessor Controller
  • Inflow Air Velocity - Initial Set Point:
    0.5 m/s (100 fpm)
  • Sound Emission:
    <58 dBA at initial blower speed setting measured at typical oPerator work position
  • LED Light Intensity:
    >350 lux (>28 foot-candles) at work surface level
  • Sash - Sloped Front:
    13°
  • Sash - Sash Type:
    Hinged

Hood Construction

  • Main Body:
    1.2 mm (0.05") 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester IsocideTM antimicrobial powder coated finish
  • Front Window:
    6 mm acrylic
  • Side Walls:
    9.5 mm (0.37") Acrylic
  • Work Top:
    1.5 mm (0.06") 16 gauge stainless steel type 304, with 4B finish

Downloads

  • Ascent™ Ductless Fume Hood Combined Catalog
    Download
  • Esco Ductless Fume Hood Tri-fold Brochure
    Download
