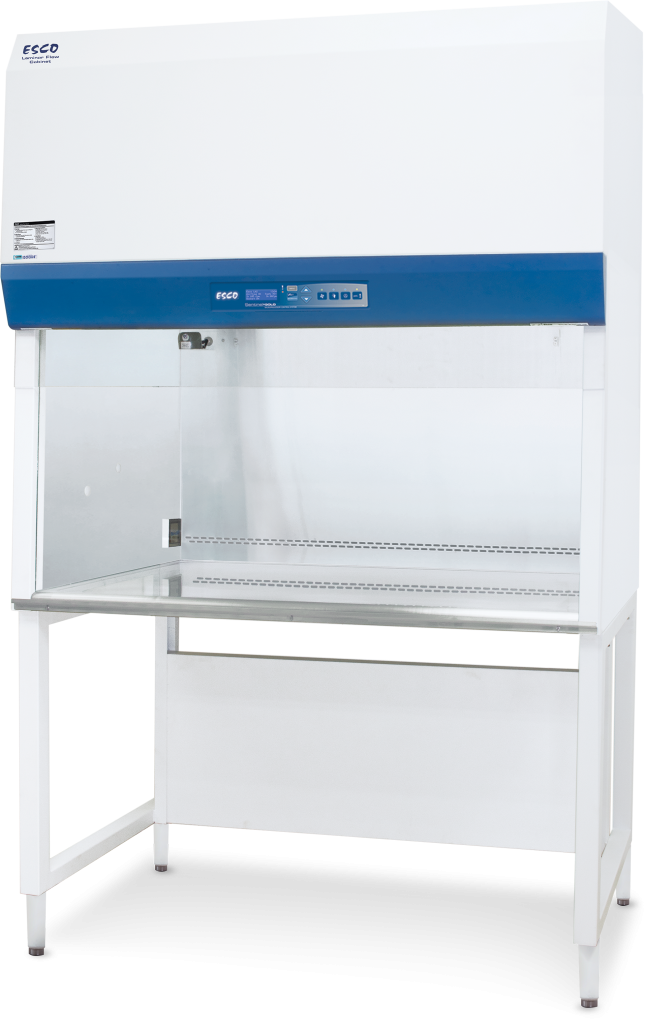

ESCO - LVS-4CG-F9 - Airstream Gen 3 Vertical Laminar Flow Cabinet

Features
While others rely on traditional PSC motors, the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet is the only vertical-type clean bench in the market that uses Direct Current Electronically Commutated Motor (DC ECM) technology. Reducing energy costs by up to 70%, these clean benches are the greenest ones yet.
The secret to achieving energy savings through ECM technology lies in its high electrical efficiency and ability to run precisely on programmed speeds. Enjoy low heat and noise emission as well with the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet.
Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment.
Applications
- Microbiology (non-pathogenic)
- Forensics
- Sterile product compounding
High-Quality Construction
- Stainless steel worktop
- Spill-retaining design will ensure containment of accidental liquid spills
Quiet Operation
- Comfortable low noise at 52 dBA
- Reduce fatigue and improve work concentration
ULPA Filter
- 10x Filtration efficiency of HEPA filter Creates ISO Class 3 work zone instead of industry-standard ISO Class 5
Energy-efficient
- Powered by latest generation DC ECM blower, that is more efficient than legacy ECM and VFD motors
- 70% Energy savings compared to AC motor
- Stable airflow, despite building voltage fluctuations & filter loading
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure Models
Specifications
Overview
-
Nominal Height:64.8" (164.59 cm)
-
Nominal Width:52.8" (134.11 cm)
-
Nominal Length:32.4" (82.3 cm)
-
Internal Height:35.6" (90.42 cm)
-
Internal Width:50" (127.0 cm)
-
Internal Length:29.1" (73.91 cm)
General Specifications
-
Nominal Size:4 ft (1.2 m)
-
Sound Emmision Per IEST-RPCC002.2:52.5 dBA
-
LED Lamp Intensity at Zero Ambient:904 Lux (84 fc)
-
Cabinet Full Load Amps (FLA):11.5 A
-
Cabinet Nominal Power (W):217
-
Heat Rejected, BTU Per Hour:741
-
Shipping Weight:243 Kg (536 lbs)
-
Shipping Dimensions, Maximum (W x D x H):1490 x 900 x 1750 mm (58.7" x 35.4" x 68.9")
-
Shipping Volume, Maximum:2.3 m³ (81.2 ft³)
-
Average Airflow Velocity:0.45 m/s (90 fpm) at initial Set Point
-
ULPA Filter Typical Efficiency:> 99.999% at particle size between 0.1 to 0.3 μm
-
Electrical - Power Rating 9:110-130 VAC, 50/60 Hz, 1 phase
Cabinet Construction
-
Main Body:1.2 mm (0.05") 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester powder-coated finish
-
Work Zone:1.2 mm (0.05") 18-gauge stainless steel, grade 304, with 4B finish
-
Side Walls:1.2 mm (0.05") 18 gauge stainless steel, grade 304, with 4B finish
