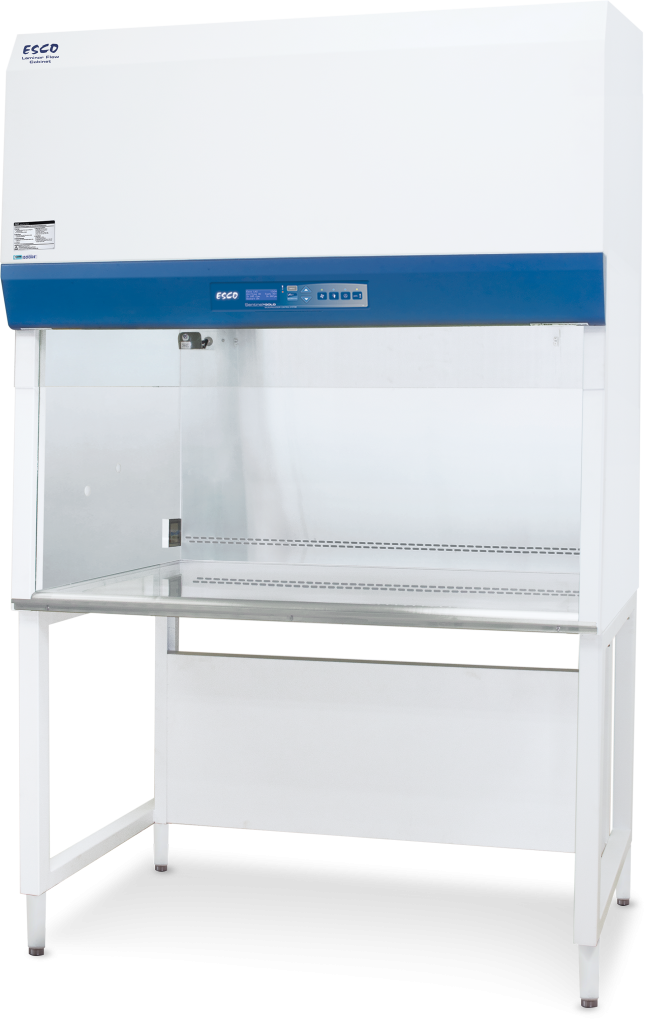

ESCO - LVS-4AG-F9 - Airstream Gen 3 Vertical Laminar Flow Cabinet

Features
While others rely on traditional PSC motors, the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet is the only vertical-type clean bench in the market that uses Direct Current Electronically Commutated Motor (DC ECM) technology. Reducing energy costs by up to 70%, these clean benches are the greenest ones yet.
The secret to achieving energy savings through ECM technology lies in its high electrical efficiency and ability to run precisely on programmed speeds. Enjoy low heat and noise emission as well with the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet.
Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment.
Applications
- Microbiology (non-pathogenic)
- Forensics
- Sterile product compounding
High-Quality Construction
- Stainless steel worktop
- Spill-retaining design will ensure containment of accidental liquid spills
Quiet Operation
- Comfortable low noise at 52 dBA
- Reduce fatigue and improve work concentration
ULPA Filter
- 10x Filtration efficiency of HEPA filter Creates ISO Class 3 work zone instead of industry-standard ISO Class 5
Energy-efficient
- Powered by latest generation DC ECM blower, that is more efficient than legacy ECM and VFD motors
- 70% Energy savings compared to AC motor
- Stable airflow, despite building voltage fluctuations & filter loading
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure Models
Specifications
Overview
-
Nominal Height:50" (127.0 cm)
-
Nominal Width:52.8" (134.11 cm)
-
Nominal Length:30.9" (78.49 cm)
-
Internal Height:26.7" (67.82 cm)
-
Internal Width:50" (127.0 cm)
-
Internal Length:29.1" (73.91 cm)
General Specifications
-
Nominal Size:1.2 meter (4')
-
Internal Work Area, Space:0.8 m² (8.6 ft²)
-
Average Airflow Velocity:0.45 m/s (90 fpm) at initial setpoint
-
Air Volume:1471 m³/hr (866 cfm)
-
ULPA Filter Typical Efficiency:> 99.999% at particle size between 0.1 to 0.3 μm
-
Sound Emission Per IEST-RP-CC002.2:52.4 dBA
-
LED Lamp Intensity at Zero Ambient:904 Lux (84 foot candles)
-
Net Weight:158 Kg (348 lbs)
-
Shipping Weight:202 Kg (445 lbs)
-
Shipping Dimensions, Maximum (W x D x H):1400 x 900 x 1590 mm (55" x 35" x 62")
-
Shipping Volume, Maximum:2.0 m³ (70.6 ft³)
Cabinet Construction
-
Main Body:1.2 mm (0.05") 18-gauge electro-galvanized steel with white
-
Work Zone:1.2 mm (0.05") 18-gauge stainless steel, grade 304, with 4B finish
-
Side Walls:1.2 mm (0.05") 18 gauge stainless steel, grade 304, with 4B finish
-
Sash Window:5 mm (0.2") UV Resistant Polycarbonate Sash with 461 mm (18.1") opening
Electrical Power Rating 9 (110-130 VAC, 50/60 Hz, 1 phase)
-
Cabinet Full Load Amps (FLA):12.5 A
-
Optional Outlets (FLA):5 A
-
Cabinet Nominal Power (W):155
-
Heat Rejected, BTU Per Hour:529
