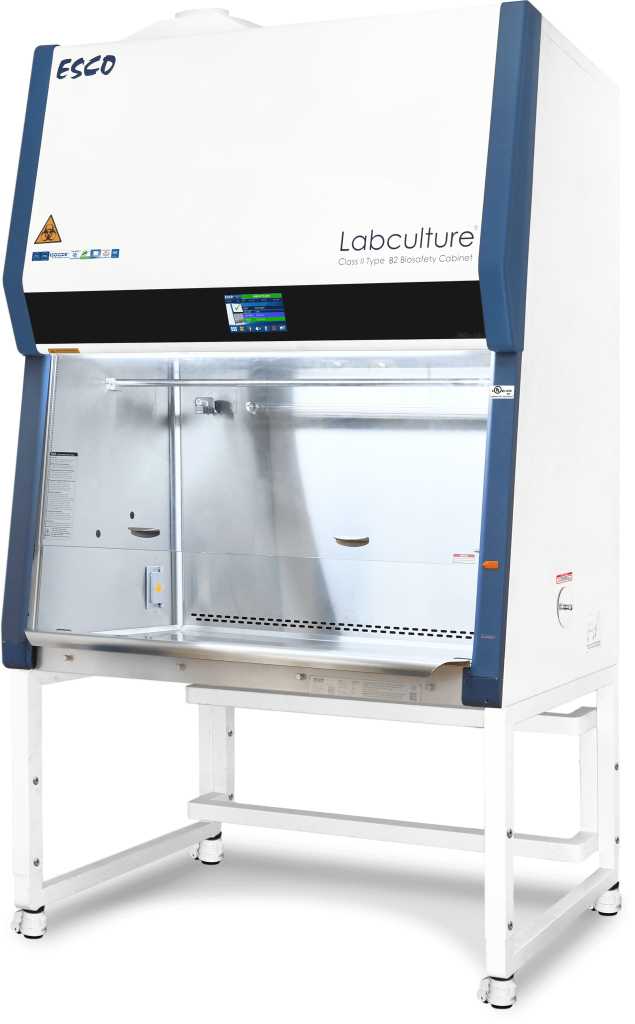

ESCO - LB2-6B9 - Gen 4 Port Labculture® G4 Class II Type B2 (Total Exhaust) Biological Safety Cabinet

ESCO - LB2-6B9 - Gen 4 Port Labculture® G4 Class II Type B2 (Total Exhaust) Biological Safety Cabinet

ESCO - LB2-6B9 - Gen 4 Port Labculture® G4 Class II Type B2 (Total Exhaust) Biological Safety Cabinet

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The latest Labculture® G4 (LB2 G4) Biosafety Cabinet with 100% exhaust airflow mechanism provides a high level of containment and user and product protection. LB2 G4 also has fail-safe system where in case of exhaust failure, the cabinet’s main fan automatically shuts down to ensure safety.

Features

The latest Labculture® G4 (LB2 G4) Biosafety Cabinet with 100% exhaust airflow mechanism provides a high level of containment and user and product protection. LB2 G4 also has a fail-safe system where, in case of exhaust failure, the cabinet’s main fan automatically shuts down to ensure safety.



The new BSC with Centurion Touchscreen controller is NSF-certified, ergonomically designed, and work zone lighted with bright illumination using industry-leading dimmable LED combined with a raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.



Centurion Touchscreen Controller



  • Intuitive, comprehensive, and easy-to-understand
  • Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
  • Defined details of alarm types with clear instructions for proper intervention
  • Centered and angled down for easy reach & viewing
  • Selectable Quickstart mode for fast operation



Dimmable LED



  • Adjustable work zone brightness
  • Ideal light intensity of 1200 lux
  • Saves energy and optimizes work comfort



Ergonomic Sash



  • 8” sash opening
  • Frameless, shatterproof, and UV-absorbing tempered glass



Tray support beams and holder



  • Support beams for less vibration and holder for easy drain pan cleaning



USB Port and Remote Modbus



  • USB port to access cabinet data log and BMS connectivity
  • Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices



Cabinet Construction



  • Stainless steel side walls with side capture zones and negative pressure to optimize containment
  • Single-piece work tray, spill retaining and easy to clean



Green Product



  • Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
  • Extremely low energy consumption



ULPA Filter



  • 10x filtration efficiency compared to the HEPA filter
  • Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
  • Same 10 years filter life and replacement cost as HEPA filters
  • *99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
  • 99.999% at MPPS, H14 as per EN 1822 EU



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications

Overview

  • Nominal Height:
    63.4" (161.04 cm)
  • Nominal Width:
    79.9" (202.95 cm)
  • Nominal Length:
    34.1" (86.61 cm)
  • Internal Height:
    28.3" (71.88 cm)
  • Internal Width:
    73.7" (187.2 cm)
  • Internal Length:
    24.5" (62.23 cm)

General Specifications

  • Nominal Size:
    1.8 meter (6')
  • Usable Work Area:
    0.93 m² (10.0 sq.ft.)
  • Sash Opening:
    203 mm (8")
  • Maximum Sash Opening:
    534 mm (21")
  • Supply ULPA Filter Typical Efficiency:
    99.999% efficiency at 0.3-0.1 microns
  • Exhaust HEPA Filter Typical Efficiency:
    ≥99.99% at 0.3 microns
  • Sound Emission (dBA) - NSF / ANSI 49:
    60 dBA
  • Sound Emission (dBA) - EN 12469:
    57 dBA
  • Light Intensity - LED Lamp:
    >1200 Lux (≥111 foot-candles)
  • Light Intensity - Optional UV Lamp:
    253.7 nm
  • Cabinet Construction - Main Body:
    Electro-galvanized steel with white oven-baked epoxy-polyester Isocide antimicrobial powder-coated finish, 1.5 mm (0.06")/16 gauge thick
  • Cabinet Construction - Workzone:
    Stainless steel Type 304 with No.4 finish, 1.5 mm (0.06")/16 gauge thick
  • Cabinet Construction - Sash Window:
    6mm UV-absorbing Tempered Glass
  • Net Weight:
    438 Kg (966 lbs)
  • Shipping Weight:
    491 kg (1083 lbs)
  • Shipping Dimensions - Maximum:
    2150 x 950 x 1950 mm (84.7” x 37.4” x 76.8”)
  • Shipping Volume Dimensions (W x D x H):
    3.98 m³ (140.6 cu.ft.)

Average Airflow Velocity - Airflow Volume

  • Average Airflow Velocity - Inflow:
    0.53 m/s (105 fpm)
  • Average Airflow Velocity - Downflow:
    0.31 m/s (60 fpm)
  • Airflow Volume - Inflow:
    724 m³/h (429 cfm)
  • Airflow Volume - Downflow:
    1210 m³/h (710 cfm)
  • Airflow Volume - CBV Exhaust Air Volume:
    2173 m³/h (1269 cfm)
  • Airflow Volume - Minimum Exhaust Static Pressure:
    400 Pa / 1.6 in H₂O
  • Airflow Volume - CBV Exhaust Static Pressure:
    575 Pa / 2.3 in H₂O

Electrical Requirements 110-130 VAC,50/60 Hz

  • Electrical Requirements (230V)-Nominal Power Consumption:
    291 W
  • Electrical Requirements (230V)-Heat:
    985 BTU/hr
  • Electrical Requirements (230V)-Full Load Amps:
    1.4A
  • Electrical Requirements (115V)-Nominal Power Consumption:
    291 W
  • Electrical Requirements (115V)-Heat:
    768 BTU/hr
  • Electrical Requirements (115V)-Full Load Amps:
    2.4A
