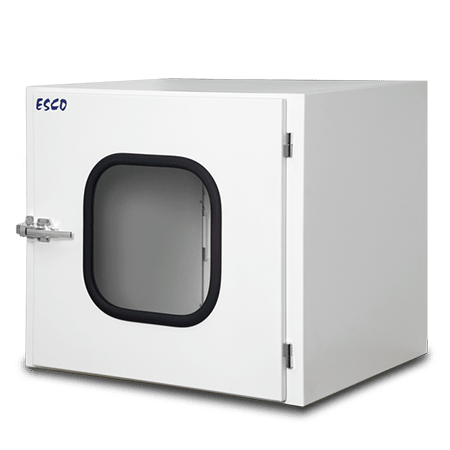

ESCO - EPB-B - Infinity® Pass Boxes, Stainless steel (SS) Doors, Polycarbonate Viewing Window

ESCO - EPB-B - Infinity® Pass Boxes, Stainless steel (SS) Doors, Polycarbonate Viewing Window
ESCO - EPB-B - Infinity® Pass Boxes, Stainless steel (SS) Doors, Polycarbonate Viewing Window

ESCO - EPB-B - Infinity® Pass Boxes, Stainless steel (SS) Doors, Polycarbonate Viewing Window

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
This allows the aseptic transfer of materials in and out of cleanroom areas. It lessens operator traffic inside controlled facilities, thus, decreasing the risk for cross-contamination of processes and final products.

Product Range

SKU Name
EPB-B606060 ESCO - EPB-B606060 - Infinity® Pass Boxes, Mechanical Interlock, Stainless steel (SS) Doors, Polycarbonate Viewing Window
EPB-B504050 ESCO - EPB-B504050 - Infinity® Pass Boxes, Mechanical Interlock, Stainless steel (SS) Doors, Polycarbonate Viewing Window
EPB-B606060-U1 ESCO - EPB-B606060-U1 - Infinity® Pass Boxes, Mechanical Interlock, UV (Switch, Interlock), Stainless steel (SS) Doors, Polycarbonate Viewing Window

Features

  • Mechanical interlock is reliable, maintenance-free, fail-safe, and maintains cleanroom integrity by preventing both doors from being opened at the same time.
  • Manufactured for the most demanding controlled environment applications.
  • All components are designed for maximum chemical resistance and enhanced durability for a long service life.
  • The pass box base surface is constructed of stainless steel 304, making it easy to clean.
  • Polycarbonate viewing windows provide a clear view of the internal chamber.

Key Benefits


  • Reliable Mechanical Interlock
  • SS 304 base surface
  • Polycarbonate viewing windows

Principle


  • Controlling the ingress of particulate contamination into cleanrooms and other controlled environments is paramount in order to maintain the integrity of products and processes; personnel traffic is the most important factor which must be controlled.
  • Esco Pass Boxes and Transfer Hatches are cost-effective solutions as they allow materials to be transferred into controlled environments without actual personnel movement.
  • They may also be used to protect the external environment from egress of contamination, for example, in biological safety laboratory applications.

    • Accessories


    • Flange for sealing the gap between the pass box and the cleanroom wall, when the cleanroom wall can support the weight of the pass box. (Set of 2 flanges)
    • Optional UV lamp, must be factory fitted, (only available for EPB-A606060)
    • Support stand (for cleanrooms with thin wall partitions, which cannot support the weight of the pass box) to mount the pass box to the floor. Specify mounting height when ordering.
    • Full stainless steel 304 (optional: SS 316L interior) with non-coved corners (EPB-B model) or with coved corners at its base (SPB model).
