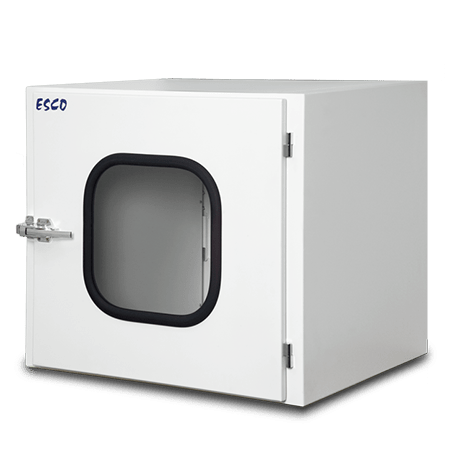

This allows the aseptic transfer of materials in and out of cleanroom areas. It lessens operator traffic inside controlled facilities, thus, decreasing the risk for cross-contamination of processes and final products.

Features

  • Mechanical interlock is reliable, maintenance-free, fail-safe, and maintains cleanroom integrity by preventing both doors from being opened at the same time.
  • Manufactured for the most demanding controlled environment applications.
  • All components are designed for maximum chemical resistance and enhanced durability for a long service life.
  • The pass box base surface is constructed of stainless steel 304, making it easy to clean.
  • Polycarbonate viewing windows provide a clear view of the internal chamber.

Key Benefits


  • Reliable Mechanical Interlock
  • SS 304 base surface
  • Polycarbonate viewing windows

Principle


  • Controlling the ingress of particulate contamination into cleanrooms and other controlled environments is paramount in order to maintain the integrity of products and processes; personnel traffic is the most important factor which must be controlled.
  • Esco Pass Boxes and Transfer Hatches are cost-effective solutions as they allow materials to be transferred into controlled environments without actual personnel movement.
  • They may also be used to protect the external environment from egress of contamination, for example, in biological safety laboratory applications.

    • Accessories


    • Flange for sealing the gap between the pass box and the cleanroom wall, when the cleanroom wall can support the weight of the pass box. (Set of 2 flanges)
    • Optional UV lamp, must be factory fitted, (only available for EPB-A606060)
    • Support stand (for cleanrooms with thin wall partitions, which cannot support the weight of the pass box) to mount the pass box to the floor. Specify mounting height when ordering.
    • Full stainless steel 304 (optional: SS 316L interior) with non-coved corners (EPB-B model) or with coved corners at its base (SPB model).

    Specifications

    Overview

    • Nominal Height:
      26" (66.04 cm)
    • Nominal Width:
      30" (76.2 cm)
    • Nominal Length:
      25.6" (65.02 cm)
    • Internal Height:
      23.6" (59.94 cm)
    • Internal Width:
      23.6" (59.94 cm)
    • Internal Length:
      23.6" (59.94 cm)

    General Specifications

    • Net Weight:
      55.8 kg (123 lbs)
    • Shipping Weight:
      80.4 kg (177 lbs)
    • Shipping Dimensions, Maximum (W x D x H):
      830 x 820 x 870 mm (32.7" x 32.3" x 34.3")
    • Shipping Volume, Maximum:
      0.59 m³ (20.8 cu.ft.)
