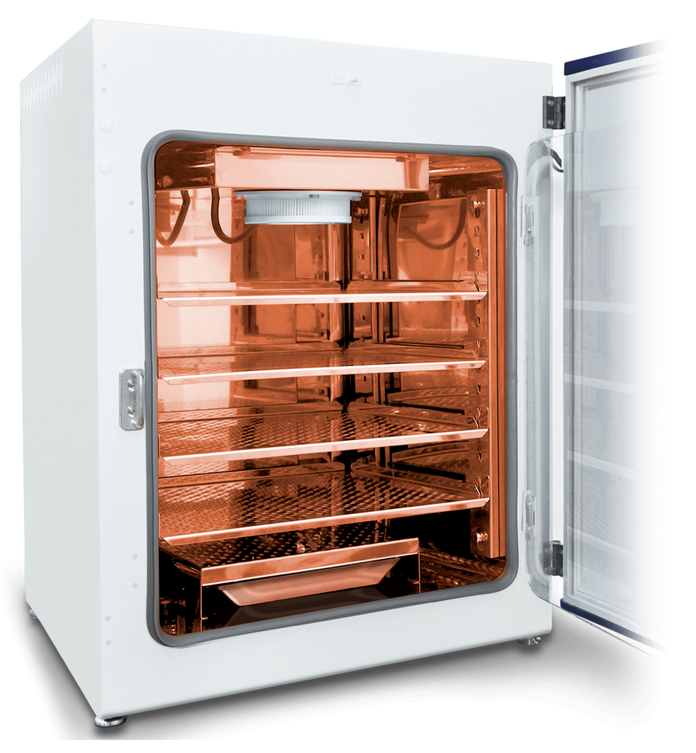

ESCO - CCL-240B-9-CU - CelCulture® Incubator 240 L, IR Sensor, CO₂ Control, ULPA, 115 VAC, 50/60 Hz

ESCO - CCL-240B-9-CU - CelCulture® Incubator 240 L, IR Sensor, CO₂ Control, ULPA, 115 VAC, 50/60 Hz

ESCO - CCL-240B-9-CU - CelCulture® Incubator 240 L, IR Sensor, CO₂ Control, ULPA, 115 VAC, 50/60 Hz

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
CelCulture Incubator 240L IR Sensor CO2 Control, ULPA, 90C Moist Heat Decon 115VAC, 50/60 Hz.

Features

Esco CelCulture® presents, CO2 Incubator with pure solid copper interior, offering maximum protection for your precious samples. Copper is known to have antimicrobial properties. It can inhibit the growth of common culture microbial contaminants such as E. coli, S. aureus, etc.



Applications



  • Neuroscience
  • Stem Cell Research
  • In Vitro Fertilization
  • Tissue Engineering
  • Cancer Research
  • Mammalian Cell Research



Robust Contamination Control



  • SteriSafe™ ULPA filtration ensures air chamber cleanliness
  • SwiftCon™ 90˚C validated moist heat decontamination cycle (15 hours)
  • In-line filters remove gas impurities and contaminants



Direct Heat and Air Jacket



  • Fast and uniform heating
  • Rapid temperature recovery
  • Air jacket improves chamber stability



Shelving



  • Perforated shelving to improve uniformity
  • Anti-tip
  • Stainless steel
  • Built-in grip



Rounded Corners



  • Seamless design
  • Facilitates easier cleaning



CO₂ Sensor



  • IR Sensor
  • Single-beam, dual-wavelength IR sensor is drift-free
  • CARBOCAP® technology makes it stable for a long time and resistant to high heat



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure



Watch the video

Specifications

Overview

  • Nominal Height:
    35.4" (89.92 cm)
  • Nominal Width:
    29.5" (74.93 cm)
  • Nominal Length:
    30.3" (76.96 cm)
  • Internal Height:
    24.9" (63.25 cm)
  • Internal Width:
    23.4" (59.44 cm)
  • Internal Length:
    25.2" (64.01 cm)
  • Capacity:
    8.5

General Specifications

  • Temperature Control Method:
    Direct heat & Air Jacket using Microcontroller PI
  • Ambient Temperature Range:
    18 to 32°C (64.4 to 89.6°F)
  • Temperature Range °C:
    Ambient +5 to 60
  • Temperature Uniformity °C:
    < ±0.5
  • Temperature Accuracy °C:
    < ±0.1
  • Temperature Recovery Time:
    ≤6 minutes
  • CO2 Control System:
    Microcontroller PI
  • CO2 Range % CO2:
    0-19.5
  • CO2 Accuracy % CO2:
    ±0.1
  • CO2 Sensor:
    Infrared (IR) Sensor
  • CO2 Recovery Time:
    Standard Unit ≤6 minutes, Suppressed O2 model ≤10 minutes
  • O2 Control System:
    Microcontroller PI
  • O2 Range % O2:
    1-18
  • O2 Accuracy % O2:
    ± 0.1
  • O2 Sensor:
    Zirconia O2 sensor
  • Humidification Method:
    Humidity pan
  • Humidity Range %RH (at 37 °C):
    85-90
  • Net Weight:
    121 kg (266.8 lbs)
  • Shipping Weight:
    155 kg (341.7 lbs)
  • Shipping Dimensions (W x D x H):
    850 x 850 x 1120 mm (33.5” x 33.5” x 44.1”)
  • Shipping Volume:
    0.79 m3 (28.03 ft3)

Chamber Construction

  • Main Body:
    Electrogalvanized steel with Isocide™ antimicrobial coating (except CCL-SS models with stainless steel exterior)
  • Interior Material:
    Stainless steel, type 304 (except CCL-Cu models with copper interior chamber)
  • Number of Shelves:
    4
  • Maximum Number of Shelves:
    7
  • Shelves Dimensions (W x D x H):
    560 x 585 x 16 mm (22.0” x 23.9” x 0.63”)
  • Maximum Load per Shelf:
    15 kg/shelf (33.1 lbs/shelf)

Electrical Configuration 110-130 VAC, 50/60 Hz

  • Nominal Power at 37°C:
    42.2 W
  • Maximum Power Consumption:
    1727.9 W
  • Full Load Amps:
    13.4 A
