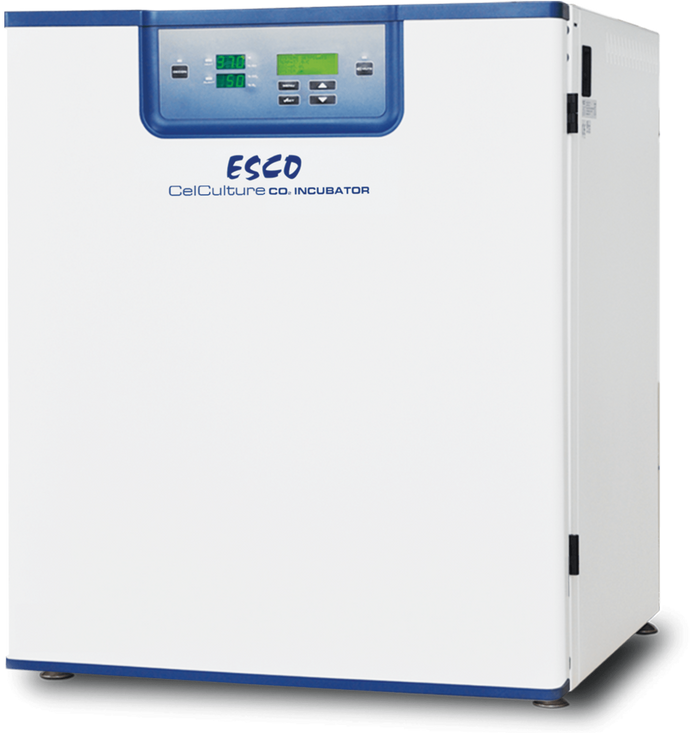

ESCO - CCL-240B-9 - CelCulture® Incubator 240 L, IR Sensor, CO2 Control, ULPA, 115 VAC, 50/60 Hz
Features
True leaders rise above the ordinary. Such a statement does not only hold true in the entrepreneurial world, but also in the scientific world. At any aspect of a scientific study, researchers and scientists aspire to discover, innovate, and lead. This is why Esco builds top-of-the-line equipment for every laboratory. We believe that science is meant to lead, motivate, and inspire humanity.
Thus, we present to you the sleek, reliable and intuitive Esco CelCulture® CO2 incubator, designed to bring out the leader in every cell culture laboratory. It provides all-rounded sample protection that brings your scientific dreams one step closer to reality. Various options are available.
Applications
- Neuroscience
- Stem Cell Research
- In Vitro Fertilization
- Tissue Engineering
- Cancer Research
- Mammalian Cell Research
Robust Contamination Control
- SteriSafe™ ULPA filtration ensures air chamber cleanliness
- SwiftCon™ 90˚C validated moist heat decontamination cycle (15 hours)
- In-line filters remove gas impurities and contaminants
Direct Heat and Air Jacket
- Fast and uniform heating
- Rapid temperature recovery
- Air jacket improves chamber stability
Shelving
- Perforated shelving to improve uniformity
- Anti-tip
- Stainless steel
- Built-in grip
Rounded Corners
- Seamless design
- Facilitates easier cleaning
CO₂ Sensor
- IR Sensor
- Single-beam, dual-wavelength IR sensor is drift-free
- CARBOCAP® technology makes it stable for a long time and resistant to high heat
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure
Specifications
Overview
-
Nominal Height:35.4" (89.92 cm)
-
Nominal Width:29.5" (74.93 cm)
-
Nominal Length:30.3" (76.96 cm)
-
Internal Height:24.9" (63.25 cm)
-
Internal Width:23.4" (59.44 cm)
-
Internal Length:25.2" (64.01 cm)
-
Capacity:8.5
General Specifications
-
Temperature Control Method:Direct heat & Air Jacket using Microcontroller PI
-
Ambient Temperature Range:18 to 32°C (64.4 to 89.6°F)
-
Temperature Range, °C:Ambient +5 to 60
-
Temperature Uniformity, °C:< ±0.5
-
Temperature Accuracy, °C:< ±0.1
-
Temperature Recovery Time (after 30 seconds door opening, 98% from initial value):≤6 minutes
-
CO2 Control System:Microcontroller PI
-
CO2 Range, % CO2:0-19.5
-
CO2 Accuracy, % CO2:±0.1
-
CO2 Sensor:Infrared (IR) Sensor
-
CO2 Recovery Time (after 30 seconds door opening, 98% from initial value):Standard Unit ≤6 minutes, Suppressed O2 model ≤10 minutes
-
O2 Control System:Microcontroller PI
-
O2 Range, % O2:1-18
-
O2 Accuracy, % O2:± 0.1
-
O2 Sensor:Zirconia O2 sensor
-
Humidification Method:Humidity pan
-
Humidity Range, %RH (at 37 °C):85-90
-
Net Weight:121 kg (266.8 lbs)
-
Shipping Weight:155 kg (341.7 lbs)
-
Shipping Dimensions (W x D x H):850 x 850 x 1120 mm (33.5” x 33.5” x 44.1”)
-
Shipping Volume:0.79 m3 (28.03 ft3)
Chamber Construction
-
Main Body:Electrogalvanized steel with Isocide™ antimicrobial coating (except CCL-SS models with stainless steel exterior)
-
Interior Material:Stainless steel, type 304 (except CCL-Cu models with copper interior chamber)
-
Number of Shelves:4
-
Maximum Number of Shelves:7
-
Shelves Dimensions (W x D x H):560 x 585 x 16 mm (22.0” x 23.9” x 0.63”)
-
Maximum Load per Shelf:15 kg/shelf (33.1 lbs/shelf)
Electrical Configuration 110-130 VAC, 50/60 Hz
-
Nominal Power at 37°C:42.2 W
-
Maximum Power Consumption:1727.9 W
-
Full Load Amps:13.4 A
