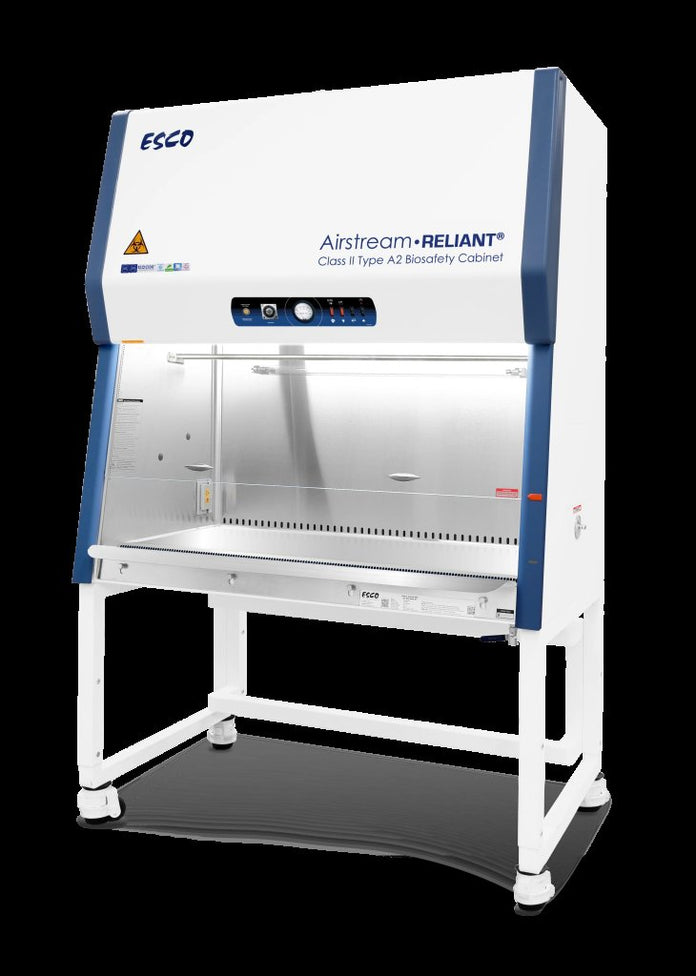

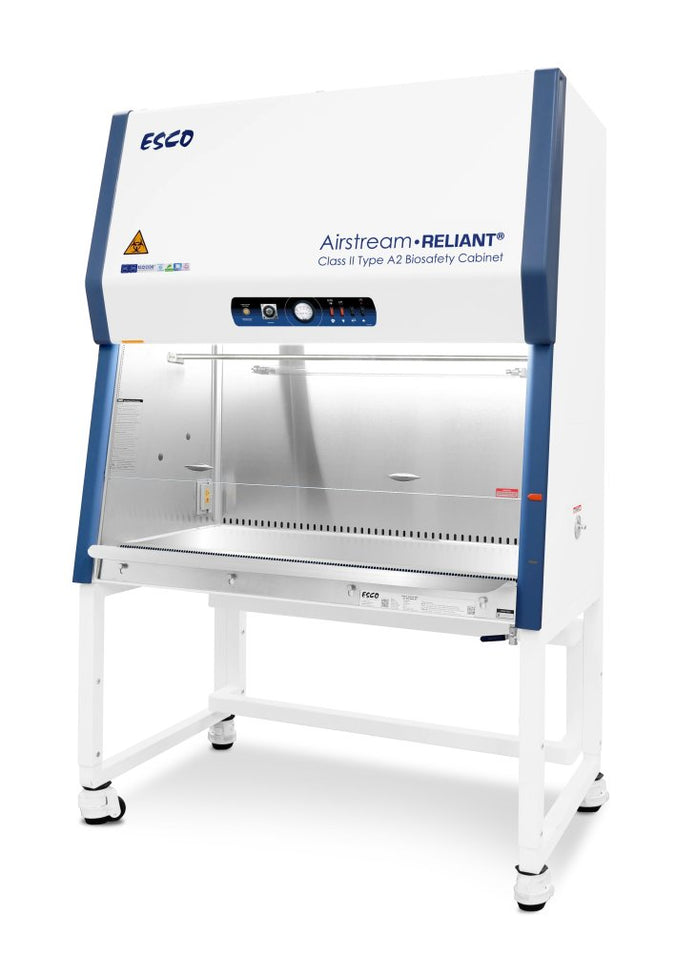

ESCO - AR2-S9-NS - Gen 4 Airstream® Reliant Class II Type A2 Biological Safety Cabinet

ESCO - AR2-S9-NS - Gen 4 Airstream® Reliant Class II Type A2 Biological Safety Cabinet

ESCO - AR2-S9-NS - Gen 4 Airstream® Reliant Class II Type A2 Biological Safety Cabinet

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Airstream® Reliant G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 8-inch opening.

Product Range

SKU Name
2011507-Esco ESCO - AR2-3S9 - Gen 4 Airstream® Reliant Class II Type A2 Biological Safety Cabinet
2011513-Esco ESCO - AR2-6S9 - Gen 4 Airstream® Reliant Class II Type A2 Biological Safety Cabinet
2011509-Esco ESCO - AR2-4S9 - Gen 4 Airstream® Reliant Class II Type A2 Biological Safety Cabinet
2011511-Esco ESCO - AR2-5S9 - Gen 4 Airstream® Reliant Class II Type A2 Biological Safety Cabinet

Features

The new compact-size Airstream® Reliant G4 BSC is NSF-certified and available in 8” sash height opening, with standby height that easily activates standby mode.



AR2 G4 ergonomic work zone is comprised of bright illumination using industry-leading LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.



Rocker Switches and Pressure Gauge



  • New and improved controller interface
  • Easy to use switches and displays filter loading status
  • Manually adjustable UV timer



Energy-efficient LED



  • Optimum work zone brightness
  • Ideal light intensity of 1200 lux
  • Saves energy and optimizes work comfort



Ergonomic Sash



  • Available in 8” sash height opening
  • Frameless, shatterproof, and UV-absorbing tempered glass



Tray support beams and holder



  • Support beams for less vibration and holder for easy drain pan cleaning



Cabinet Construction



S-Series:

  • Stainless steel side walls with side capture zones and negative pressure to optimize containment
  • Single-piece work tray, spill retaining and easy to clean

E-Series:

  • Tempered Glass Side walls - increase visibility and prevent the operator from experiencing a "boxed-in" feeling
  • Multi-piece work tray, autoclavable



Green Product



  • Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
  • Extremely low energy consumption
  • Standby mode allows reduced power consumptioN



ULPA Filter



  • 10x filtration efficiency compared to the HEPA filter
  • Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
  • Same 10 years filter life and replacement cost as HEPA filters

>99.999% at MPPS, H14 as per EN 1822 EU

99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications

Overview

  • Nominal Height:
    55.1" (139.95 cm)
  • Nominal Length:
    33.5" (85.09 cm)
  • Internal Height:
    26" (66.04 cm)
  • Internal Length:
    24" (60.96 cm)

Technical Data

  • Tested Opening::
    203 mm (8”) or 254 mm (10”)
  • Working Opening::
    218 mm (8.6”) or 268 mm (10.6”)
  • Average Inflow Velocity::
    0.53 m/s (105 fpm)
  • Average Downflow Velocity::
    0.30 m/s (60 fpm)
  • ULPA Filter Typical Efficiency::
    >99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA, >99.999% at MPPS, H14 as per EN 1822 EU

Airflow Volume - Cabinet Construction

  • Cabinet Construction - Main Body::
    1.2 mm (0.05") / 18 gauge EG Steel with IsocideTM Oven-Baked Epoxy-Polyester Anti-microbial Powder Coating
  • Cabinet Construction - Work Zone::
    1.5 mm (0.06”) / 16 gauge, Stainless Steel 304, 4B finish
  • Cabinet Construction - Side Walls::
    1.5 mm (0.06”) / 16 gauge, Stainless Steel 304, 4B finish
  • Cabinet Construction - Sash Glass::
    6 mm UV-absorving Tempered Glass

Downloads

  • Airstream® Reliant G4 Class II Type A2 Brochure
