E-Control Systems - Mesh-11ZB-Temperature and/or Contact Closure
Features

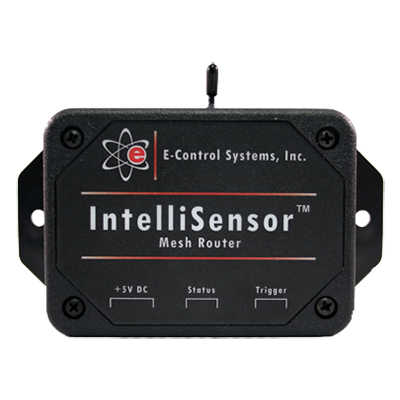

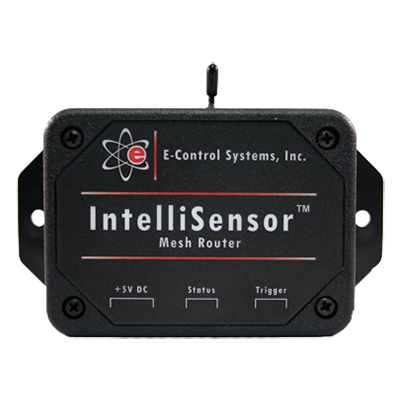

E-Control Systems’ IntelliSense™ Mesh Router, also called IntelliMesh™ is a wireless repeater used to extend the distance of an IntelliSense™ wireless sensor network. Its sole function in a normal wireless system is to relay wireless data between IntelliSensors™ (Sensors) and IntelliGates™ (Gateways). If no available gateway exists, the mesh router is smart enough to relay its data to another mesh router that is closer to an available gateway. As a result, IntelliMesh™ increases the distance, redundancy, and scalability of the wireless sensor network.
The IntelliMesh™ is a cost effective, wireless monitoring system using the ZigBee® standard. Combining the key components of the IntelliSense™ network (IntelliSensor™, IntelliGate™, IntelliMesh™, and FusionLive™) allows easy creation of a centrally managed monitoring application.
Specifications
Overview
Technical specifications
-
Air Flow:70 m3/h / 41 CFM
-
Voltage/Frequency:90 - 220 V / 50-60 Hz
-
Power Consumption:35W
-
Structure:Corrosion resistant electro-galvanized steel coated with anti-acid polymer
-
Doors:Clear, chemical resistant acrylic for easy viewing
-
Filtration Module:Polypropylene
-
Operating Temperature:-40 °C to 85 °C
-
Operating Humidity:0 to 100 %, non-condensing
Useful Links
-
lntelliMesh™ - Mesh Router/Repeater DatasheetVisit Link
