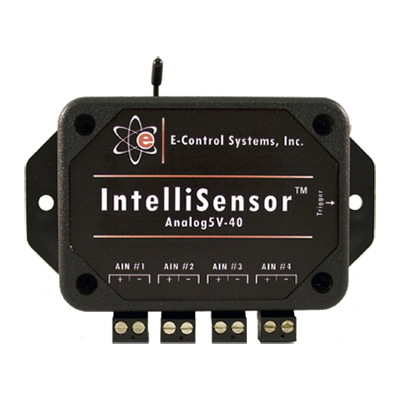

The IntelliSensor™

The IntelliSensor™ is a cost-effective, wireless monitoring system operating on the 802.15.4 ZigBee® standard for storing and communicating analog input voltage information, among other features. Sensors transmit data wirelessly to the IntelliGate™. The IntelliGate™ unit temporarily stores and processes all of the data from the IntelliSensor™ units and relays the received data over Ethernet to the FusionLive™ software, allowing for an easy creation of a centrally managed monitoring application.

Battery powered wireless solution operates via ZigBee®

• Analog measurements for input range of 0 to 5V DC
• Multiple input combinations available in single package (1 to 4 input modules)
• Completely wireless (No need for power or data cables)
• Battery lasts up to 10 years
• Strongest wireless transmitter on the market
• Supports meshed networking for increased reliability and range
• Sensors equipped with data loggers capable of storing up to 1 week-worth of data internally
• Completely integrated solution with FusionLive™ Software
• No hardware configuration needed (Sensors automatically join network)
• Firmware can be updated wirelessly (over-the-air)
• User configurable transmission interval (over-the-air)
• Conformal coated board for moisture-rich operating environments
• Operating temperature of -40 °C to 85 °C
• Operating humidity of 0 to 100 %, non-condensing
• Voltage resolution of 0.002 Volt
• 0.002 Volt Accuracy
