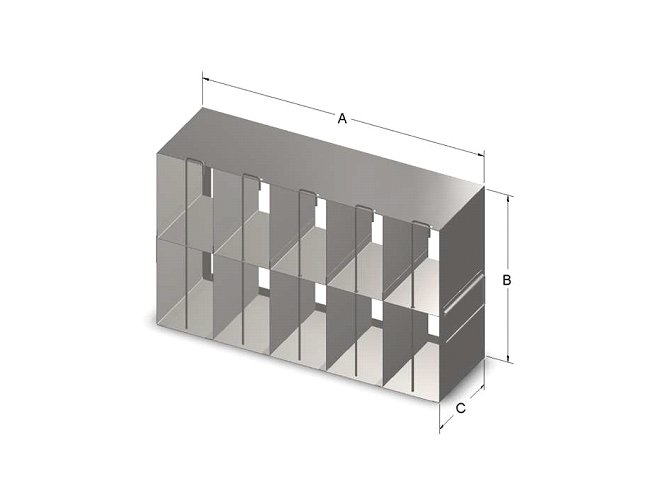

Custom Biogenic Systems - UMP619LR - Upright Stainless Steel Freezer Rack for 96-Well and 384-Well Microtiter Plates with Locking Rods

Custom Biogenic Systems - UMP619LR - Upright Stainless Steel Freezer Rack for 96-Well and 384-Well Microtiter Plates with Locking Rods

Custom Biogenic Systems - UMP619LR - Upright Stainless Steel Freezer Rack for 96-Well and 384-Well Microtiter Plates with Locking Rods

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Upright rack for 96-well & 384-well microtiter plates, and matrix trakmate 12 ml screwtop latch rack boxes (SBS footprint), stainless steel, with handles and locking rods. For matrix part numbers: 3774, 3775, 3776, 3778.

Features

Upright Rack for 96-Well & 384-Well Microtiter Plates, Stainless Steel, with Handles.


The highest quality racks, constructed of corrosion resistant stainless steel, including handles. Racks listed are for all 5 x 3.375 x 0.5625-Inch, 96-well & 384-well Microtiter plates, with an additional "LR" suffix indicating the locking rod option. Custom racks available upon request.

Specifications

Overview

  • Nominal Height:
    9.37" (23.8 cm)
  • Nominal Width:
    5.5" (13.97 cm)
  • Nominal Length:
    22" (55.88 cm)

Technical Data

  • Plate Capacity with Lids:
    84
  • Plate Capacity without Lids:
    96
