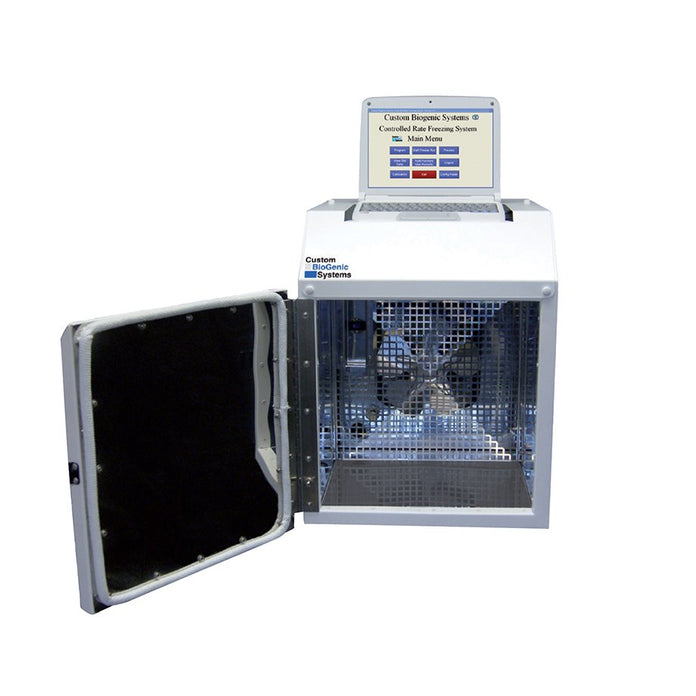

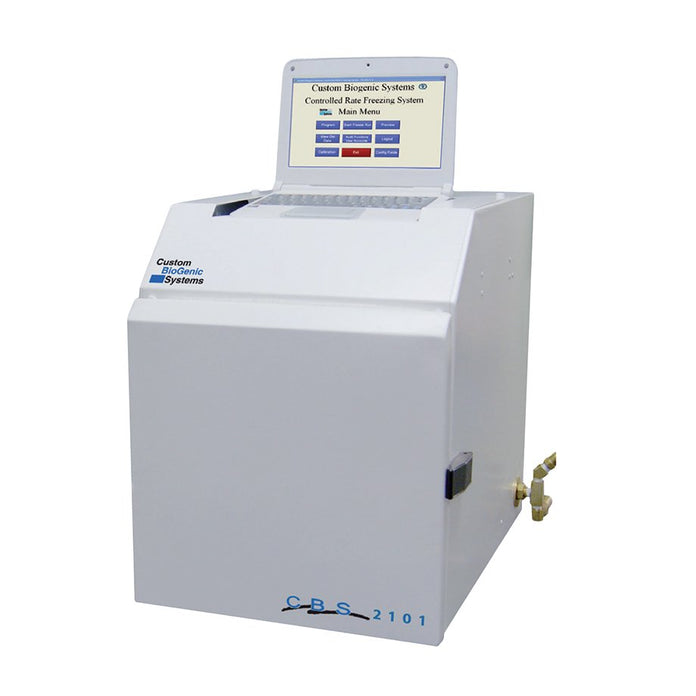

Custom Biogenic Systems - Model 2101 Controlled Rate Freezing System | 1 Cu. Ft. (28 Liters)
Features
Standard System Consists of:
- Laptop controller with 2100 software
- Freezing chamber
- Choice of sample rack
- 4ft transfer line
Product Features:
- Laptop controller using Windows based operating system.
- Unlimited programming capability.
- Multi-color graphing of sample, chamber and program temperature.
- Temperature set points by sample or chamber.
- Programs and freeze data saved to hard drive or disc.
- Password protected software.
- Searchable database for freeze run history.
- Freeze run graphs and data available via any standard USB printer.
- 30 data fields available for each freeze run.
- Continuous digital and graph display for time and temperature during operation.
- Manual overrides for all operating functions.
- Temperature range +50°C to -180°C.
- Freezing rates of 0.01° to 99.9° per minute.
- Program temperature hold of 1 second to 99 hours.
- Six pre-set easy to run freeze programs.
Specifications
Overview
-
Nominal Height:29.25" (74.3 cm)
-
Nominal Width:19.06" (48.41 cm)
-
Nominal Length:25.5" (64.77 cm)
-
Internal Height:13.75" (34.93 cm)
-
Internal Width:14" (35.56 cm)
-
Internal Length:9.56" (24.28 cm)
Technical Data
-
Volume:28 Litre
-
Net Weight:34,7 kg
-
Capacity:650 (1.2-2ml vials), 390 (4-5ml vials), 10 - 20 (bag canisters), 130 (canes)
-
Programmable Temperature Range:+50 to -180 °C
-
Programmable Cooling Rate Range:0.01 to 99.9 °C / min
-
Controller:Laptop controller (included)
-
Operating System:Windows based
-
Temperature sensor:Type T thermocouple (2 as standard, up to 8 with multi-probe)
-
Exterior Material:Powder coated stainless steel
-
Interior Material:Stainless steel
-
Max. load - Total:20 kg
-
Power Supply:230 V
-
Frequency:50 Hz
-
Noise Level:<66 dB
