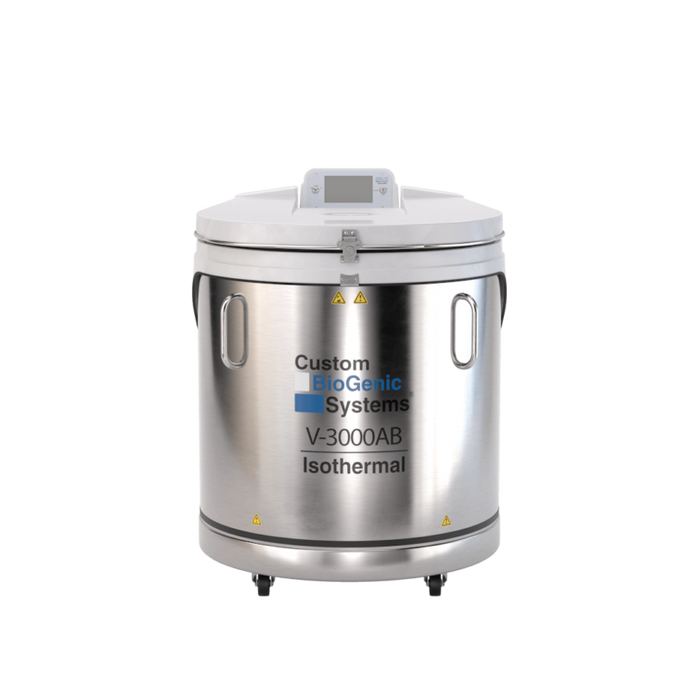

Custom Biogenic Systems - 55305V-ST - V-ST3000AB Isothermal Freezer Including Series 2301 SmartTouch Controller Autofill-Monitor System

Features
Model V-ST3000AB Isothermal Freezer Including Series 2301 SmartTouch Controller Autofill-Monitor System with Gas By-Pass System and LN2 Hose.
Features wide lid opening that makes it easy to see all of your racks at once and quickly retrieve the one you need. Quick rack retrieval time minimizes exposure time to ambient temperatures and helps to ensure a consistent storage temperature.
Advanced Sample Protection
Storage in liquid nitrogen can make vials shrink. Shrinkage can cause LN2 to seep into the vials, which on re-warming, can expand and subsequently explode as nitrogen vaporizes inside the vials. Dry storage eliminates this possibility.
Increased Safety
Our exclusive jacket design provides enhanced safety by eliminating contact with or splashing of liquid nitrogen.
More Storage Space
Our innovative jacket technology creates more storage space by eliminating the need for LN2 at the bottom of the storage chamber. Typical cryogenic freezers lose at least six inches of usable space to pooled LN2.
Reduced Contamination Risks
Studies show that viral, bacterial and fungal pathogens can survive after suspension in liquid nitrogen. By eliminating liquid in the storage area, our dry freezers greatly reduce the possibility of cross-contamination by infected samples.
Remotely Monitor Sample Performance
Our Isothermal LN2 freezers are available with optional SenseAnywhere technology, which combines wireless sensors and secure cloud storage, to easily monitor and track the Isothermal freezer performance from anywhere 24/7.
Specifications
Overview
-
Nominal Height:49.20" (124.97 cm)
-
Nominal Width:37.60" (95.5 cm)
-
Nominal Length:50.30" (127.76 cm)
-
Capacity:70
Technical Data
-
Usable Height:29" (736.6mm)
-
Usable Diameter:31" (787.4mm)
-
Vials (2ml):22,100
-
Cryobags (50ml):1,120
-
Liftover Height:2278.4 (89.7
-
Weight Empty kg (lbs):326.6 (7201)
-
Weight Liquid Full kg (lbs):383.1 (844.6)
