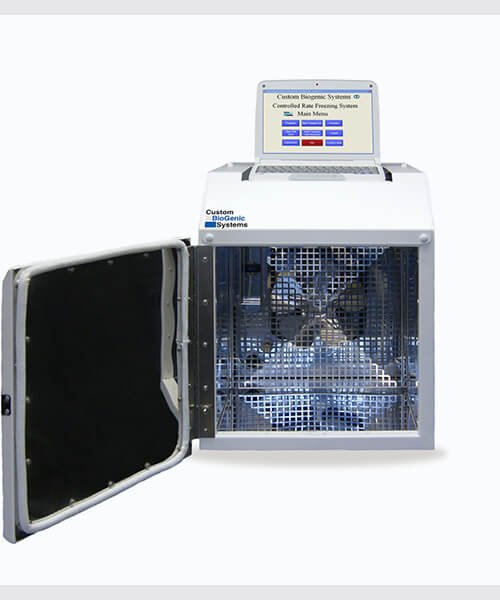

Custom Biogenic Systems - 42100 - Controlled Rate Freezing System Including Laptop Computer with 2101 Software and Freezing Chamber

Custom Biogenic Systems - 42100 - Controlled Rate Freezing System Including Laptop Computer with 2101 Software and Freezing Chamber

Custom Biogenic Systems - 42100 - Controlled Rate Freezing System Including Laptop Computer with 2101 Software and Freezing Chamber

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Controlled rate freezing system including laptop computer with 2101 software with freezing chamber, mobile cart, 4 foot LN2 hose and sample freezing rack and single probe.

Product Range

SKU Name
42100-MPI Custom Biogenic Systems - 42100-MPI - Controlled Rate Freezing System, Multi-Probe Including Laptop Computer with 2101 Software, Freezing Chamber
42100-EQ Custom Biogenic Systems - 42100-EQ - Controlled Rate Freezing System Including Laptop Computer with 2101 Software and 2 Equine Freezing Profiles, Freezing Chamber

Features

With a temperature range of -180°C to +50°C and the ability to customize your own freezer run, our controlled rate freezers give you the tools necessary to produce a better product, better results, reproducibility and aids in 21 CFR Part 11 compliance. You can even download results and view them with our free data viewer software. Freeze vials, bags and canes in a fraction of the time of other methods that don’t offer documentation.


  • Laptop controller using Windows based operating system
  • Unlimited programming capability
  • Multi-color graphing of sample, chamber and program temperature
  • Temperature set points by sample or chamber
  • Programs and freeze data saved to hard drive or disc
  • Password protected software
  • Searchable database for freeze run history
  • Freeze run graphs and data available via any standard USB printer
  • 30 data fields available for each freeze run
  • Continuous digital and graph display for time and temperature during operation
  • Manual overrides for all operating functions
  • Temperature range +50°C to -180°C
  • Freezing rates of 0.01° to 99.9° per minute
  • Program temperature hold of 1 second to 99 hours
  • Six pre-set easy to run freeze programs

Specifications

Overview

Chamber Data

  • Power Requirements:
    120 volt, 50/60 Hz, 10 amp, or 230 volt, 50/60 Hz, 10 amp
  • Outside Depth Dimensions:
    25 1/2" (648 mm) (including vent)
  • Outside Height Dimensions:
    29 1/4" (743 mm) (including computer)
  • Outside Width Dimensions:
    19 1/16" (484 mm) (including hose connection)
  • Inside Depth Dimensions:
    9 9/16" (243 mm)
  • Inside Height Dimensions:
    13 3/4" (349 mm)
  • Inside Width Dimensions:
    14" (356 mm)
  • Capacity:
    28 Liters
