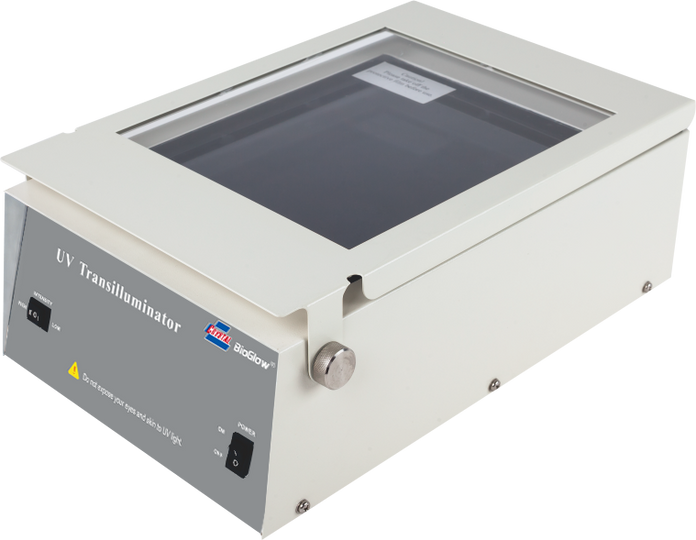

Crystal Industries - ZT-30A - UV Transilluminators
Features
BioGlow UV Transilluminators provide exceptional performance in a compact size, saving valuable bench space, with an optimized anti-glare filtered glass area to deliver uniform illumination. Each unit offers two-position intensity control settings, HIGH (100%) intensity for viewing weak fluorescent signals and LOW (50%) to reduce DNA damage during long exposure times. Each Crystal BioGlow UV Transilluminator comes with a UV protection cover to protect the user.
- Choice of 254nm, 312nm, or 365nm models with High (100%) and LOW (50%) intensity settings
- Durable, hinged UV protection cover
- A specially processed UV filter reduces background noise
- The anti-glare surface ensures uniform UV light emission to guarantee clear and reproducible results
- 200mm x 240mm filter size facilitates viewing of larger gels or multiple smaller gels
Specifications
Overview
-
Nominal Height:4.5" (11.43 cm)
-
Nominal Width:9.5" (24.13 cm)
-
Nominal Length:15" (38.1 cm)
Technical Data
-
UV Wavelength:365 nm
-
UV Window Size:200 x 240 mm (7.9 x 9.5 inch)
-
UV Intensity:Low Intensity 627 µW/cm², High Intensity 1297 µW/cm²
-
Operating Environment - Ambient Temperature:5°C~40°C
-
Operating Environment - Ambient Relative Humidity:≤90%
-
Power Supply:AC110V±11V, 60Hz
-
Max Power Consumption:50 W
-
Net Weight:7 kg (15.4 lb)
-
IP Protection Rating:IP21
-
Certifications:CE
