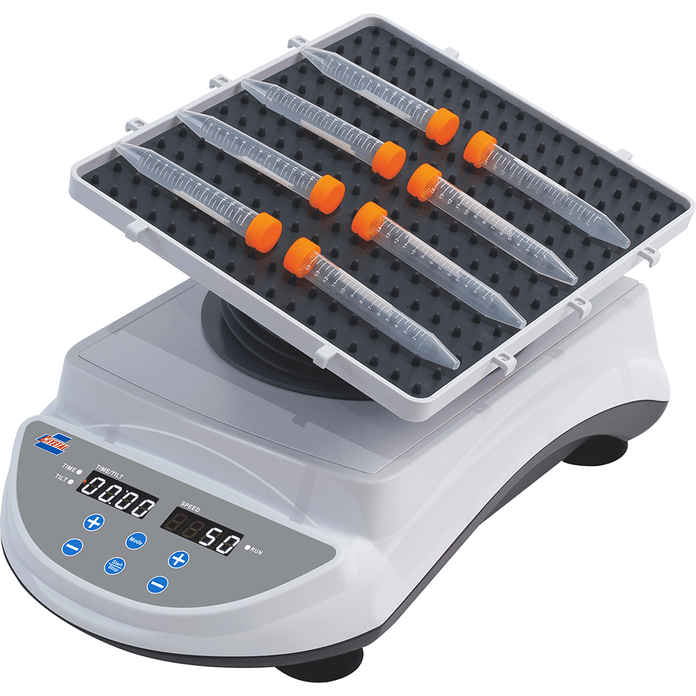

Crystal Industries - NS-14UA - Large Capacity 2D Rocker
Features
2D Platform Rockers are ideal for blotting and staining applications as well as gentle mixing of solutions and reagents. Space-saving design and robust construction provide durability, reliability, and quiet operation.
- All models include a dimpled non-skid mat
- Large platforms with hooks for rubber strips easily accommodate many tubes, flasks, and bottles
- NS-05UA and NS-14UA models feature adjustable speed and timer

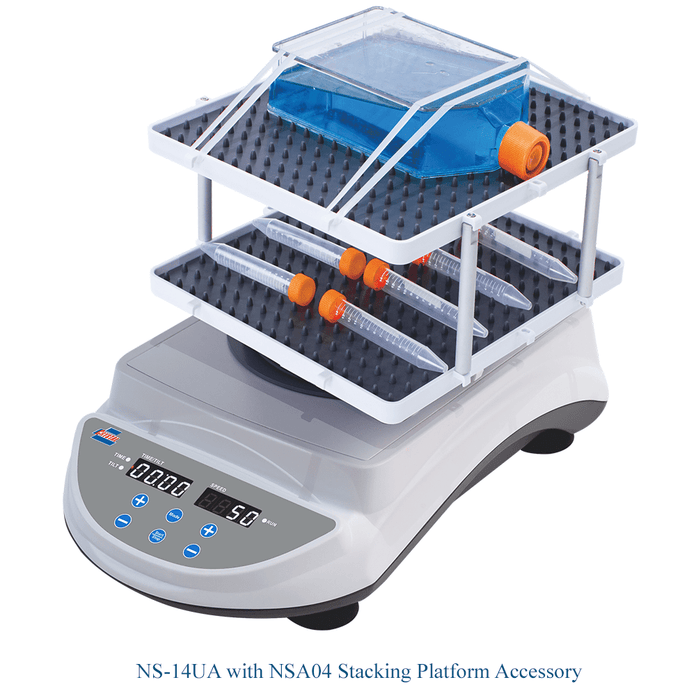

- NS-14UA model features adjustable speed, timer, and tilt angle
- All models are suitable for use in a cold room and standard incubator environments
Specifications
Overview
-
Nominal Height:8.2" (20.83 cm)
-
Nominal Width:17.3" (43.94 cm)
-
Nominal Length:11.7" (29.72 cm)
Technical Data
-
Speed:1~50 RPM
-
Speed Accuracy:±1 RPM
-
Tilt Angle:1~15° (Adjustable in 1° increments)
-
Timer:0~9999 min
-
Platform Dimensions:307 x 167 mm (12.1 x 10.5 inch)
-
Max Load:4.5 kg (9.9 lb)
-
Display:LED
-
Accessories Included in Standard Packaging:NSA02 (Dimpled Rubber Mat) and 6 PCS of NSA01 (Rubber Strips)
-
Ambient Temperature:5°C~40°C
-
Ambient Relative Humidity:≤80%
-
Power Supply:AC110V±11V, 60Hz
-
Max Power:13.5W
-
Net Weight:14 kg (30.9 lb)
-
Protection Level:IP21
-
Certifications:cCSAus, CE, RoHS, WEEE
