AEOLUS IS-ACMA compact incubator shaker for micro and deepwell plates, 3mm orbit.

Features

AEOLUSTM IS-AH3GA Compact Non-CO2 Stackable Incubator Shakers for Microplates (3mm Orbit)



The Compact CO2/nonCO2 Microplate Incubator Shakers feature a 3mm orbit, optimized for thorough mixing of microplates and deep-well microplates with variable shaking speeds of 150-1000 rpm for gentle mixing to ensure the well contents remain in place or for more vigorous agitation for effective aeration across the small surface area of each of the wells.



  • 7" high-res color touch screen with intuitive graphic interface
  • Innovative chamber design features smooth rounded internal corners for easy cleaning
  • Infra-Red (IR) CO2 sensor for precise and reliable CO2 detection
  • Optional WiFi and RS485 control
  • UV lights for easy sterilization
  • Audible and visual alarms
  • Mirror finish, pharmaceutical-grade stainless steel chamber

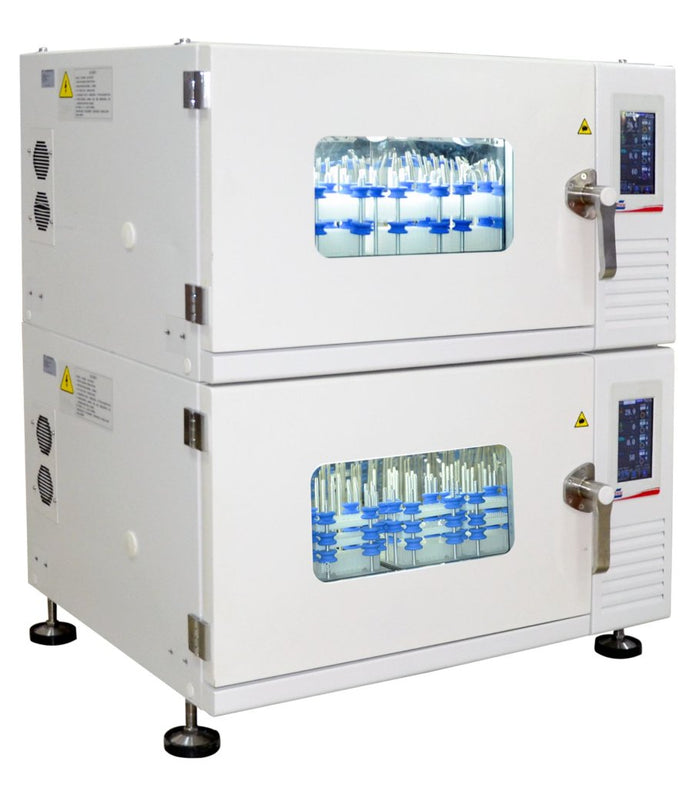

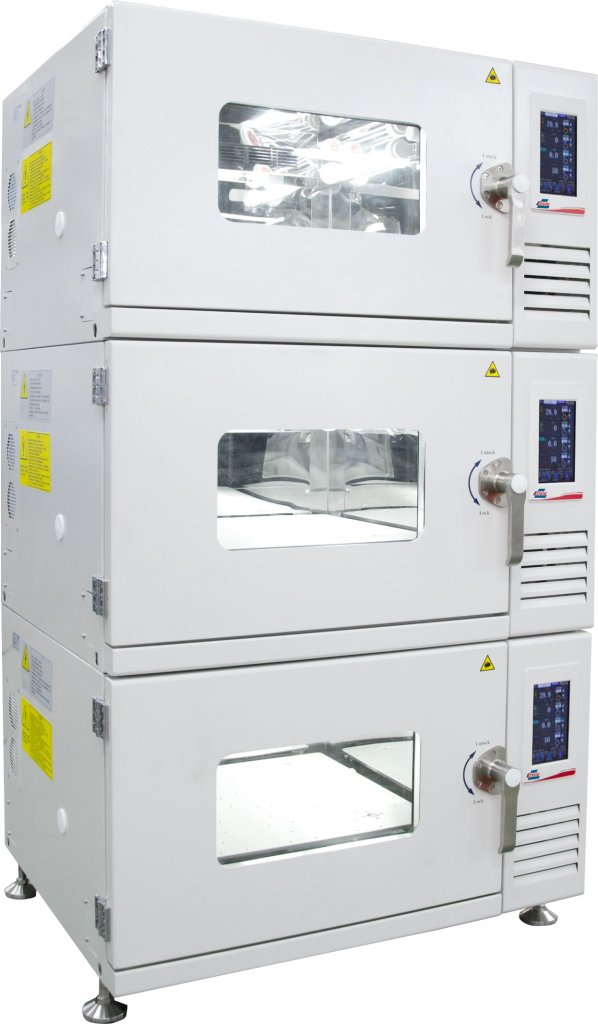

  • Stackable design up to 3 units

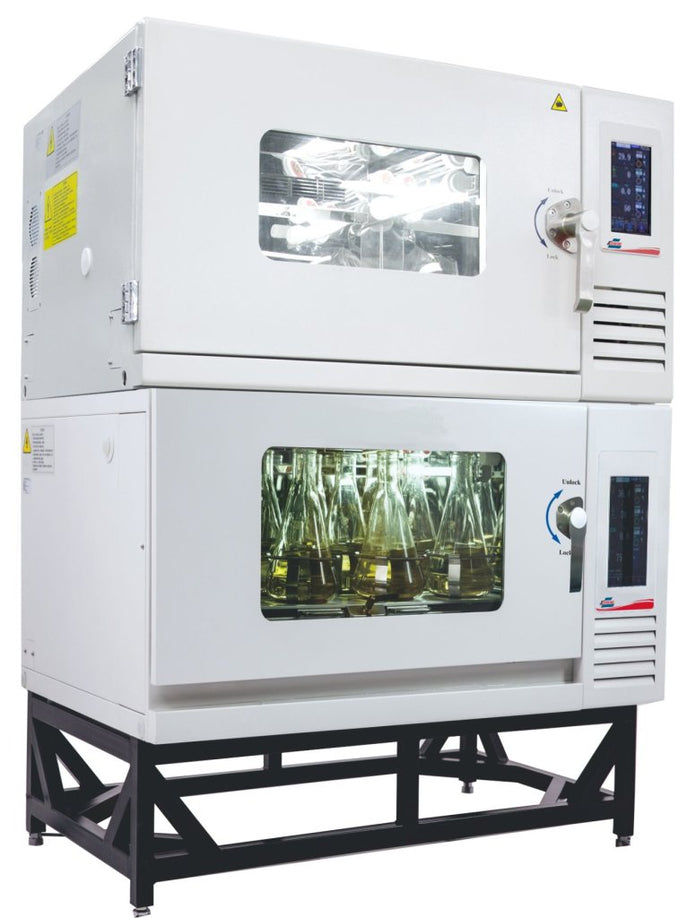

  • Also available in 25mm and 50mm orbit models
  • Able to stack with 25 and 50mm orbit models

Specifications

Overview

  • Nominal Height:
    20.87" (53.01 cm)
  • Nominal Width:
    38.19" (97.0 cm)
  • Nominal Length:
    30.71" (78.0 cm)
  • Internal Height:
    11.5" (29.21 cm)
  • Internal Width:
    25.75" (65.41 cm)
  • Internal Length:
    23.82" (60.5 cm)

Technical Data

  • Platform Dimensions WxD:
    570 x 500 mm
  • Max Capacity:
    Microplate
  • Capacity:
    180L
  • Max Load:
    10 kg (22.05 lbs.)
  • Temp. Range:
    Room Temp. Minus 18°C~60°C (Lowest Temp is 4°C)
  • Temp Accuracy:
    ±0.1 °C
  • Temp. Uniformity:
    ±0.3°C (@37°C)
  • Temp Recover Time After Door is Opened for 30s:
    ≤6 min (@37°C)
  • Speed:
    0(stop), 150-1000 rpm
  • Speed Accuracy:
    ±1 rpm
  • Speed Drive:
    Magnetic Drive
  • Orbital Diameter:
    3 mm
  • Relative Humidity Type:
    Active
  • Max Humidity:
    90%
  • Programmable Segments:
    12 Segments
  • Timer:
    0~999 hr 59 min
  • Illumination:
    LED Lamps on Left and Right Walls
  • Disinfection:
    UV Lamps on Left and Right Walls
  • Door Opening Direction:
    Leftward
  • Internal Working Height:
    290 mm
  • Net Weight:
    195 kg
  • Display:
    7" Color Capacitive Touch Screen
  • Parameter Protection:
    Password Protected
  • Data Stored:
    Time, Temperature, Speed, Instrument Status
  • Data Storage Interval:
    1 Minute
  • Screen Data Display:
    Displays Most Recent 7 Days of Data
  • USB Data Export:
    Most Recent 912 Days of Data
  • Automatic Defrost:
    Yes
  • Noise Level:
    ≤55 dB (When Compressor is Running)
  • Auto - Recovery after Power Interruption:
    Yes
  • Power When Heating:
    ≤450 W
  • Power When Cooling:
    <180 W
  • Power Supply:
    AC 110V±11V, 60Hz
  • Power:
    ≤630 W
  • Mobile Monitoring and Control by WiFi:
    Optional through Accessory and App
  • Warranty:
    2 Years Parts and Service
  • Certification:
    CE
