AIREA™ CO2 incubator 191L, air jacket, dry heat sterilization, touch screen.

Features

The AIREA™ CO2 Incubator (CI-191CXA) is an air-jacketed, dry-wall insulation CO2 Incubator with temperature, CO2 concentration, and humidity functions. With this incubator, customers can visualize performance and data sets on the AIREA™ Remote Monitoring accessory and app.



  • Chamber HEPA air filtration provides class 100 purification
  • Infra-Red (IR) sensor precisely and reliably detects CO2 concentration
  • Easy sterilization process at 140°C dry heat
  • Temperature controlled door prevents condensation and provides higher temperature stability and uniformity

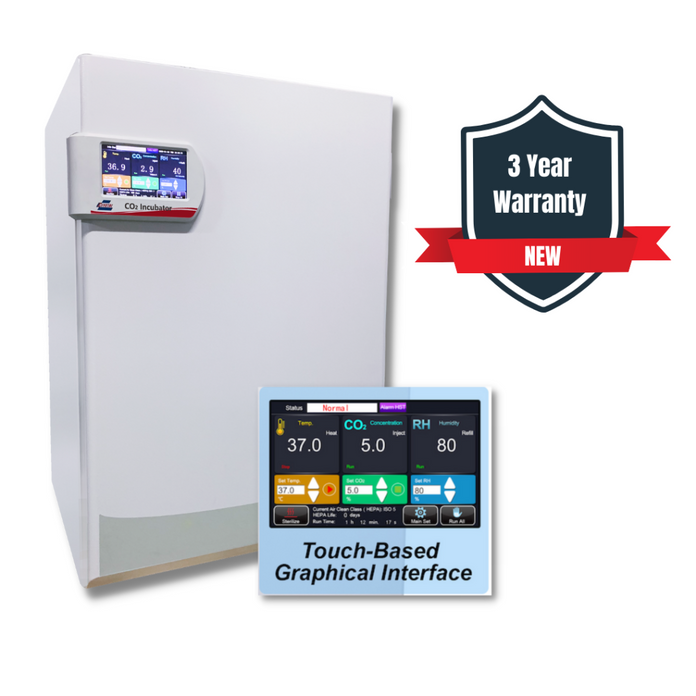

  • Intuitive 7" hi-res capacitive touchscreen
  • Includes 4 shelves (can hold up to 13)

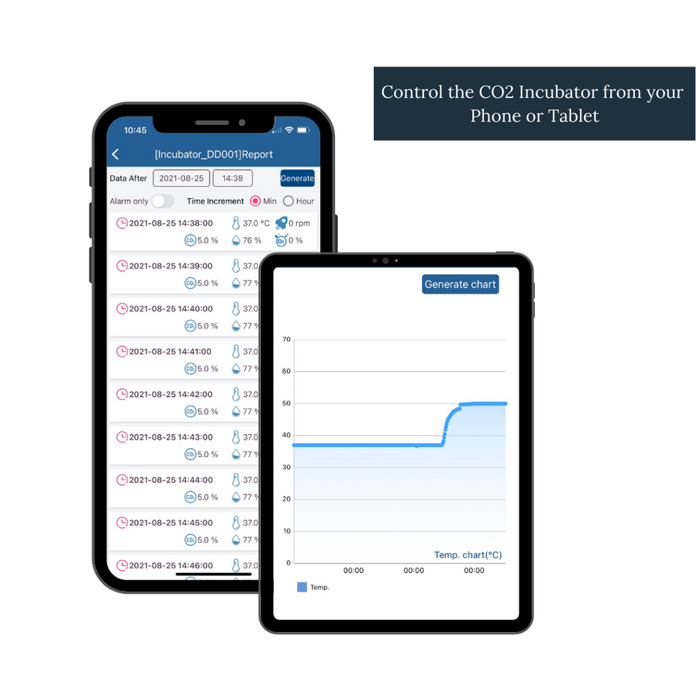

  • Smart capabilities allow user to control CTI CO2 Incubator from a phone or tablet
  • Visualize performance and changes over time with function performance graphs
  • Audible and visual alarms alert user if parameters fluctuate outside set ranges
  • 3 year warranty



Watch the video

Specifications

Overview

  • Nominal Height:
    39.84" (101.19 cm)
  • Nominal Width:
    27.54" (69.95 cm)
  • Nominal Length:
    26.4" (67.06 cm)
  • Internal Height:
    27.56" (70.0 cm)
  • Internal Width:
    20.08" (51.0 cm)
  • Internal Length:
    21.26" (54.0 cm)
  • Capacity:
    6.75

Technical Data

  • Temp. Range:
    Room Temp. Plus 5°C-60°C
  • Temp. Accuracy:
    ±0.1°C (@ 37°C) ±0.3°C max
  • Temp. Uniformity:
    ±0.3°C (@ 37°C) ±0.6°C max
  • CO2 Sensor:
    IR
  • CO2 Concentration Range:
    0-20%
  • CO2 Concentration Accuracy:
    ±0.1%
  • Temperature Recovery Time after Opening Door:
    ≤ 6 min (@37°C)
  • CO2 Recovery Time after Opening Door:
    ≤ 6 min (@5%)
  • Relative Humidity Type:
    Natural Evaporation from Humidity Pan
  • Disinfection:
    140°C Dry Heat Sterilization
  • Disinfection Duration:
    12 Hours
  • Direction of Door Swing:
    Right
  • Display:
    7" Color Capacitance Touch Screen
  • Protection for Set Parameters:
    Password Protected
  • Data Display:
    Most Recent 7 Days of Data
  • Data Curve Display:
    Temp. Curve, CO2 Curve, RH Curve, Speed Curve (with CO2 Resistant Shaker)
  • Max Number of Shelves:
    13
  • Standard Number of Shelves:
    4
  • Shelf Dimensions (D x W):
    472 x 472 mm (18.85 x 18.85 inch)
  • Max Load per Shelf (When Sliding in and out):
    15 kg (33.06 lb)
  • Max Load per Shelf (Stationary):
    20 kg (40.09 lb)
  • Insulation:
    Dry-Wall
  • U Disk Download Date:
    Yes
  • Data Storage:
    Most Recent 912 Days of Data
  • Data Storage Increments:
    1 min
  • Data Storage Types:
    Time, Temp, CO2 Concentration, RH, Machine Status
  • Auto-Run after Power Recovery:
    Yes
  • Noise Level:
    ≤53dB
  • Water Sparge Resistant:
    Yes
  • Interface Languages:
    English/Chinese
  • Volume of Humidity Pan:
    3L
  • Power:
    ≤1100W
  • Power Supply:
    AC 110V/60Hz
  • Mobile Monitor and Wifi Control:
    Optional
  • PC Monitor and Control by RS485:
    Optional
  • Net Weight:
    125 kg (275.58 lb)
  • Temp. Alarm:
    Adjustable
  • CO2 Alarm:
    Adjustable
  • Chamber HEPA Filter:
    Yes (Class 100 Environment)
  • Certifications:
    CE
