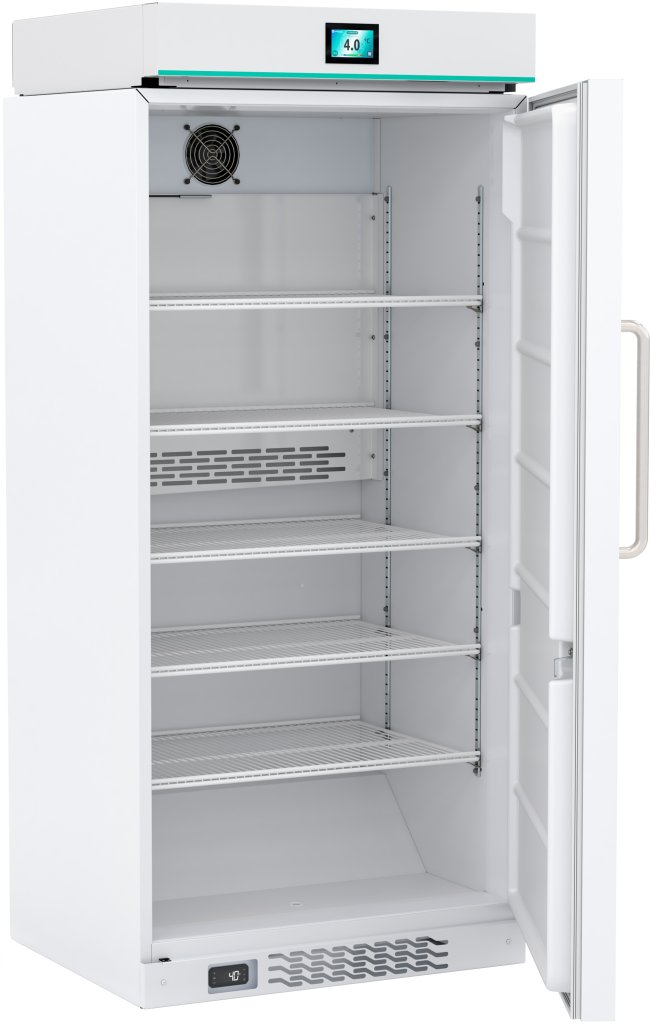

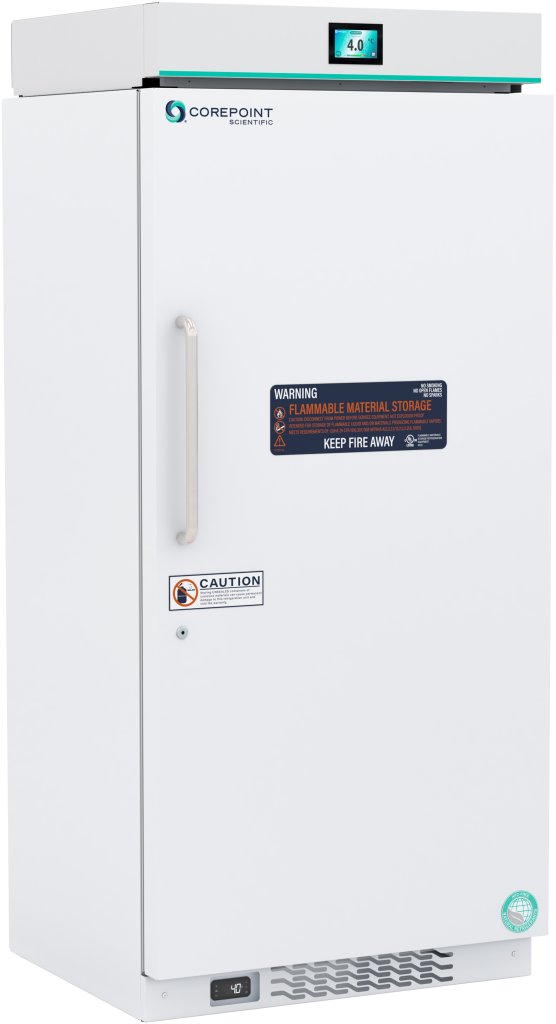

This 30 cu. ft. touchscreen flammable storage refrigerator offers a cutting-edge solution for storing volatile materials in laboratory and industrial settings.

Features

This refrigerator provides precise temperature control through microprocessor technology. Experience tight temperature uniformity with an operation range of 2°C to 10°C. This advanced unit features an intuitive touchscreen digital display that offers a user-friendly interface including digital 24-hour temperature charting with data logging capabilities. For enhanced safety, it includes a comprehensive array of customizable audible and visual alarms, such as high/low temperature, sensor error, power failure, door ajar, and low battery alerts—all alarms including a battery backup for continuous monitoring. Utilizing EPA SNAP compliant hydrocarbon refrigerants, this unit minimizes environmental impact while maximizing energy efficiency. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. Adjustable interior shelving allows for versatile organization. With its integrated alarms and enhanced safety features, the CPS-HC-FRP-30-TS delivers advanced performance for the safe storage of flammable substances.

Specifications

Overview

  • Nominal Height:
    79" (200.66 cm)
  • Nominal Width:
    35.75" (90.81 cm)
  • Nominal Length:
    35.5" (90.17 cm)
  • Internal Height:
    65" (165.1 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    30

General Description and Application

  • Door:
    One solid swing, right hinged, stainless steel door handle, magnetic door gasket
  • Shelves:
    Five adjustable
  • Drawers:
    Non-applicable
  • Mounting and Installation:
    Leveling legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Forced draft circulation
  • External Probe Access:
    3/4" probe access port on rear wall
  • Insulation:
    EPA compliant high density urethane foam
  • Exterior Materials:
    Powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Five (5) year compressor parts warranty
  • Product Weight (lbs):
    350
  • Shipping Weight (lbs):
    380
  • Rated Amperage:
    3.1 amps
  • Power Plug/Power Cord:
    NEMA 5-15P plug, 6 ft long cord
  • Facility Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification:
    UL listed per UL 60335-1 and UL 60335-2-89 standards, c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45

Performance

  • Uniformity (Cabinet Air):
    +/- 1.6°C
  • Stability (Cabinet Air):
    +/- 1.0°C
  • Maximum Temperature Variation (Cabinet Air):
    3.6°C Total
  • Energy Consumption (kWh/day):
    < 1.7 KWh/day
  • Average Heat Rejection (BTU/hr):
    520 BTU/hr
  • Pull Down Time to Nominal Operating Temp:
    <35 min (empty)

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R600a Isobutane
  • Condenser:
    Static - exterior walls of cabinet
  • Evaporator:
    Fin and tube design, high efficiency fan, hazardous location rated
  • Defrost:
    Off-cycle defrost, no heat added
