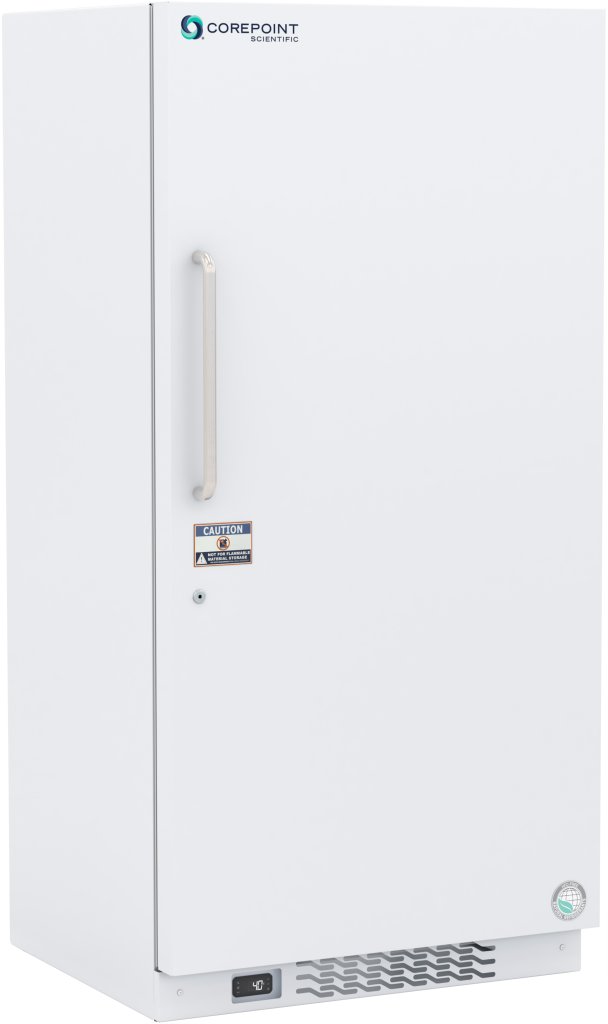

Corepoint Scientific - CPS-HC-30R - 30 Cu. Ft. Laboratory Refrigerator Solid Door

Corepoint Scientific - CPS-HC-30R - 30 Cu. Ft. Laboratory Refrigerator Solid Door
Corepoint Scientific - CPS-HC-30R - 30 Cu. Ft. Laboratory Refrigerator Solid Door

Corepoint Scientific - CPS-HC-30R - 30 Cu. Ft. Laboratory Refrigerator Solid Door

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Designed for reliable and eco-conscious laboratory storage, this 30 cu. ft. standard laboratory refrigerator offers versatile performance for lab environments.

Features

The temperature control is powered by microprocessor technology and protected by audible and visual alarms. It maintains tight temperature uniformity with an adjustable operating range of 2°C to 10°C. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. This unit offers 30 cubic feet of spacious storage and five adjustable shelves for versatile organization. With a low energy consumption and environmental benefits, the CPS-HC-30R is an efficient and dependable solution for general laboratory applications.

Specifications

Overview

  • Nominal Height:
    72.5" (184.15 cm)
  • Nominal Width:
    35.75" (90.81 cm)
  • Nominal Length:
    35.5" (90.17 cm)
  • Internal Height:
    65" (165.1 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    30

General Description and Application

  • Door:
    One solid swing, right hinged, stainless steel door handle, magnetic door gasket

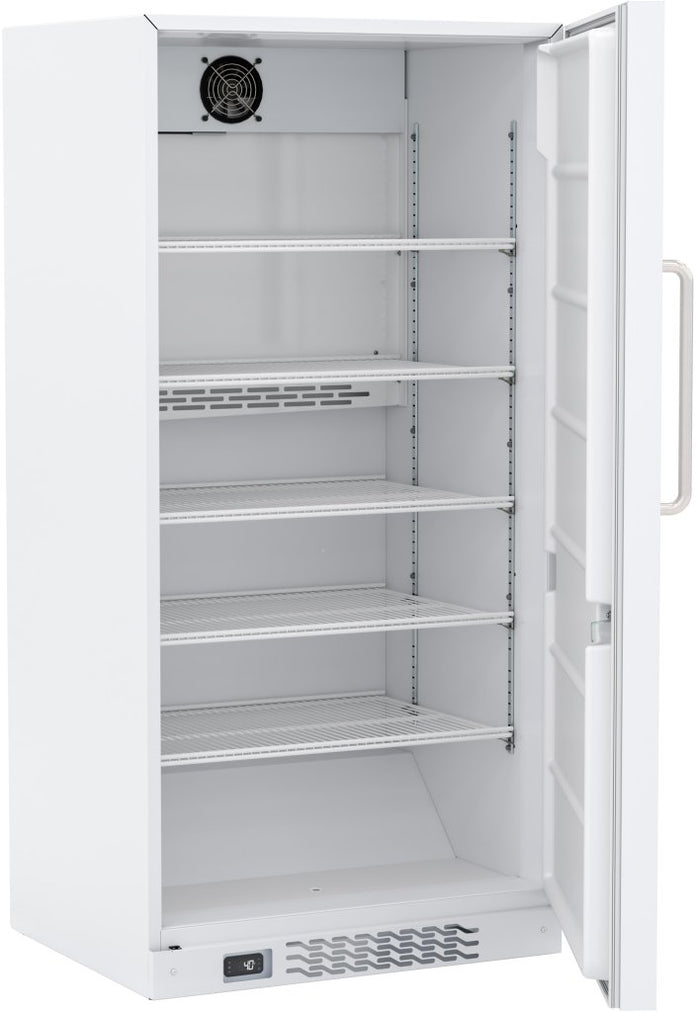

  • Shelves:
    Five adjustable
  • Drawers:
    Non-applicable
  • Mounting and Installation:
    Leveling Legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Forced draft circulation
  • External Probe Access:
    3/4" probe access port on rear wall
  • Insulation:
    EPA compliant high density urethane foam
  • Exterior Materials:
    Powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Five (5) year compressor parts warranty
  • Product Weight (lbs):
    330
  • Shipping Weight (lbs):
    360
  • Rated Amperage:
    3.1 Amps
  • Power Plug/Power Cord:
    NEMA 5-15P plug, 6 ft long cord
  • Facility Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification:
    UL listed per UL 60335-1 and UL 60335-2-89 standards, c UL listed per CSA C22.2 No. 120 standard

Performance

  • Uniformity (Cabinet Air):
    +/- 1.6°C
  • Stability (Cabinet Air):
    +/- 1.0°C
  • Maximum Temperature Variation (Cabinet Air):
    3.6 °C Total
  • Energy Consumption (kWh/day):
    < 1.5 KWh/day
  • Average Heat Rejection (BTU/hr):
    500 BTU/hr
  • Pull Down Time to Nominal Operating Temp:
    <35 min (empty)

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R600a Isobutane
  • Condenser:
    Static - exterior walls of cabinet
  • Evaporator:
    Fin and tube design, high efficiency fan
  • Defrost:
    Off-cycle defrost, no heat added
