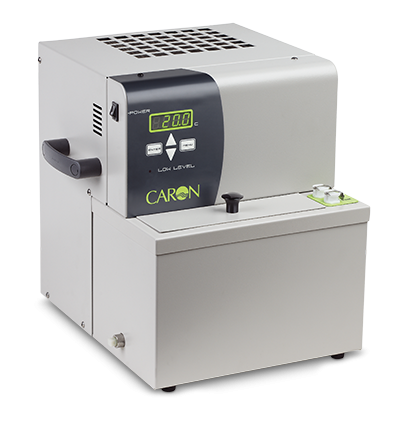

Caron - 2050-1-4 - Baths/Circulators

Features
When space is at a premium, but reliable thermal management is non-negotiable, Caron's 2050-1 is the answer. This compact cooling system seamlessly blends strong heating, cooling, and circulation capabilities within its cube dimensions, catering to a diverse range of applications, from electron microscopes to lasers. Its features are tailored for optimum functionality
Key Features
- Temperature range of -15°C to +90°C
- 6.5 LPM max pumping power
- Precise temperature control
- Eco-friendly non-HFC refrigerant
- Compact design of just over 1 square foot
Compact Dimensions
- Low unit height fits under counters or in small cabinets.
- Integral control head design optimizes space utilization.
- Occupies less than 1.5 cu.ft. of space (0.04 m³).
Durable and Efficient Design
- Chemical-resistant stainless-steel surfaces enhance durability.
- Sealed control panel ensures protection.
- Utilizing a "natural" refrigerant ensures long-term servicing ease.
Easy Setup and Use
- Quick-connect inlet and outlet fittings for convenience.
- User-friendly LED display with a simple push-button, menu-driven programming interface.
- Built-in over and under-temperature tracking alarms, along with low liquid level shutoff, ensures a safe, hassle-free operation.
Caron’s 2050-1 ensures reliable and efficient cooling solutions, making it the ideal choice for compact spaces and critical thermal management applications.
Specifications
Overview
-
Nominal Height:14" (35.56 cm)
-
Nominal Width:14" (35.56 cm)
-
Nominal Length:13.5" (34.29 cm)
-
Internal Height:6.5" (16.51 cm)
-
Internal Width:6" (15.24 cm)
-
Internal Length:2.25" (5.72 cm)
General Data
-
Temperature Range:-15°C to 90°C
-
Temperature Control:± 0.1°C
-
Temperature Controller:Digital display, PID control, 1/16 DIN
-
Cooling Capacity @ 20°C:1025 BTU/Hr, 300 Watts
-
External Pumping:6.5 LPM at 0' head
-
Heater:750 Watts
-
Safeties:Over-temperature heater safety & low liquid level alarm
-
Reservoir Capacity:1.4 gallons (5.3 liters)
-
Bath Reservoir/Lid Material:Stainless steel
-
Cabinet Material:Stainless steel and powder coated metal
-
Electrical:230V, 50/60 Hz, 5 Amps
-
Shipping Weight:53 lbs. (24.0 kg)
Downloads
-
Bath Circulator LiteratureDownload
Useful Links
-
Model 2050 ManualVisit Link
-
Specification Sheet - Models 2050-1Visit Link
