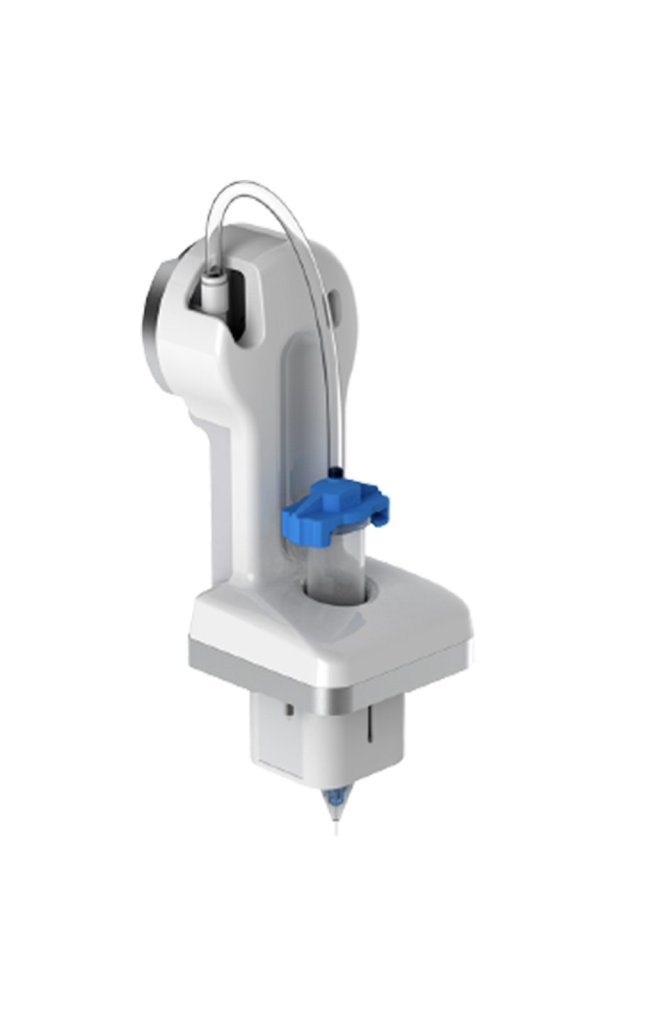

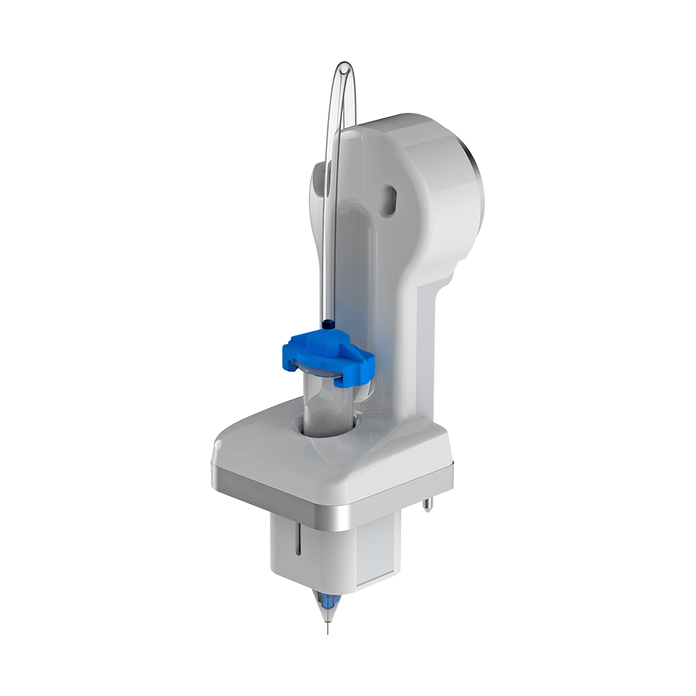

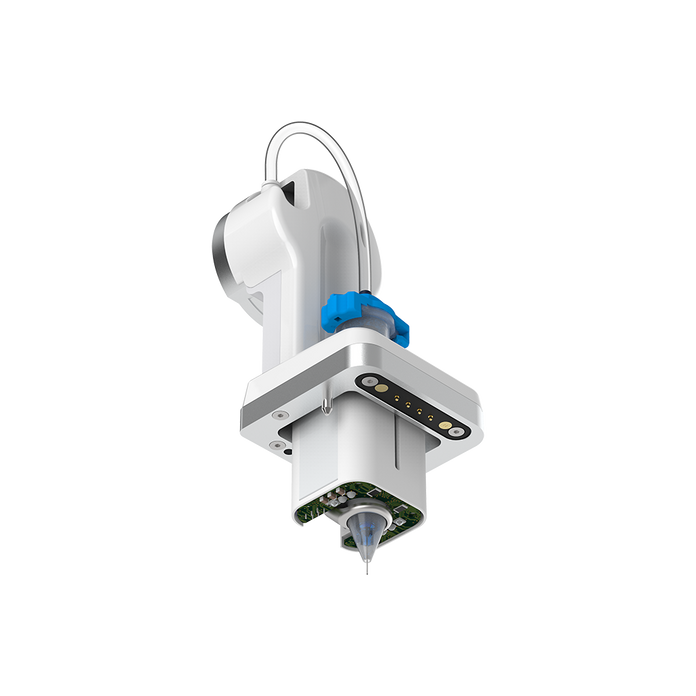

Pneuma Tool Heated / UV

The dispensing with Pneuma Tool print heads is based on pneumatic extrusion. The Pneuma Tool Heated/UV version comes with a heating function enabling a constant temperature from RT to +66 °C throughout the print head. Pneuma Tool Heated is also equipped with an integrated UV/Vis LED module emitting at a wavelength of 365 nm, 405 nm or 450 nm. It allows in situ photocrosslinking of the photosensitive non-viscous bioinks during the deposition process.

Pneuma Tools are compatible with various commercial and noncommercial low-to-medium viscosity hydrogel bioinks and pastes. It uses disposable and easily changeable syringe barrels together with compressed air. Compatibility with standard parts such as Luer lock needles and syringe barrels makes this dispensing head a cost-effective solution.

• Pneumatic driven
• Different type of pistons can be used with standard syringes
• Syringe standard size 10 cc (ml) (Nordsson as a one example from supplier)
• Optionally sold adapter for 3 cc (ml)
• Max dosing pressure 6 bar
• Standard luer lock needle connection
