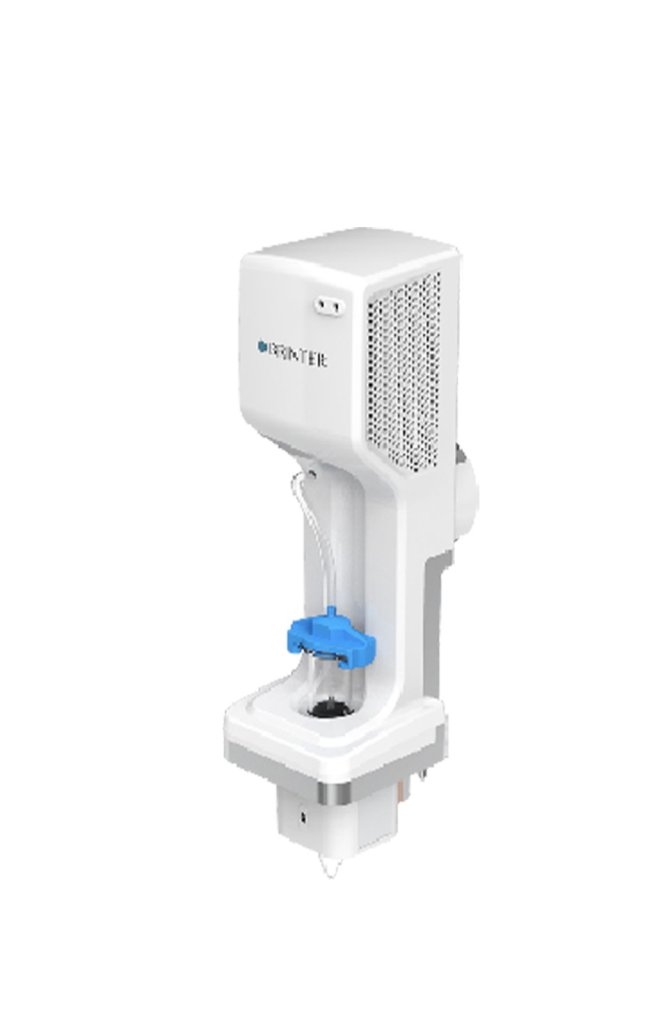

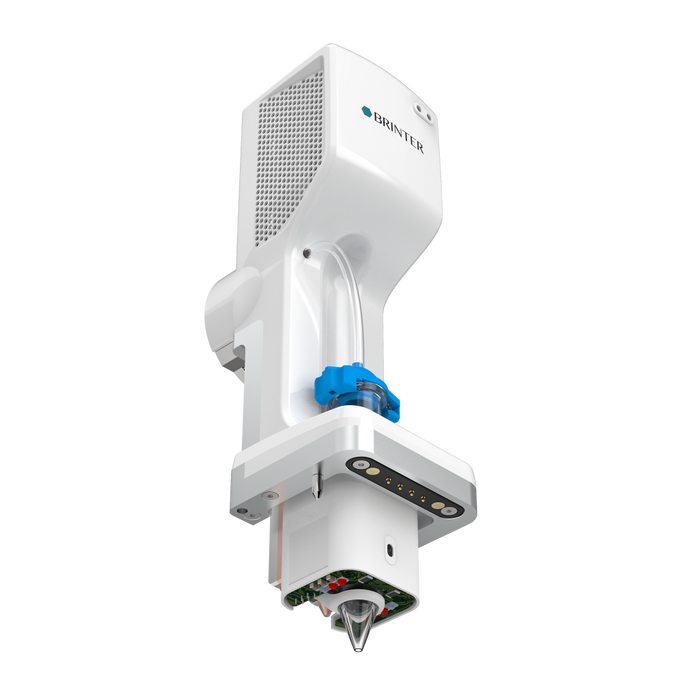

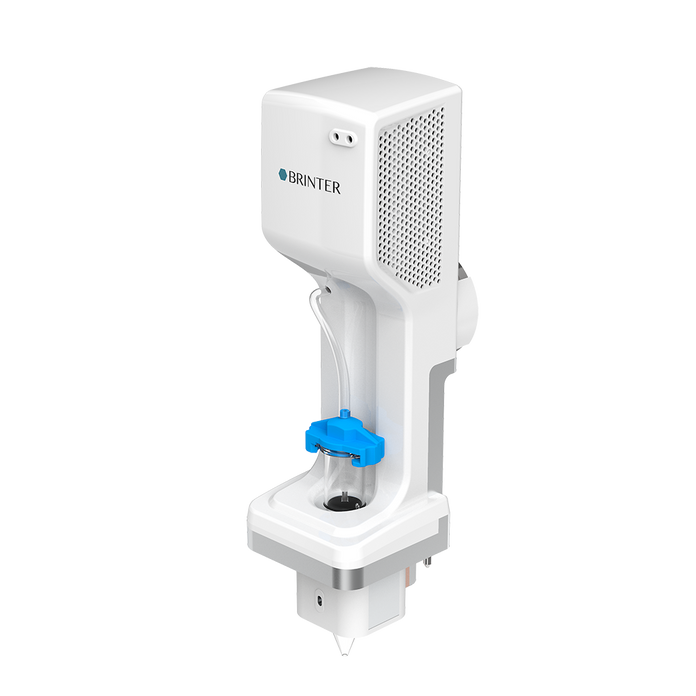

Pneuma Tool Cooled / UV

Pneumatic with UV light.

The dispensing with Pneuma Tool Cooled/UV print head is based on the pneumatic extrusion. The cooling function enables a constant temperature from +4 °C to RT throughout the print head syringe barrel. In addition, the print head is equipped with an integrated UV/Vis LED module emitting at a wavelength of 365 nm, 405 nm or 450 nm. It allows in situ photocrosslinking of the photosensitive non-viscous bioinks during the deposition process. Pneuma Tool Cooled is compatible with various commercial and noncommercial low-to-medium viscosity hydrogel bioinks and pastes.

• Pneumatic driven
• Different type of pistons can be used with standard syringes
• Syringe standard size 10 cc (ml) (Nordsson as a one example from supplier)
• Optionally sold adapter for 3 cc (ml)
• Max dosing pressure 6 bar
• Standard luer lock needle connection
