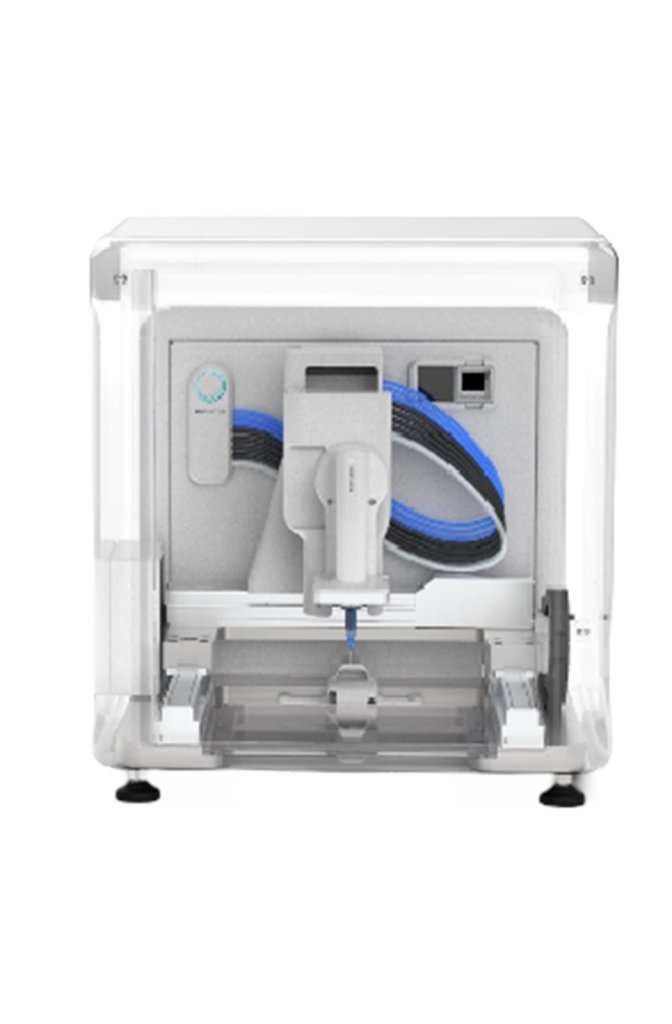

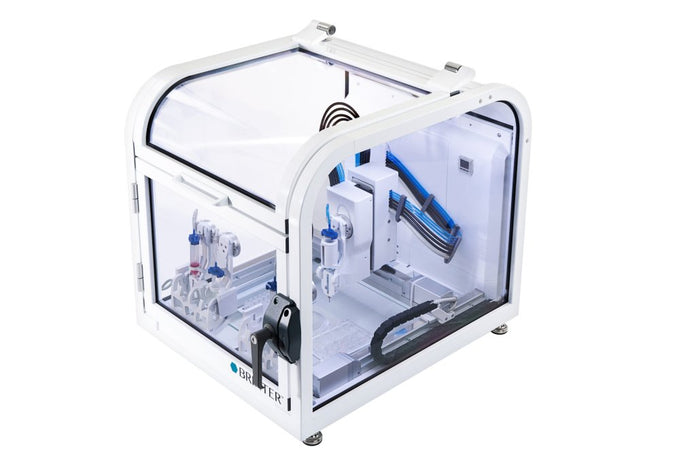

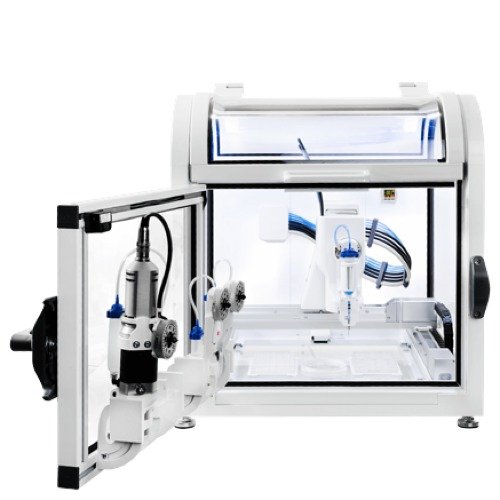

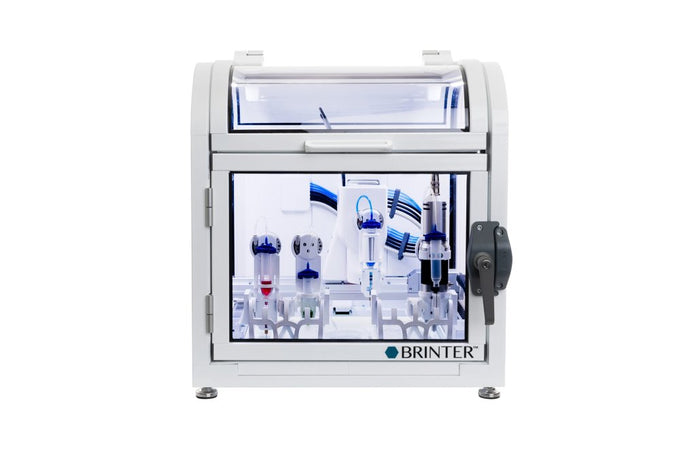

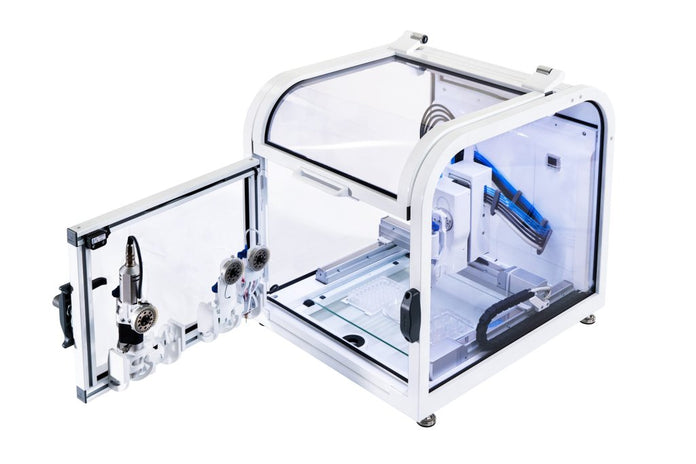

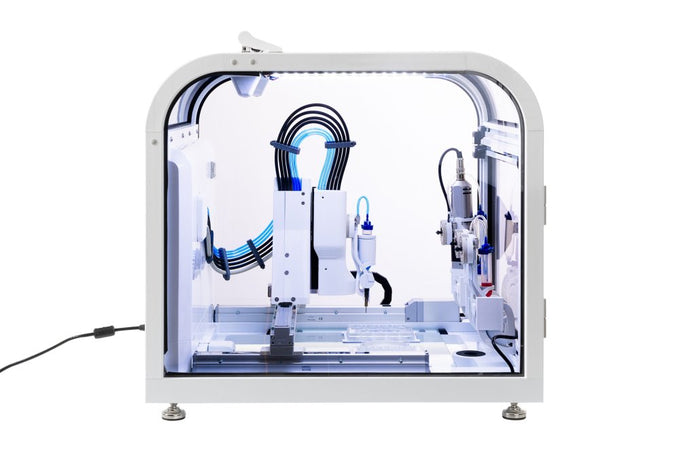

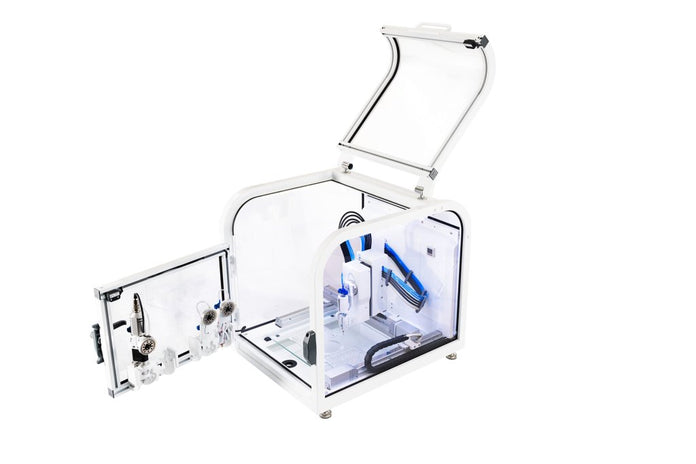

Brinter ONE Modular 3D Bioprinter

A modular 3D bioprinter platform offering variable printing modalities in a single printing platform. Print an unlimited number of bio materials.

Of materials sciences, printed drugs, tissue blocks, biosensors, materials and organs at Universities, University hospitals ans Research organizations. The ongoing software & hardware development lets us design customized systems for each project.Genuine Multimaterial 3D (bio)printing with several printing technologies.

Multimaterial 3D (Bio)Printing with several printing technologies: Hydrogels suitable for cell culture usually have quite low viscosity, but 3D structures with defined shape usually require stiff materials (which are unable to support e.g. high cell viability).

Up to four print heads of Brinter® at once allow fully automated combined printing of stiff and soft materials and thus enable genuine multimaterial printing of highly complex tissue

structures. Available printing technologies include valve-free pneumatic extrusion (Pneuma Tools), screwdriven mechanical extrusion, i.e. endless piston pump (Rotary Tools & Visco Tool), electromagnetically actuated microvalve droplet dispensing (Droplet Tool), and thermoplastic granulate extrusion (Granu Tool).

The Brinter® software is an intuitive web browser-based user interface that requires no downloads. The UI comes with an integrated slicer for the conversion of a 3D object model (.STL format) to specific instructions for the printer (g- code format). The only accessory you need is any 3D design software capable of exporting STL files so that you can design the printable CAD models. Once your structure has been imported into the slicer, you can configure the internal mesh along with a wide range of other printing parameters, such as support and layer specific parameters before sending the g-code to Brinter® to start the actual print job.

• You can have 4 print heads onboard Brinter, and you can keep switching them to as many different ones as you need to.
• Cost-effective future print head updates/upgrades without the need to purchase a new printer.

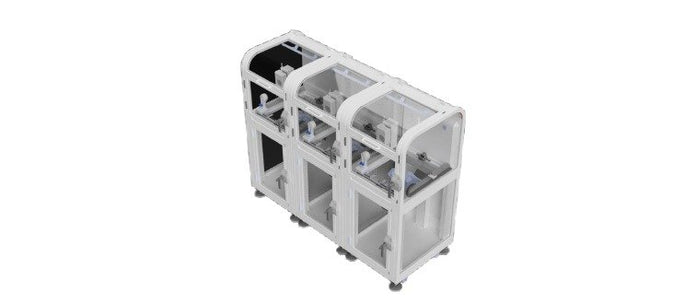

• Upgradable from desktop to mass production.
• Automatic print head change and print head recognition enable the printing of different materials in the same construct./li>
• Patented automatic XYZ calibration system for the print heads.
• Conventional Germicidal UV LEDs or nonharmful blue light photonic disinfection
• Print heads compatible with standard Luer-lock syringes and needles.
