The Accuris SmartDrop™ series of nano spectrophotometers provides quick and easy quantification of small samples. Utilizing a small sample volume eliminates the need for dilutions, providing more accurate results.

Features

SmartDrop Nano Spectrophotometers for Microvolume Analysis of DNA, RNA, and Proteins.



  • Quick and accurate results from a sample droplet
  • Touch screen control panel, no PC or software required
  • Built-in printer and cuvette port for OD600 readings
  • XF model includes fluorometer for sensitive DNA quantification



The Accuris SmartDrop™ series of nano spectrophotometers provides quick and easy quantification of small samples. Utilizing a small sample volume eliminates the need for dilutions, providing more accurate results.

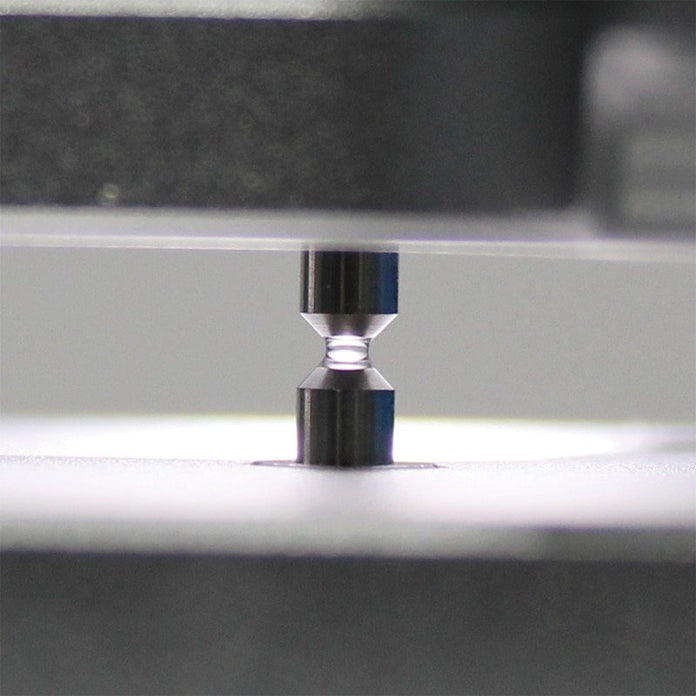

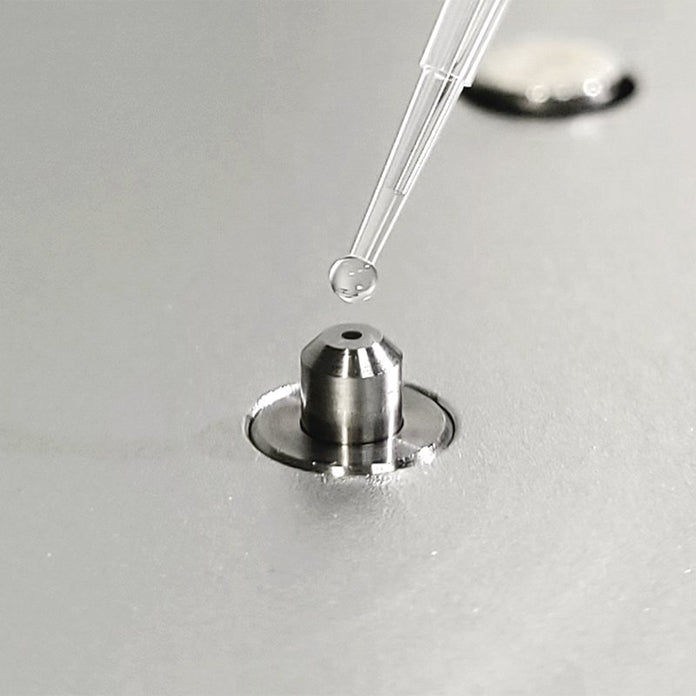

A full-color, 7" touchscreen with icon-driven menus and preprogrammed protocols gets users up and running quickly. No external computer is required. Each unit features a quartz pedestal onto which a drop of sample is placed. The arm is lowered, and the drop is stretched into a liquid column of specified length for spectral analysis. DNA, RNA, and protein concentrations and purity numbers are displayed in a matter of seconds.



The resulting data can be printed, saved in the SmartDrop's onboard memory, or exported via USB as an Excel file. All SmartDrop models include an integrated printer. For OD600 readings, each model includes a cuvette port and two optical glass cuvettes. Three SmartDrop models are available to meet a range of applications and budgets.

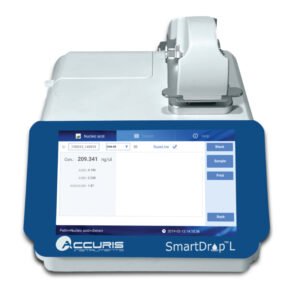

SmartDrop L



  • Ideal for basic DNA/RNA/protein quantification and purity
  • Affordable LED and silicon detector technology
  • Fixed 0.5mm path length, detect up to 2500 ng/µL of dsDNA

SmartDrop L is the affordable choice for laboratories needing to determine nucleic acid and protein concentrations and purity of samples. The LED light source and silicon photocell sensor provide readings at 260 and 280 nm. Samples from 1.0 to 2.0 µL are loaded directly on the pedestal. Results are provided in about 5 seconds. The software automatically calculates and displays 260/280 ratios.



Watch the video

Specifications

Overview

  • Nominal Height:
    7.3" (18.54 cm)
  • Nominal Width:
    8.2" (20.83 cm)
  • Nominal Length:
    11" (27.94 cm)

Technical Data

  • Display:
    7-inch touch screen
  • Minimum Sample Size:
    1.0 µl - 2.0 µl
  • Path Length:
    0.5 mm
  • Light Source:
    UV LED
  • Detector:
    UV Silicon Photocell
  • Wavelength:
    260, 280, 600 nm
  • Absorbance Range:
    0.2 - 50 A (10 mm equivalent)
  • Absorbance Precision:
    0.005 A
  • Lower Limit of Detection (dsDNA):
    10 ng/µl
  • Lower Limit of Detection (BSA):
    0.1 mg/ml
  • Upper Limit of Detection (dsDNA):
    2.500 ng/µl
  • Upper Limit of Detection (BSA):
    75.0 mg/ml
  • Detection Time:
    <6 seconds
  • Communication Ports:
    USB for data export
  • Voltage Input:
    DC 24V, 2A
  • Power:
    25W
  • Weight:
    7.9 lbs (3.6 kg)

Cuvette OD600 Detection

  • Absorbance Range:
    0,0 - 4,0 A
  • Absorbance Stability:
    [0,3] ≤ 0,5%, [3,4] ≤ 2%
  • Absorbance Repeatability:
    [0,3] ≤ 0,5%, [3,4] ≤ 2%
  • Absorbance Precision:
    [0,2] ≤ 0,005 A, [2,3] ≤ 1%, [3,4] ≤ 2%
