Benchmark Scientific - H2505-GROUP - SureTemp™ Dual Convection Incubators
Features
The new SureTemp™ Incubator series provides the highest level of temperature control with uniformity and stability levels that are unmatched by competitive models in the same class.

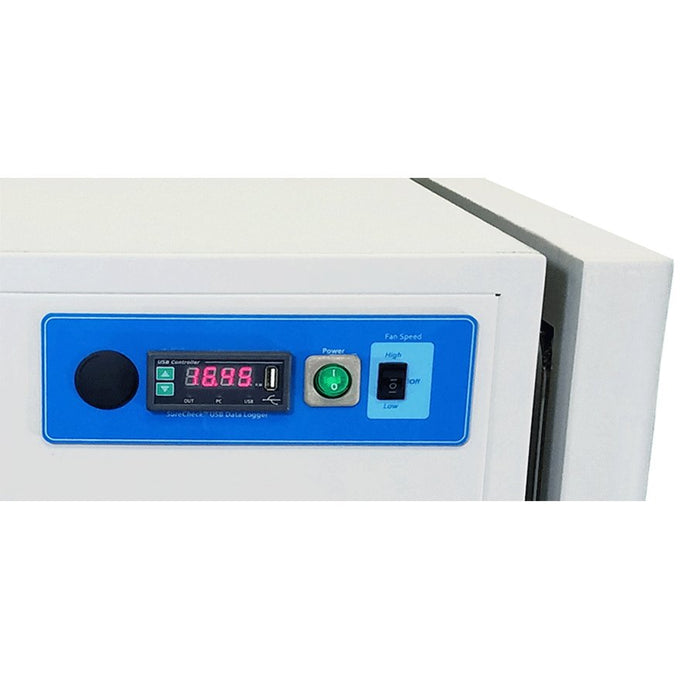

Each incubator is equipped with the SureCheck™ data logging system for verification of chamber temperature. The SureCheck system records temperature data points as often as every 60 seconds and stores this information on a flash drive. The data can then be viewed on any computer capable of reading a .csv file from the flash drive. The recorded data can also be used to plot temperature points on a graph and for analysis of temperature fluctuation over time.

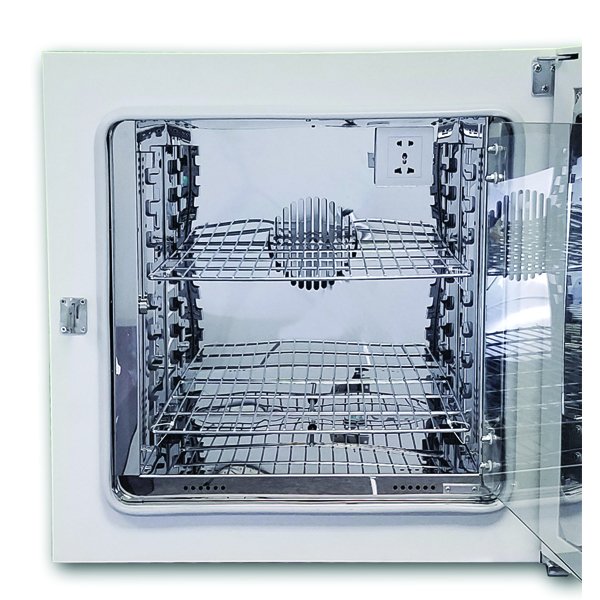

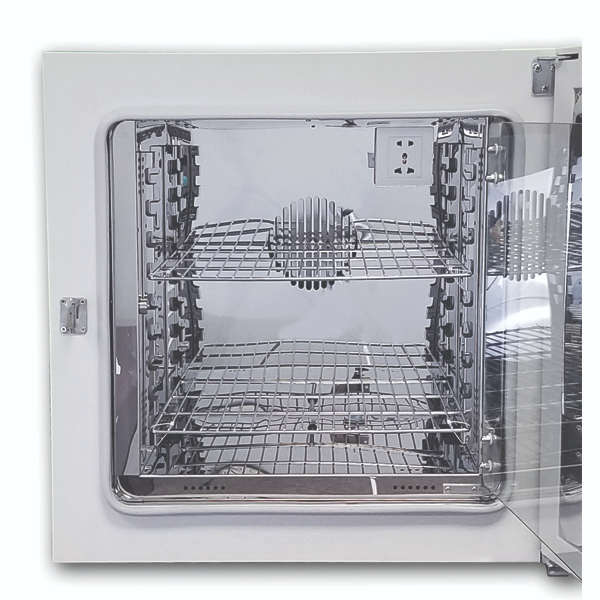

Unlike other laboratory incubators, the SureTemp series offers "Dual-Convection" technology, allowing users to choose between mechanical convection mode (for exceptional temperature uniformity) or gravity convection mode (for longer incubations where airborn contamination or drying of samples may be an issue). The heating elements are strategically located on multiple sides of the chamber and contents can be viewed with the separate inner glass door without disrupting the temperature environment.
- Precision temperature control up to 75°C
- Dual-Convection technology, excellent uniformity and recovery
- Includes SureCheck™ temperature logger
- Stainless steel chamber with internal power outlet
- Mechanical Convection: Incorporates optimally positioned heating elements in conjunction with an internal chamber fan to control the internal temperatue.
- Gravity Convection: Eliminates any airflow from the chamber, relying solely on the heating elements and gravity to control the internal temperature.
Specifications
Overview
Technical Data
-
Temperature Range:Ambient +5° to 75°C
-
Temperature Accuracy:±0.25°C
-
Temperature Uniformity:±0.25°C
-
Temperature Increments:0.1°C
-
Temperature Stability:0.1°C
-
Timer:1 min to 99 hours 59 min or continuous
-
Chamber:Stainless Steel (316)
-
Electrical:120V or 230V 50-60Hz
-
Power Consumption (40L):420W
-
Power Consumption (70L):520W
-
Power Consumption (130L):670W
-
Interior Dimensions (40L):13.7 x 13.7 x 13.7 in (35 x 35 x 35 cm)
-
Exterior Dimensions (40L):22.4 x 23.3 x 22.8 in (57 x 59.2 x 58 cm)
-
Weight (40L):95 lbs (42 kg)
-
Interior Dimensions (70L):17.7 x 13.7 x 17.7 in (45 x 35 x 45 cm)
-
Exterior Dimensions (70L):26.4 x 23.3 x 26.8 in (67 x 59.2 x 68 cm)
-
Weight (70L):136.5 lbs (62 kg)
-
Interior Dimensions (130L):21.7 x 17.7 x 21.7 in (55 x 45 x 55 cm)
-
Exterior Dimensions (130L):30.3 x 27.2 x 30.7 in (77 x 69.2 x 78 cm)
-
Weight (130L):154.4 lbs (70 kg)
Downloads
-
SureTemp™ Dual Convection Incubators BrochureDownload
