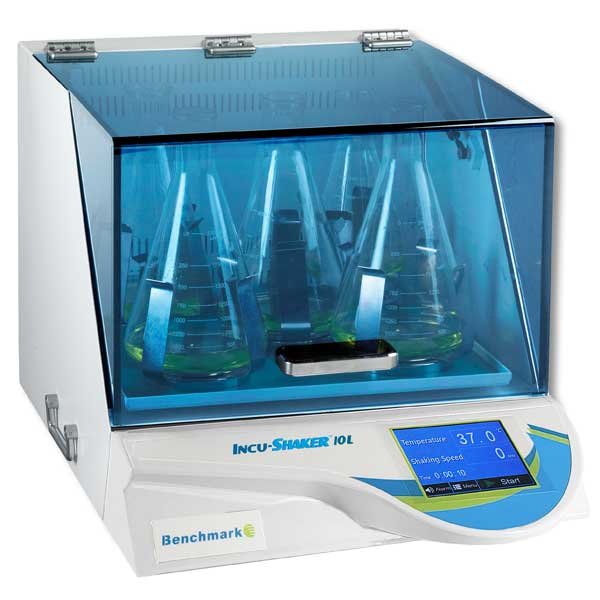

Benchmark Scientific - H2010-GROUP - Incu-Shaker™ Series 10L with Non-Slip Rubber Mat
Features
The Incu-Shaker™ series of shaking incubators provide digitally regulated temperature with precisely controlled, circular (orbital) mixing, optimized for the culture of a wide variety of cell types.
The Incu-Shaker Mini is the most compact shaking incubator in its class. Despite the remarkably smallfootprint, a large 11.5x9.5 in. work space accepts several platforms for use with flasks up to 1 liter, tubes and other common vessels. In addition, this model features a full color, TOUCH screen display forincreased control over all parameters.
With similar features to the Incu-Shaker Mini, the Incu-Shaker 10L and 10LR models are equipped with a large 18x18 inch platform for high capacity applications.

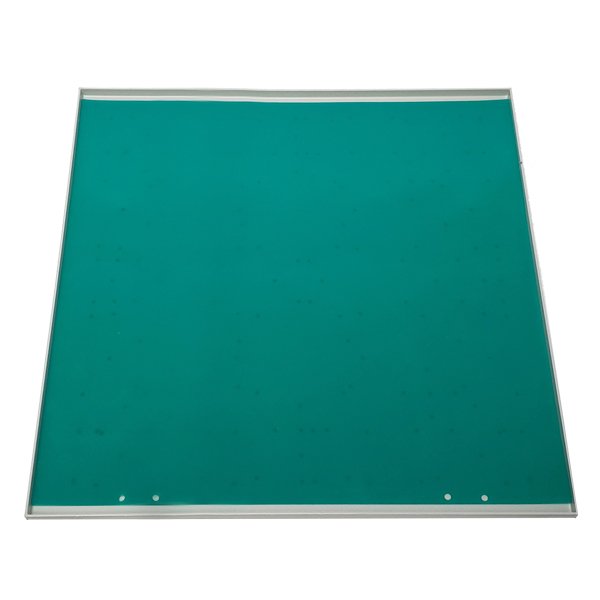

The standard platform (included with all three models) features a non-slip, rubber coated surface, ideal for tissue culture flasks, Petri dishes and staining trays. Convenient Magic Clamp™ platforms, flask clamps and tube racks are also available for use with Erlenmeyer flasks and test tubes. This unique, magnetic attachment method is the easiest way to instantly change between flask clamps of different sizes. Each clamp utilizes a powerful magnetic base to securely attach the clamp to the shaking platform without the use of screws, bolts or tools.
Temperature, shaking speed and run time are displayed on the large LED control panel located on the front ofthe unit (or Touch screen display on the mini model). The integral microprocessor includes a constant monitoring system that verifies and maintains accuracy through the duration of the program. Sophisticated over temperature and over-speed ensure long life, safety and sample integrity.
- Large platform 18x18, up to 5x2 L
- TOUCH screen control over time, speed and temperature
- Exceptional temperature uniformity
- Horizontal circular 19mm orbit for aeration & mixing
- Instantly change flask clamps with MAGic Clamp™ accessories
- Optional shelf for Petri dishes, microplates, etc.
Specifications
Overview
Technical Data
-
Temperature Range (Mini):Ambient +5 to 70°C (Increments of 0.1°C)
-
Temperature Range (10L):Ambient +5 to 60°C (Increments of 0.1°C)
-
Temperature Range (10LR):Ambient -12 to 60°C (Increments of 0.1°C)
-
Temperature Uniformity (Mini):±0.5 °C
-
Temperature Uniformity (10L/10LR):±1.0°C
-
Temperature Accuracy:±0.1 °C
-
Shaking Speed Range:30 to 300 rpm (Increments of 1 rpm)
-
Shaking Orbit:19 mm (3/4 in)
-
Platform Dimensions (Mini):9.5 x 11.5 in (23.5 x 29.2 cm)
-
Platform Dimensions (10L/10LR):17.8 x 17.8 in (45 x 45 cm)
-
Exterior Dimensions (Mini):11 x 18.8 x 13 in (28 x 48 x 33 cm)
-
Exterior Dimensions (10L):20 x 26 x 19 in (51 x 65 x 47 cm)
-
Exterior Dimensions (10LR):20 x 31 x 22 in (51 X 79 X 56 cm)
-
Weight (Mini):25 lbs (11.5 kg)
-
Weight (10L):120 lbs (55 kg)
-
Weight (10LR):170 lbs (78 kg)
-
Electrical:120 or 230V, 50-60Hz
Downloads
-
Incu-Shaker™ 10L with non-slip rubber mat BrochureDownload
