Benchmark Scientific - BT30 - Orbi-Blotter™ with Non-Slip Rubber Mat Platform (14x12")
Features

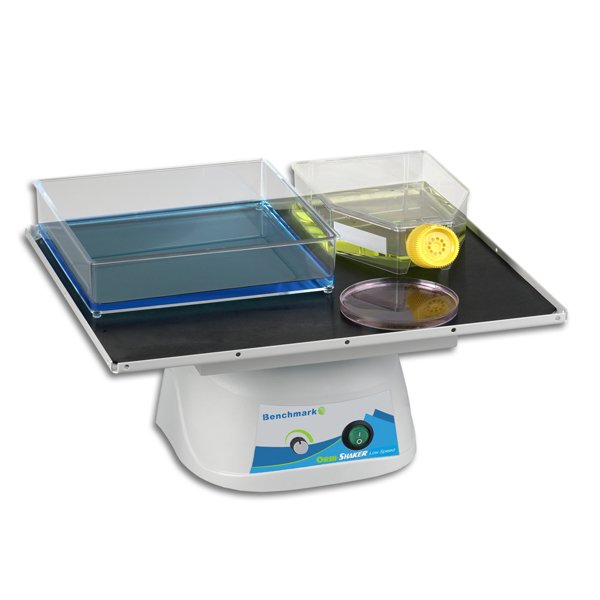

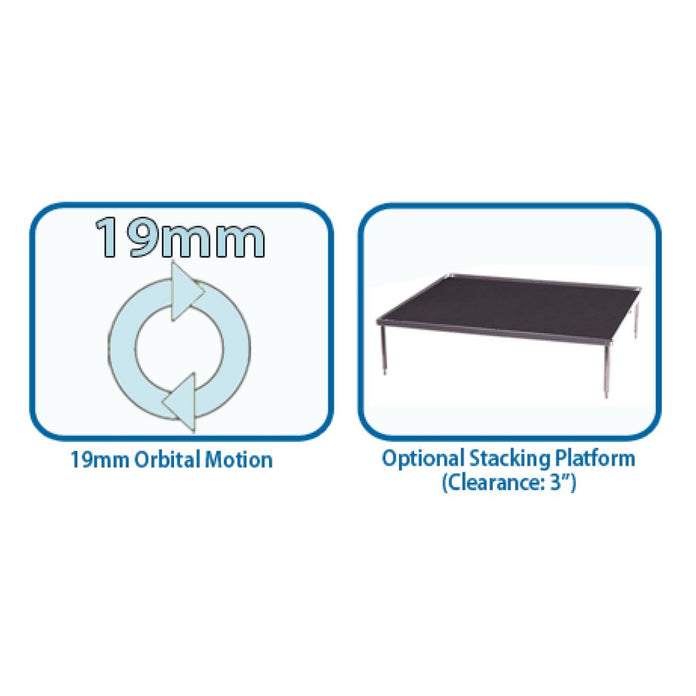

The Orbi-Blotter™ features a gentle orbital motion with speed control down to as little as 3 rpm, making it the ideal orbital choice for low speed applications, such as blotting, washing, staining/destaining, etc. A large 14x12 in. work surface is included along with a non-slip rubber mat for holding trays, dishes, plates and other flat vessels. An optional stacking platform can be purchased as an accessory, effectively doubling the usable work surface. The maintenance free, brushless motor is capable of loads up to 4kg and is safe for use in cold rooms and incubators.
- Gentle orbital motion for gel applications
- Horizontally circular 19mm orbit for aeration & mixing
- Large 14x12" work surface
- Variable speed control from 3 to 70 rpm
- Incubator and cold room safe
Specifications
Overview
-
Nominal Height:8" (20.32 cm)
-
Nominal Width:14" (35.56 cm)
-
Nominal Length:12" (30.48 cm)
Technical Data
-
Speed Range:Variable 3 to 70 rpm
-
Orbit:19 mm
-
Platform Size:14 x 12 in (35 x 30 cm)
-
Load Capacity:3 x 2L or 9 lbs (4 kg)
-
Ambient Operating Temp:+4°C to +50°C
-
Weight:7.5 lbs (3.4 kg)
-
Electrical:115 or 230V 50-60Hz
-
Power Consumption:50W
-
Warranty:2 years
Downloads
-
Orbi-Blotter™ with non slip rubber mat platform (14x12") BrochureDownload
