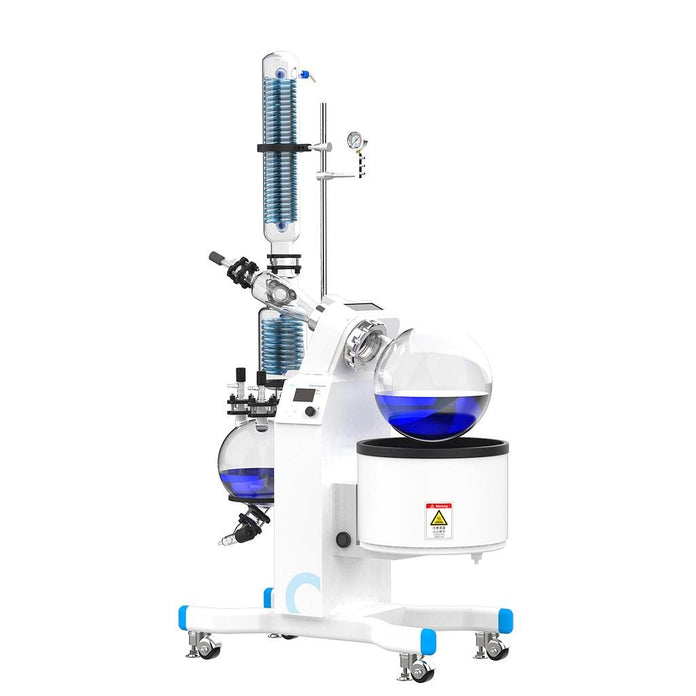

Being - BRE15050C - Rotary Evaporator

Being - BRE15050C - Rotary Evaporator

Being - BRE15050C - Rotary Evaporator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Rotary evaporators are mainly used for distillation or separation applications often used for medicinal chemistry, pharmaceutical, chromatography, and petrochemical fields.

Features

Rotovap systems work by increasing the rate of evaporation of the solvent through the following:



  • Simple design for one-handed operation manually or automatically.
  • A unique PTFE sealing system provides exceptional thermostability, minimizes corrosion, and helps to ensure day-in, day-out headache-free operation.
  • Our bath offers a dual heating mode for water and oil with overheat protection.
  • PID controller offers easy input of parameters and large LCD display for easy viewing.
  • Vacuum regulator available.



Technical Advantages



  • ETL Certified for Lab use.
  • Digital temperature and speed control with simple user interface.
  • Electric bath lift.
  • Teflon-coated bath for corrosion resistance.
  • High-efficiency drain port and injection valves.
  • Smaller footprint for improved workspace allocation.
  • Mobility with locking casters.
  • Shorter vapor path for faster evaporation and condensation.
  • Direct injection capability for continuous feeding of solution.
  • Continuous draining capability without the need to release vacuum or stop the system.
  • 2-year warranty on all mechanical parts (does not include glassware).
  • Programmable controller.
  • RPM set/display.
  • Temperature set/display.
  • Running status.

Specifications

Overview

  • Nominal Height:
    82.7" (210.06 cm)
  • Nominal Width:
    51.2" (130.05 cm)
  • Nominal Length:
    25.2" (64.01 cm)
  • Capacity:
    1.8

Rotary Evaporator Specifications

  • Size:
    50L
  • Rotation Speed:
    20-110 rpm
  • Evaporation Speed:
    Max 9.0L/h (Water) / 15L/h (Alcohol)
  • Ultimate Vacuum:
    8 mbar (-29.8 in. Hg)
  • Temperature Range:
    Ambient +5°C to 90°C (100°C special order without ETL certification)
  • Temperature Stability:
    ±2°C
  • Condensation Area:
    1.75 m²
  • Volume °F Collecting Bottle:
    20L
  • Water Bath Dimension (mm):
    Φ550 x H320
  • Lifting Height:
    260 mm
  • Power:
    4300W (90°C) / 5300W (100°C)
  • Barb Interface Size:
    M18
  • Suggested Environment Temperature:
    5°C - 35°C
  • Safety:
    Dry-run, over-temp shut-off, built-in circuit breaker
  • Glass Material:
    GG-17 high borosilicate
  • Maximum Load:
    25 kg
  • Electricity Application:
    220VAC 60Hz 1Ø
