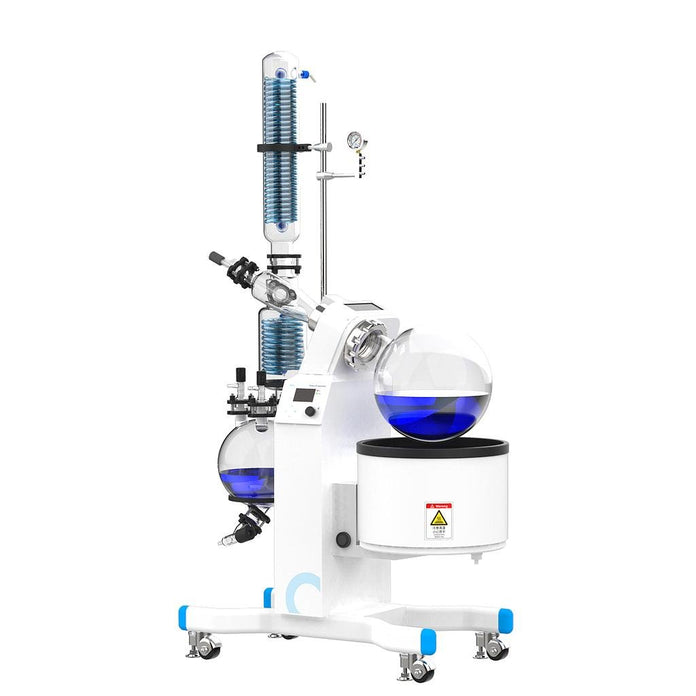

Being - BRE15010C - Rotary Evaporator
Features
Rotovap systems work by increasing the rate of evaporation of the solvent through the following:
- Simple design for one-handed operation manually or automatically.
- A unique PTFE sealing system provides exceptional thermostability, minimizes corrosion, and helps to ensure day-in, day-out headache-free operation.
- Our bath offers a dual heating mode for water and oil with overheat protection.
- PID controller offers easy input of parameters and large LCD display for easy viewing.
- Vacuum regulator available.
Technical Advantages
- ETL Certified for Lab use.
- Digital temperature and speed control with simple user interface.
- Electric bath lift.
- Teflon-coated bath for corrosion resistance.
- High-efficiency drain port and injection valves.
- Smaller footprint for improved workspace allocation.
- Mobility with locking casters.
- Shorter vapor path for faster evaporation and condensation.
- Direct injection capability for continuous feeding of solution.
- Continuous draining capability without the need to release vacuum or stop the system.
- 2-year warranty on all mechanical parts (does not include glassware).
- Programmable controller.
- RPM set/display.
- Temperature set/display.
- Running status.
Specifications
Overview
-
Nominal Height:74.8" (189.99 cm)
-
Nominal Width:47.2" (119.89 cm)
-
Nominal Length:22.4" (56.9 cm)
-
Capacity:0.4
Rotary Evaporator Specifications
-
Size:10L
-
Rotation Speed:20-130 rpm
-
Evaporation Speed:Max 3.5L/h (Water)
-
Ultimate Vacuum:8 mbar (-29.8 in. Hg)
-
Temperature Range:Ambient +5°C to 99°C
-
Temperature Stability:±1.5°C
-
Condensation Area:0.49 m²
-
Volume °F Collecting Bottle:5L
-
Water Bath Dimension (mm):Φ345 x H225
-
Lifting Height:190 mm
-
Power:3300W
-
Barb Interface Size:M18
-
Suggested Environment Temperature:5°C - 35°C
-
Safety:Dry-run, over-temp shut-off, built-in circuit breaker
-
Glass Material:GG-17 high borosilicate
-
Maximum Load:5 kg
-
Electricity Application:220VAC 60Hz 1Ø
