The BEING BRC Series cooling/heating recirculating chillers provide continuously reliable and stable laboratory temperature control for a wide range of applications like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma etching, laser etching, and jacketed reactors, to name a few.

Features

The BEING BRC Series cooling/heating recirculating chillers provide continuously reliable and stable laboratory temperature control for a wide range of applications like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma etching, laser etching, and jacketed reactors, to name a few.


Performance and Features


  • Designed so that test results are in line with international standards DIN 12880.

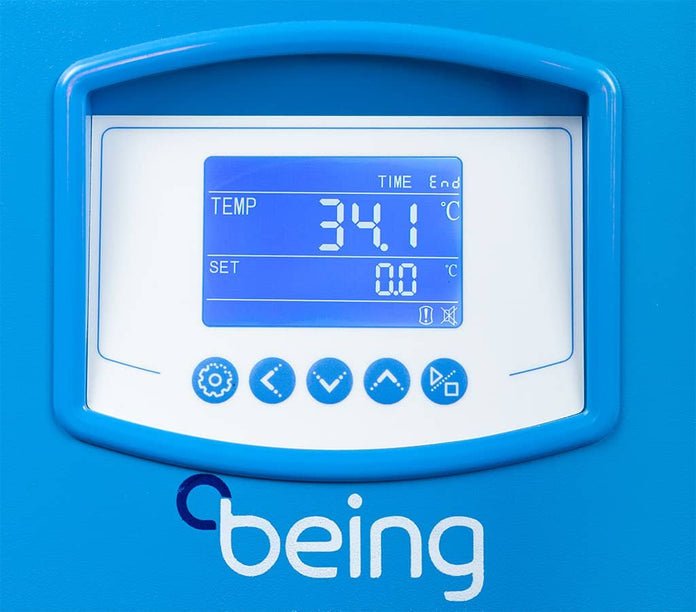

  • PID temperature controller with LCD screen provides accurate and reliable temperature control.
  • Automatic calibration function, be able to adapt to a variety of laboratory environments.

Convenience


  • A product line breadth to meet a variety of needs.
  • Wide range of options to meet a variety of experimental needs.
  • Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation.
  • Convenient design for easy maintenance.
  • Round curved inner angle is easy to clean.

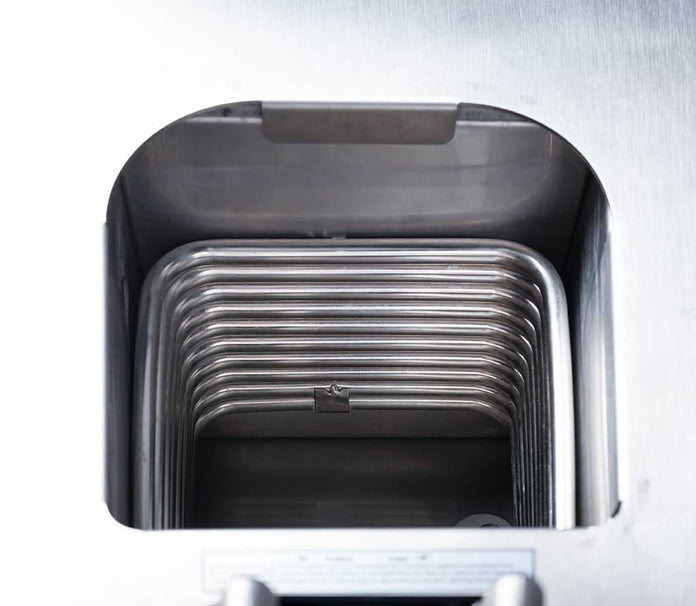

  • Inner chamber is made from corrosion-resistant mirror stainless steel.

Safety


  • Preset On/Off function.
  • Built-in power interruption protection function, automatic run after power interruption.
  • Independent over-temperature protection meets DIN 12880 International standard requirements.
  • Temperature deviation alarm.
  • Over-current protection alarm.

Specifications

Overview

  • Nominal Height:
    35.3" (89.66 cm)
  • Nominal Width:
    17.7" (44.96 cm)
  • Nominal Length:
    23.6" (59.94 cm)
  • Capacity:
    1.1

Cooling Features

  • Lowest Temp Without Load:
    -20°C
  • Temperature Range:
    -20°C to 20°C
  • Temperature Stability:
    ±2°C
  • Cooling Capacity (W) @20°C:
    2800
  • Cooling Capacity (W) @10°C:
    2500
  • Cooling Capacity (W) @0°C:
    2100
  • Cooling Capacity (W) @-10°C:
    1900
  • Cooling Capacity (W) @-20°C:
    900
  • Refrigerant:
    R410A

Pump

  • Pump Type:
    DC Magnetic Drive Vortex
  • Recirculating Pump Power:
    60W
  • Pump Flow Rate:
    17 L/min
  • Max. Pump Head:
    15 m
  • Pump Max. Pressure:
    22 psi (152 kPa)
  • Inlet/Outlet Tube OD (mm):
    Ø12 (DN15)

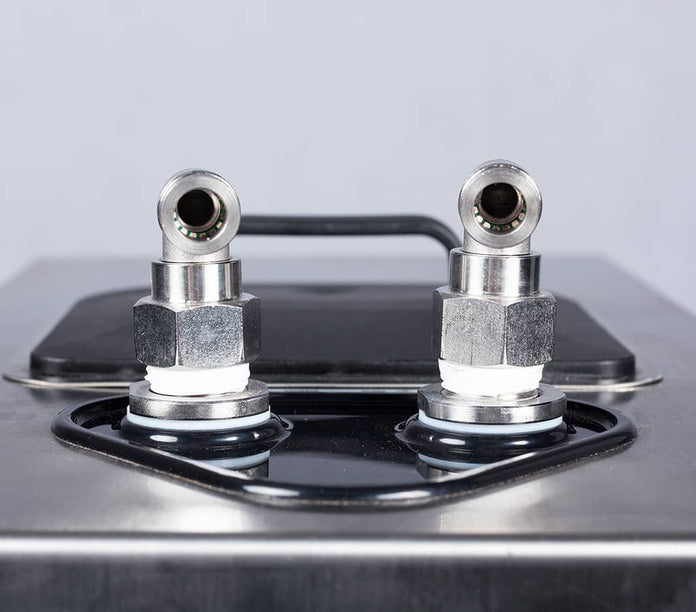

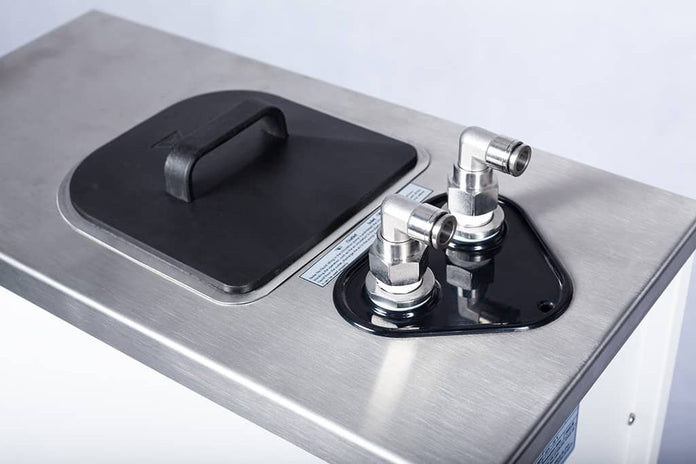

  • Inlet/Outlet Fitting Type:
    Push-to-Connect

Capacity - Electrical

  • Storage Tank:
    30L
  • Liquid:
    25L
  • Net Weight:
    76 kg
  • Feet / Caster:
    Locking Casters
  • Noise:
    ≤65 dB
  • Supported Rotavaps (Capacity x Units):
    10L x 2 or 20L x 1
  • Whole Unit Power:
    1600W
  • Electrical Plug Type:
    NEMA 6-15
  • Power Requirement:
    208-230VAC / 60Hz
  • Safety Features:
    Delay, leakage, overcurrent, overvoltage
