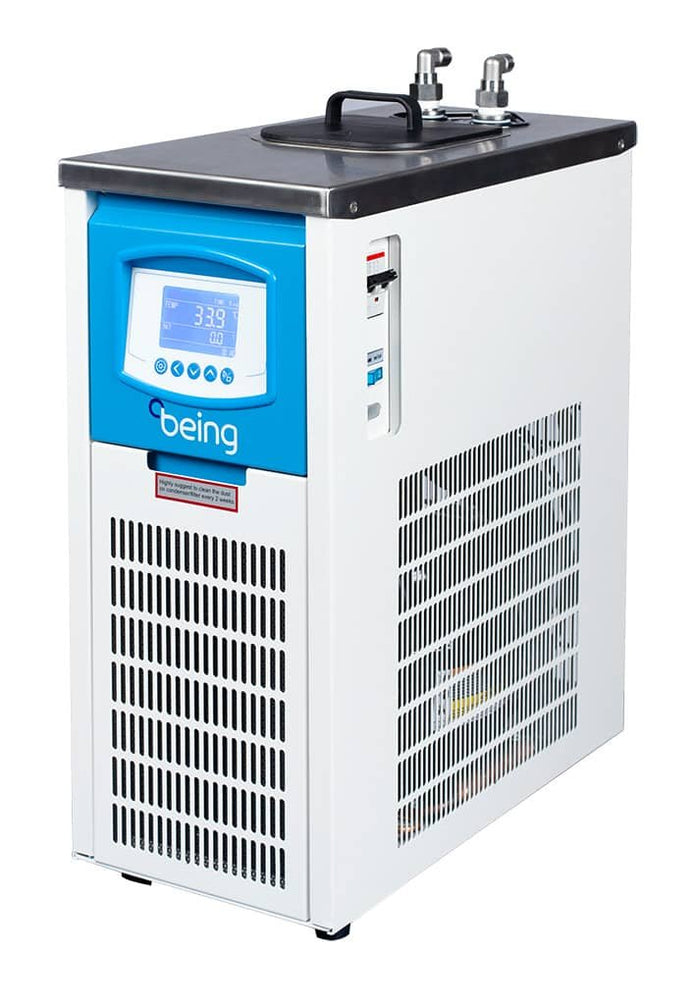

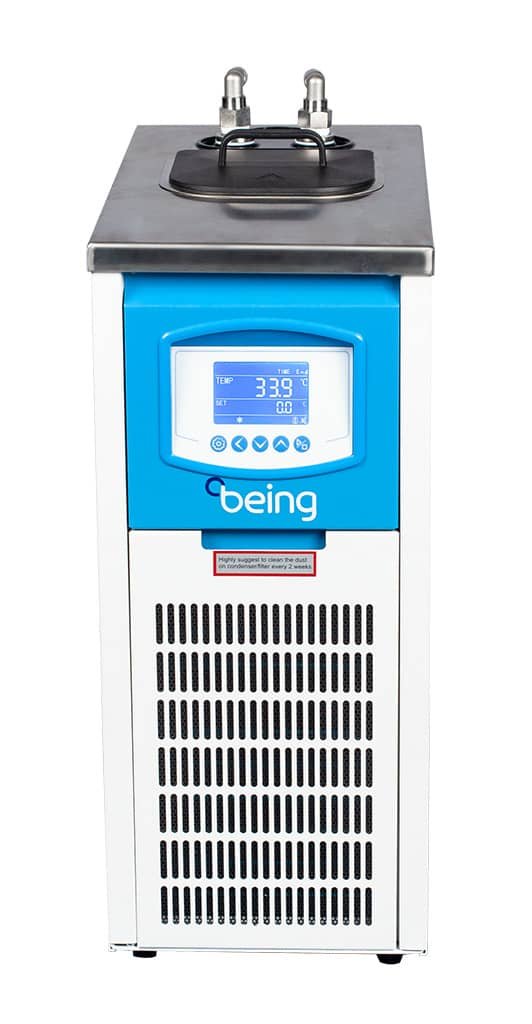

Being - BRC15103U - Recirculating Chiller

Features
The BEING BRC Series cooling/heating recirculating chillers provide continuously reliable and stable laboratory temperature control for a wide range of applications like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma etching, laser etching, and jacketed reactors, to name a few.
Performance and Features
- Designed so that test results are in line with international standards DIN 12880.

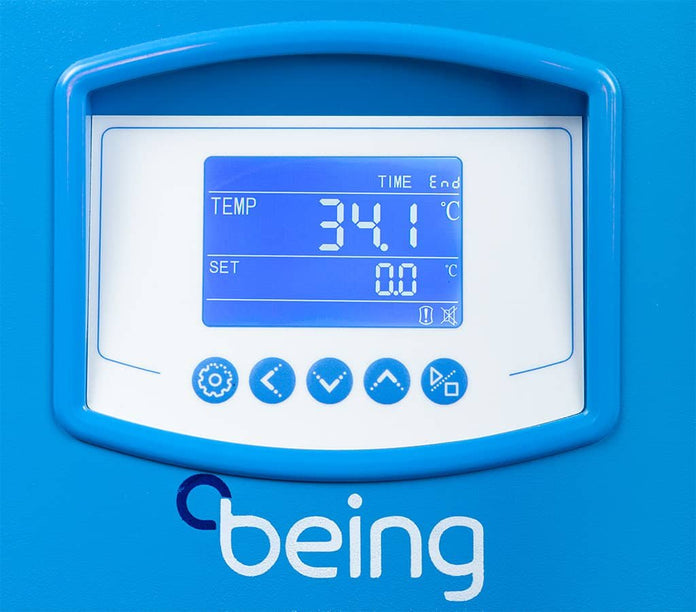

 - PID temperature controller with LCD screen provides accurate and reliable temperature control.
 - Automatic calibration function, be able to adapt to a variety of laboratory environments.

Convenience
- A product line breadth to meet a variety of needs.
 - Wide range of options to meet a variety of experimental needs.
 - Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation.
 - Convenient design for easy maintenance.
 - Round curved inner angle is easy to clean.

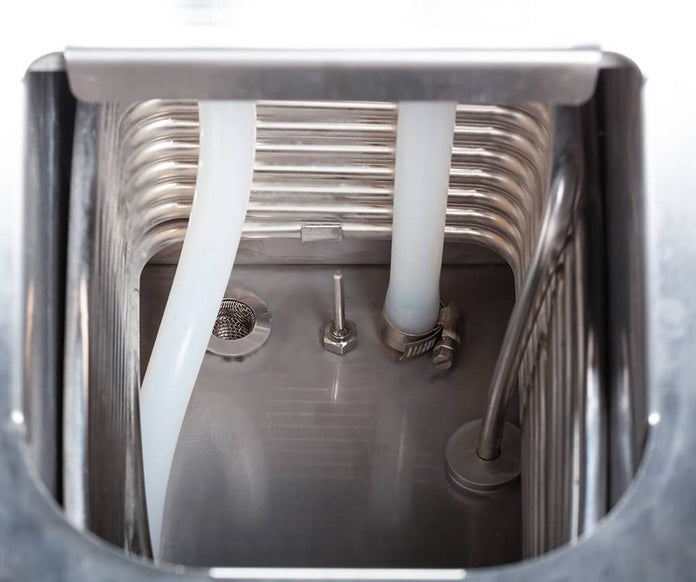

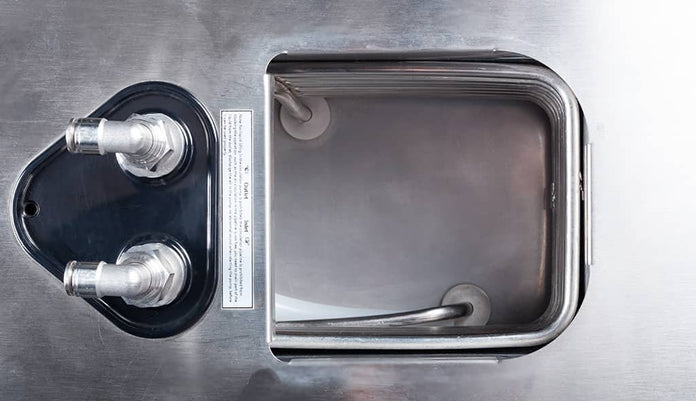

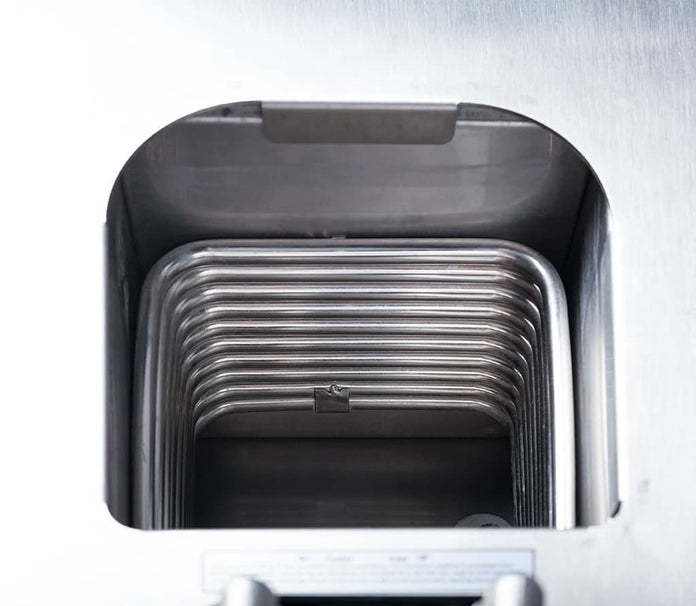

 - Inner chamber is made from corrosion-resistant mirror stainless steel.

Safety
- Preset On/Off function.
 - Built-in power interruption protection function, automatic run after power interruption.
 - Independent over-temperature protection meets DIN 12880 International standard requirements.
 - Temperature deviation alarm.
 - Over-current protection alarm.

Specifications
Overview
-
							Nominal Height:20.1" (51.05 cm)
 -
							Nominal Width:9.1" (23.11 cm)
 -
							Nominal Length:17.7" (44.96 cm)
 -
							Capacity:0.2

Cooling Features
-
									Lowest Temp Without Load:-20°C
 -
									Temperature Range:-20°C to 20°C
 -
									Temperature Stability:±2°C
 -
									Cooling Capacity (W) @20°C:580
 -
									Cooling Capacity (W) @10°C:530
 -
									Cooling Capacity (W) @0°C:470
 -
									Cooling Capacity (W) @-10°C:300
 -
									Cooling Capacity (W) @-20°C:100
 -
									Refrigerant:R404A

Pump
-
									Pump Type:DC Magnetic Drive Vortex
 -
									Recirculating Pump Power:30W
 -
									Pump Flow Rate:6 L/min
 -
									Max. Pump Head:9 m
 -
									Pump Max. Pressure:13 psi (90 kPa)
 -

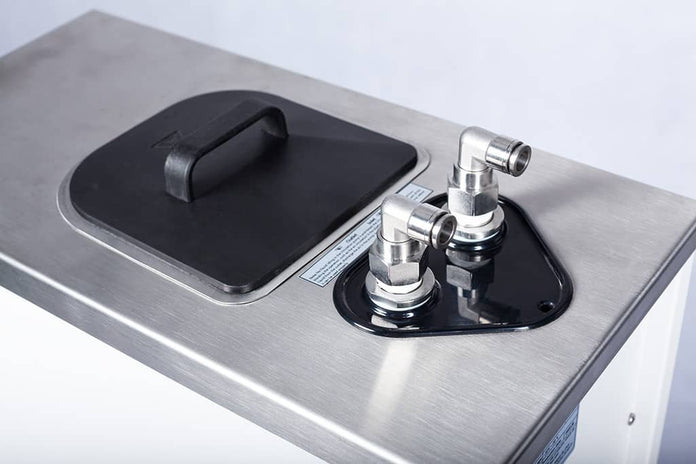

									Inlet/Outlet Tube OD (mm):Ø10 (DN15)
 -

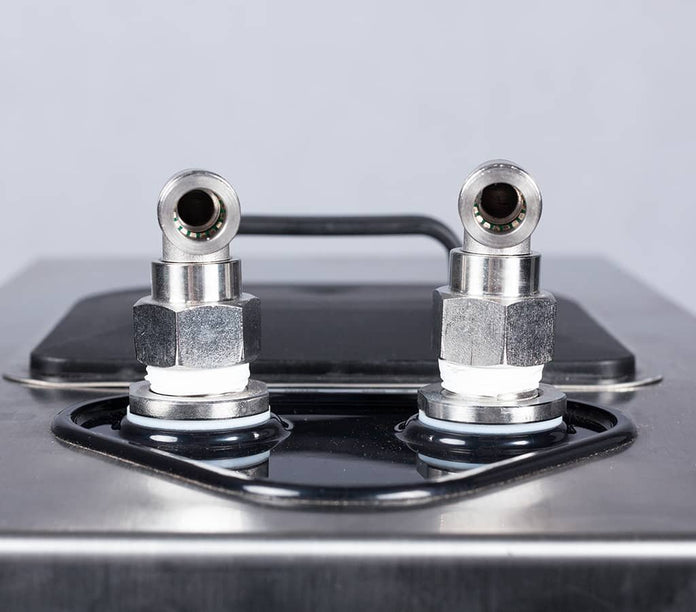

									Inlet/Outlet Fitting Type:Push-to-Connect

Capacity - Electrical
-
									Storage Tank:5L
 -
									Liquid:3.5L
 -
									Net Weight:32 kg
 -
									Feet / Caster:Feet
 -
									Noise:≤45 dB
 -
									Supported Rotavaps (Capacity x Units):2L x 1
 -
									Whole Unit Power:550W
 -
									Electrical Plug Type:NEMA 5-15
 -
									Power Requirement:115VAC / 60Hz
 -
									Safety Features:Delay, leakage, overcurrent, overvoltage
