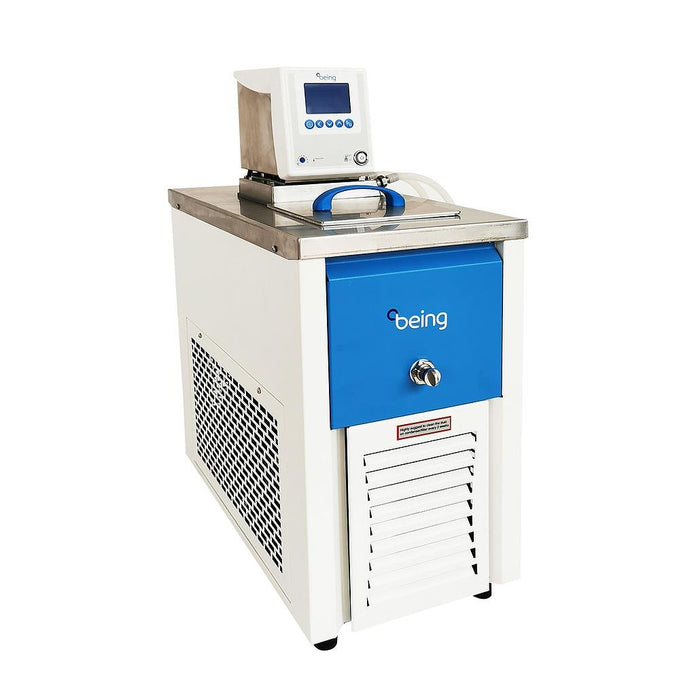

The BEING BPC Series cooling/heating circulators provide consistent, precise, and stable laboratory temperature control for cooling or heating through constantly circulating water. It can be used for supplying auxiliary heating for water baths. They are widely used in various applications like dissolution testing, and sample and reagent heating in colleges, industrial and mining enterprises, and scientific research departments.

Features

Performance and Features



  • PID temperature controller.
  • CFC-free R404A refrigerant and a double service valve to prevent leakage.
  • Programmable function with 7 programs and 9 steps in total.



Convenience

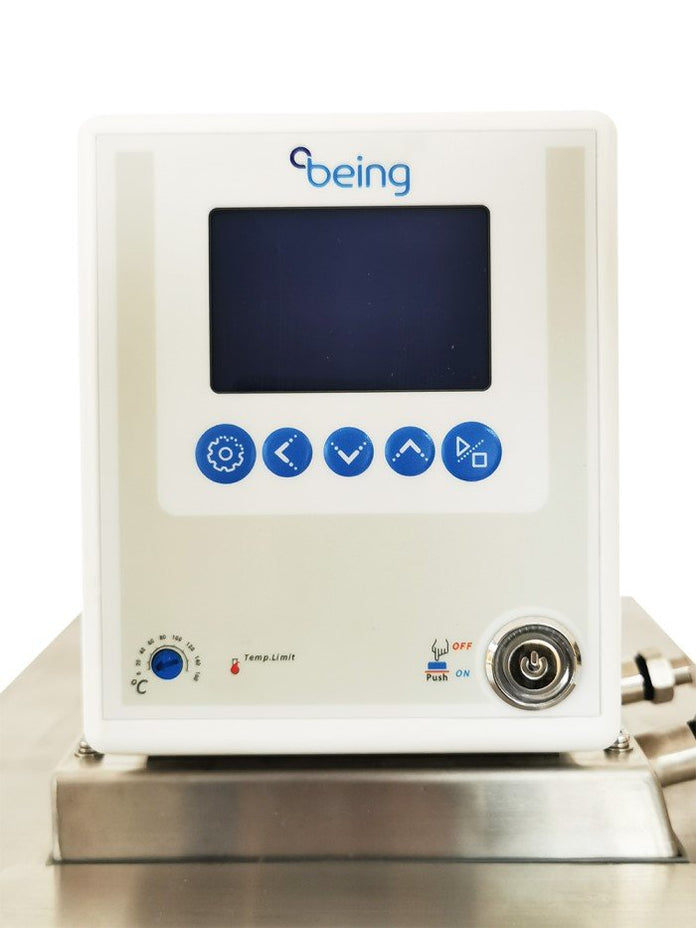

  • Bright LCD display with a quickly adjustable dial knob. (0.1℃ resolution)
  • Easy to set dual wait on/off adjustable timer (1 minute to 99 hr. 59 min.).
  • Maintenance-free operation with easy to clean surface.
  • Variety of accessories is available to meet application demands.
  • Both heater and bath chamber are made of corrosion-resistant, leakproof stainless steel.
  • Rounded cornered bath chamber and quick-release front grill allow for easy cleaning of the bath and condenser.
  • The standard stainless-steel bottom plate helps prevent direct contact by accessories and tubes to heating element and sensors.
  • Easy to access drain valve makes emptying of bathwater fast and easy for cleaning and moving.



Safety & Peace of Mind



  • Preset On/Off function.
  • Built-in power interruption protection function, automatic run after power interruption.
  • Independent over-temperature protection meets DIN 12880 International standard requirements.
  • Temperature deviation alarm.
  • Over-current protection alarm.

Specifications

Overview

  • Nominal Height:
    15" (38.1 cm)
  • Nominal Width:
    24.8" (62.99 cm)
  • Nominal Length:
    34.7" (88.14 cm)

Cooling Features

  • Lowest Temp Without Load:
    -20°C
  • Temperature Range:
    -20°C to 150°C
  • Best Operating Temp:
    ≤35°C
  • Relative Humidity:
    ≤65% RH
  • Temperature Stability:
    ±0.1°C
  • Cooling Capacity:
    560W (0°C), 160W (-20°C)
  • Heating Power Consumption:
    1000W
  • Refrigerant:
    R404A

Application Features

  • Temperature Sensor:
    pt100
  • Controller Display:
    LCD
  • Safety Protection:
    Compressor delay start, leakage circuit breaker, overcurrent / overvoltage protection
  • Total Power Consumption:
    1500W
  • Electrical Plug Type:
    NEMA 5-15
  • Power Requirement:
    120VAC ±10% / 60Hz
  • Max. Recirculating Pump Flow (L/min):
    8

Capacity

  • Storage Tank Capacity:
    13L
  • Noise:
    ≤60
  • Net Weight:
    35 kg
  • Liquid Tank Dimension:
    240 x 170/200 mm
  • Shipping Dimension:
    490 x 810 x 1060 mm
