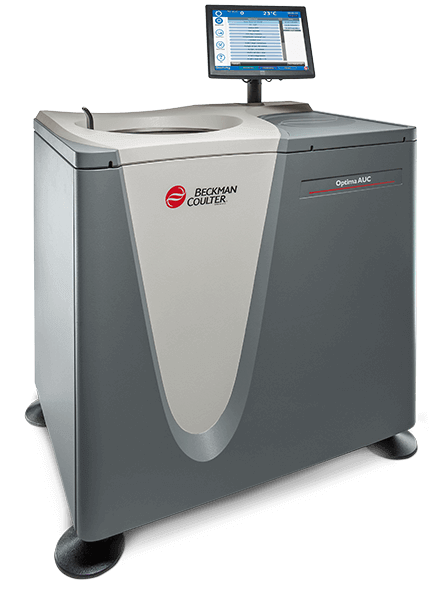

The Optima AUC is the base analytical ultracentrifuge.

Product Range

SKU Name
C00709 Beckman Coulter - C00709 - Optima AUC Absorbance Bundle with An 50 Ti Rotor Analytical Ultracentrifuge
C00710 Beckman Coulter - C00710 - Optima AUC Absorbance, Interference Bundle with An 50 Ti Rotor Analytical Ultracentrifuge
C00708 Beckman Coulter - C00708 - Optima AUC Absorbance, Interference Bundle with An 60 Ti Rotor Analytical Ultracentrifuge
C00707 Beckman Coulter - C00707 - Optima AUC Absorbance Bundle with An 60 Ti Rotor Analytical Ultracentrifuge
B86437 Beckman Coulter - B86437 - Optima AUC Absorbance, Interference Analytical Ultracentrifuge

Features

The Optima AUC can be fitted with both or either an absorbance module (ABS) to monitor biomolecules that have absorptive signatures between 170 and 800 nm, and a Rayleigh Interference module (INT) to monitor sedimentation differences between the sample and reference solutions. This allows for the characterization of particles made up of proteins and nucleic acids and those without absorptive properties such as carbohydrates and lipids. To learn more about analytical ultracentrifugation, visit the dedicated section.



Analytical ultracentrifugation (AUC) has long been one of the most versatile and accurate methods available to characterize proteins, macromolecules, nanoparticles and other heterogeneous solutions.

Currently, there is no other technique capable of providing the same range of information with a comparable level of precision and accuracy.

The Optima AUC instrument returns analytical ultracentrifugation to the forefront of analysis by offering powerful UV/vis and interference optics that help you get accurate, reproducible data.

A sophisticated yet easy-to-use analytical research tool, it enables precise characterization of macromolecules in solution, in their native state—from peptides to large viruses.



Benefits



Improved Data Quality

  • Higher radial resolution
  • Better signal-to-noise ratio than ProteomeLab instrument
  • 11x more vertical pixels for interference optics
  • Enables precise analysis of complex systems at up to 20 discrete wavelengths in minimal time



Analyzes an array of particles in native, matrix-free conditions, including

  • Proteins, peptides & antibodies
  • Lipid nanoparticles, liposomes & micelles
  • Extracellular vesicles & other nanoparticles
  • Viral vectors and virus-like particles
  • Polymers
  • Drug conjugates



Provides data to answer more critical questions than comparable techniques, including

  • Sedimentation and diffusion coefficients
  • Stoichiometry / oligomeric state
  • Heterogeneity
  • Reversible and irreversible interactions
  • Aggregation
  • Purity
  • Shape and diameter
  • Mass Formulation / stability studies



Easier to Use

  • User-friendly touchscreen displays intuitive progression of experimental design
  • Remote monitoring capabilities let you set up, monitor and extract data from virtually any location
  • Built-in toggle optics expedite workflow prep and reduce potential for damage to optical systems
  • Compatible with ProteomeLab cells and rotors

Watch the video

Specifications

Overview

  • Nominal Height:
    49.5" (125.73 cm)
  • Nominal Width:
    37" (93.98 cm)
  • Nominal Length:
    26.8" (68.07 cm)

Product Data

  • Maximum Speed:
    60,000 RPM
  • Acceleration:
    5-400 rpm/second (above 500 rpm), 400 max acceleration
  • Timed Run:
    1 to 999 hrs, 59 mins (including hold runs)
  • Drive Type Cooling:
    Quiet drive technology / air cooled
  • Temperature Range(s):
    7-40°C (1°C increments at > 25-30°C ambient temp), 4-40°C (1°C increments at <25°C ambient temp)
  • Zonal Capability:
    False
  • Vacuum and Pump:
    Below 5 microns (0.7 Pa)
  • Operating System(s):
    LINUX
  • Display:
    15.3" high-resolution color touchscreen
  • Material(s):
    Coated Polycarbonate, Polyurethane, Kydex Plastic, Polyurethane Painted Aluminum
  • Finish - Rotor Pad:
    Coated polycarbonate
  • Finish - Top & Front Surfaces:
    Polyurethane
  • Finish - Other Surfaces:
    Kydex plastic & polyurethane painted aluminum
  • Weight:
    508.5 kg (1121 lbs)
  • Clearances:
    5.1 cm (sides) & 15.2 cm (rear)
