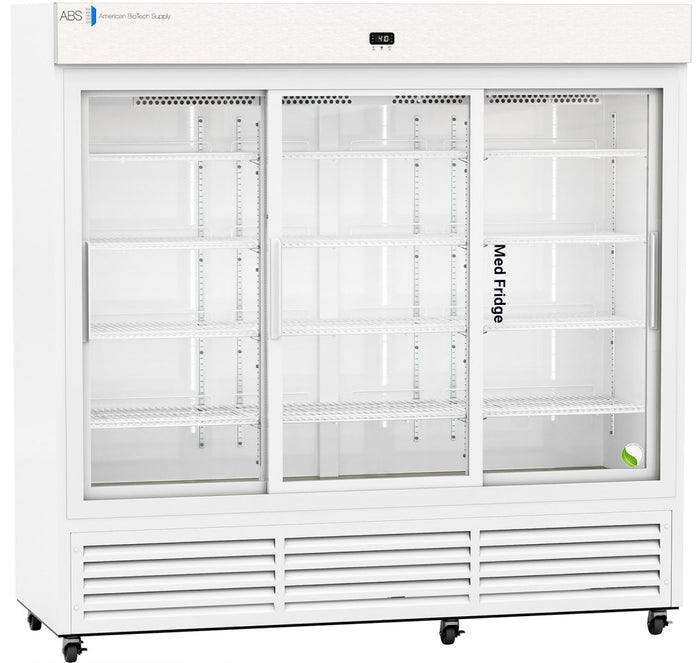

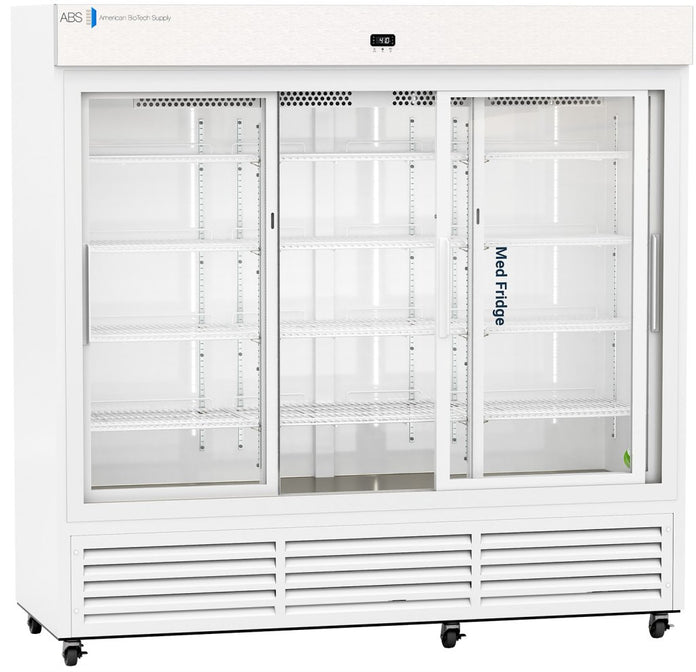

American Biotech Supply - PH-ABT-VS-S69G - 69 Cu. Ft. Standard Sliding Glass Door Pharmacy Refrigerator

American Biotech Supply - PH-ABT-VS-S69G - 69 Cu. Ft. Standard Sliding Glass Door Pharmacy Refrigerator
American Biotech Supply - PH-ABT-VS-S69G - 69 Cu. Ft. Standard Sliding Glass Door Pharmacy Refrigerator

American Biotech Supply - PH-ABT-VS-S69G - 69 Cu. Ft. Standard Sliding Glass Door Pharmacy Refrigerator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
These pharmacy refrigerators are designed for reliable and cost-effective cold storage.

Features

This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, glass door transparency, and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your clinical setting.

Specifications

Overview

  • Nominal Height:
    81.75" (207.65 cm)
  • Nominal Width:
    81" (205.74 cm)
  • Nominal Length:
    31.5" (80.01 cm)
  • Internal Height:
    48.75" (123.83 cm)
  • Internal Width:
    76" (193.04 cm)
  • Internal Length:
    24" (60.96 cm)
  • Capacity:
    69

General Description and Application

  • Door:
    Three (3) sliding glass doors, self closing
  • Shelves:
    Twelve (12) adjustable shelves (adjustable in 1/2" increments)
  • Mounting and Installation:
    Swivel casters - locking front casters
  • Interior Lighting:
    LED interior lights are safety shielded and switch controlled
  • Airflow Management:
    Non-applicable
  • External Probe Access:
    3/4" probe access port on rear wall
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high-density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Five (5) year compressor warranty
  • Product Weight (lbs):
    618
  • Shipping Weight (lbs):
    741
  • Rated Amperage:
    3 Amps
  • Power Plug/power Cord:
    NEMA 5-15P plug
  • Facility Electrical Requirement:
    NEMA 5-15P plug, vaccine storage power cord warning label
  • Agency Listing and Certification:
    ETL, C-ETL listed certified to UL471 standard. Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators

Performance

  • Maximum Temperature Variation (Cabinet Air):
    +/- 3.0°C
  • Stability (Simulator Ballast):
    +/- 0.5°C
  • Adjustable Temperature Range:
    36°F to 46°F (2°C to 8°C), Calibrated using a NIST traceable device, certificate included
  • Energy Consumption (KWh/day):
    < 3.2 KWh/day *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
  • Average Heat Rejection (BTU/hr):
    < 760 BTU/h
  • Noise Pressure Level (dBA):
    40 dBA or less installed
  • Pull Down Time to Nominal Operating Temp:
    < 60 min (empty)
  • Performance Note:
    Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings.

Refrigeration System

  • Compressor:
    Hermetic
  • Refrigerant:
    EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
  • Condenser:
    Tube and grid, high efficiency fan forced air
  • Evaporator:
    Fin and tube, high efficiency fan forced air
  • Defrost:
    Cycle Defrost
