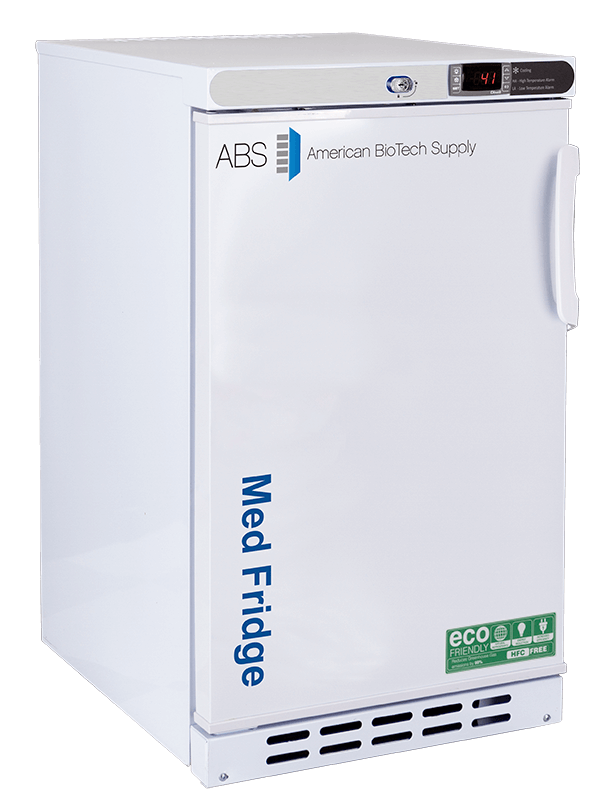

American Biotech Supply - PH-ABT-HC-UCBI-0204-LH - 2.5 Cu. Ft. Capacity Premier Pharmacy/Vaccine Undercounter Refrigerator Built-In Left Hinged

Features
The Premier Pharmacy Freestanding Undercounter Refrigerators feature a microprocessor temperature controller and display, which allows for precise temperature control, verification and recovery versus mechanical style thermostats.
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Four adjustable shelves (two large, two small) with guard rail on back to prevent product from being pushed against the back wall
- Back wall evaporator cover
- Vaccine storage power cord warning label
- Forced draft circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- LED light
- Probe access port (0.4")
- Powder coat exterior
- High density urethane foam cabinet and door insulation
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
- Pyxis®, Omnicell® and AcuDose RX® compatible
Temp Controller
- Microprocessor temperature controller
- Digital temperature display
- Adjustable operating temperature range: 36°F - 46°F (2°C - 8°C)
- Refrigerator/Freezer freestanding thermometer with 3 year certificate of calibration, with min/max memory, °F/°C switchable
- Audible and visual high and low temperature alarms
- 2 probes; 1 in air and 1 in glycol bottle
- Remote alarm contacts
Specifications
Overview
-
Nominal Height:30.75" (78.11 cm)
-
Nominal Width:17.75" (45.09 cm)
-
Nominal Length:19.5" (49.53 cm)
-
Internal Height:23.25" (59.06 cm)
-
Internal Width:14" (35.56 cm)
-
Internal Length:13.25" (33.66 cm)
-
Capacity:2.5
Technical Data
-
Defrost:Cycle
-
Door:1 Solid LH
-
Int Door:0
-
Shelves:4 Adj
-
Refrigerant:R600a
-
H.P.:0.12
-
Amps:.90
-
Weight:69 lbs.
Drawings
-
PH-ABT-HC-UCBI-0204-LH Ext CutsheetVisit Link
-
PH-ABT-HC-UCBI-0204-LH Int CutsheetVisit Link
Useful Links
-
PH-ABT-HC-UCBI-0204-LH SpecSheetVisit Link
