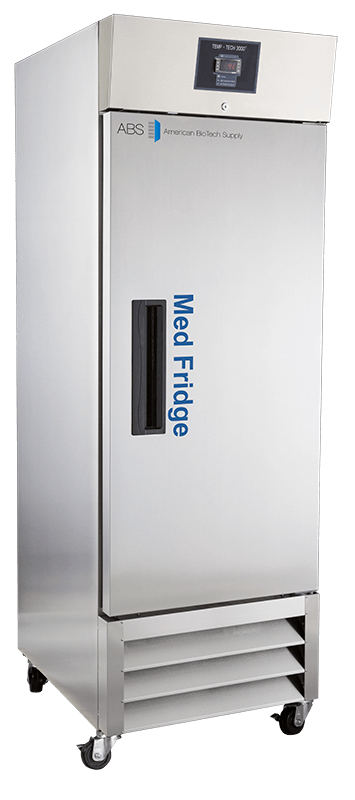

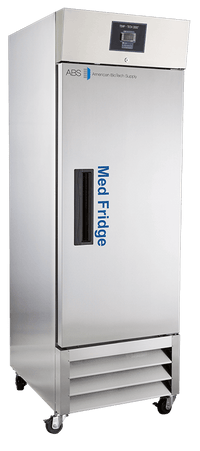

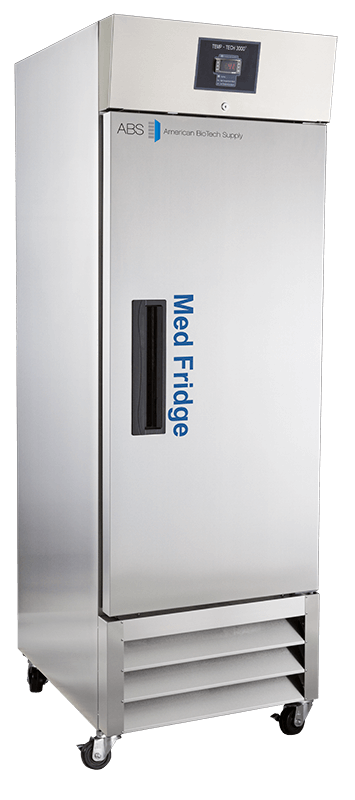

American Biotech Supply - PH-ABT-HC-SSP-23 - 23 Cu. Ft. Pharmacy Stainless Steel Pharmacy Refrigerator

Product Range
| SKU | Name |
|---|---|
| PH-ABT-HC-SSP-23FA3 | American Biotech Supply - PH-ABT-HC-SSP-23FA3 - 23 Cu. Ft. Premier Stainless Steel Auto Defrost Pharmacy Freezer (-22°F Operation) |
| PH-ABT-HC-SSP-23FA | American Biotech Supply - PH-ABT-HC-SSP-23FA - 23 Cu. Ft. Premier Stainless Steel Auto Defrost Pharmacy Freezer (-4°F Operation) |
| PH-ABT-HC-SSP-23G | American Biotech Supply - PH-ABT-HC-SSP-23G - 23 Cu. Ft. Glass Door Stainless Steel Pharmacy Refrigerator |
Features
Critical samples and supplies are security backed with an extensive package of temperature security and alarm features.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three adjustable shelves
- Vaccine storage power cord warning label
- Forced draft air circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Integrated door handle
- Swivel casters (adds 6.5" to height)
- Interior light
- HFC-free refrigerant (R290), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
Temp Controller

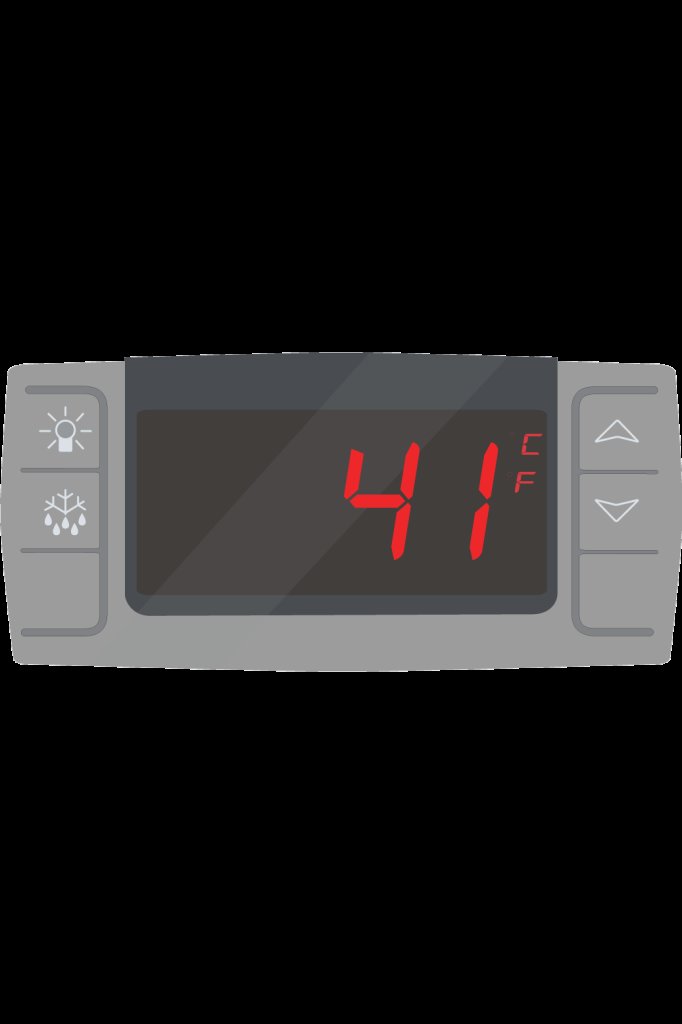

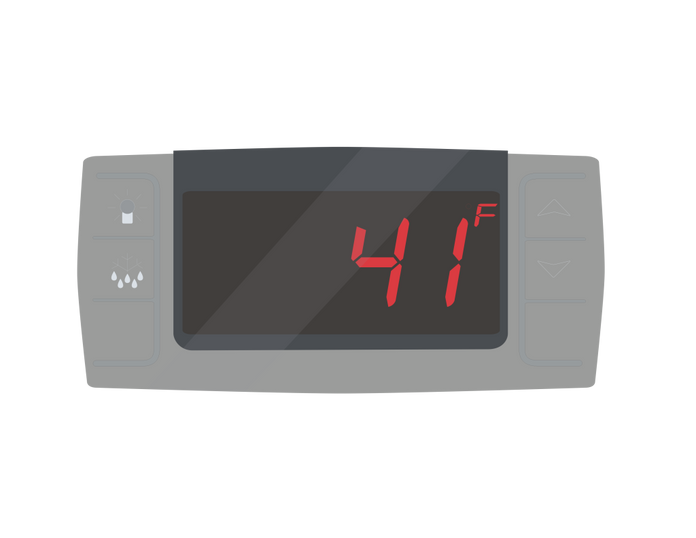

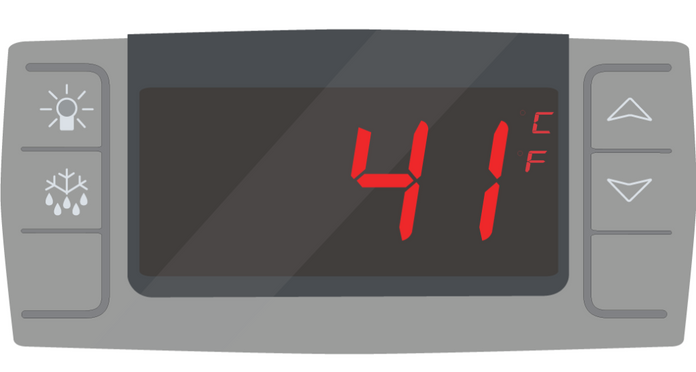

- Microprocessor temperature controller
- Digital temperature display with battery back-up to support temperature monitoring and alarms
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in sample bottle
- Adjustable operating temperature range: 36°F to 46°F (2°C to 8°C)
- Calibrated using a NIST traceable device, certificate included
Specifications
Overview
-
Nominal Height:83.88" (213.06 cm)
-
Nominal Width:26.75" (67.95 cm)
-
Nominal Length:34.88" (88.6 cm)
-
Internal Height:52.5" (133.35 cm)
-
Internal Width:22" (55.88 cm)
-
Internal Length:26.13" (66.37 cm)
-
Capacity:23
Technical Data
-
Defrost:Cycle
-
Door:2 Solid
-
Int Door:0
-
Shelves:3 Adj
-
Refrigerant:R290
-
H.P.:0.2
-
Amps:3
-
Weight:255 lbs.
-
Shipping Weight:295 lbs.
Drawings
-
PH-ABT-HC-SSP-23 Ext CutsheetVisit Link
-
PH-ABT-HC-SSP-23 Int CutsheetVisit Link
Useful Links
-
PH-ABT-HC-SSP-23 SpecSheetVisit Link
