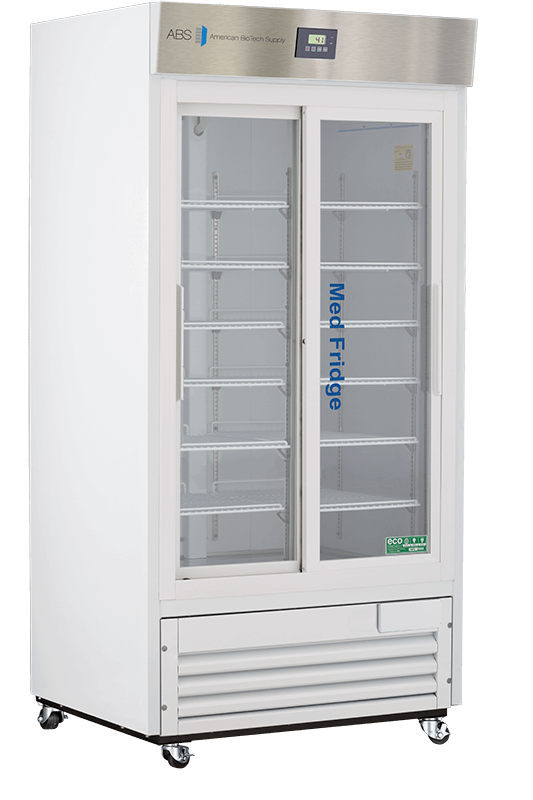

American Biotech Supply - PH-ABT-HC-33G - 33 Cu. Ft. Pharmacy Glass Door Refrigerator

American Biotech Supply - PH-ABT-HC-33G - 33 Cu. Ft. Pharmacy Glass Door Refrigerator

American Biotech Supply - PH-ABT-HC-33G - 33 Cu. Ft. Pharmacy Glass Door Refrigerator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Pharmacy Premier Series Refrigerators are Large Capacity Refrigerator Units for High Volume Pharmacies. Standard features include a microprocessor temperature controller and display for superior temperature control, verification, and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. An extensive package of audible and visual alarms is provided to protect critical samples and vaccines.

Features

The temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller for additional product security.



The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C to -15°C) in freezers.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details



  • Microprocessor Temperature Controller
  • Sensor error alarm
  • Power failure alarm
  • Resettable 1-point Min/Max History
  • Remote alarm contacts
  • Alarm validation (audible, visual, and remote alarm)
  • Alarm mute with ring back
  • 12 total shelves, 8 adjustable plus 4 additional
  • Vaccine storage power cord warning label
  • Forced draft air circulation
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • LED interior lights are safety shielded and switch controlled
  • Swivel casters (0.5")
  • CFC-free refrigerant (R134a), foam insulation and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty



Temp Controller



  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: 36°F to 46°F (2°C to 8°C)
  • Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory. F/C switchable, field installable, and visual & audible temp alarm
  • Standard Digital Temperature Display and Alarm Module with battery back-up to support temperature monitoring and alarms
  • Sample simulated digital temperature display; 1° Resolution
  • Adjustable temperature display in Celsius or Fahrenheit
  • Audible and visual high/low temperature alarms
  • 2 probes; 1 in air and 1 in sample bottle

Specifications

Overview

  • Nominal Height:
    81.75" (207.65 cm)
  • Nominal Width:
    39.63" (100.66 cm)
  • Nominal Length:
    33.25" (84.46 cm)
  • Internal Height:
    52.5" (133.35 cm)
  • Internal Width:
    34.25" (87.0 cm)
  • Internal Length:
    23.75" (60.33 cm)
  • Capacity:
    33

Technical Data

  • Defrost:
    Cycle
  • Door:
    2 Glass (Sliding)
  • Int Door:
    0
  • Shelves:
    12 Adj
  • Refrigerant:
    R290
  • H.P.:
    0.25
  • Amps:
    4.5
  • Weight:
    369 lbs.
  • Shipping Weight:
    419 lbs.

Drawings
